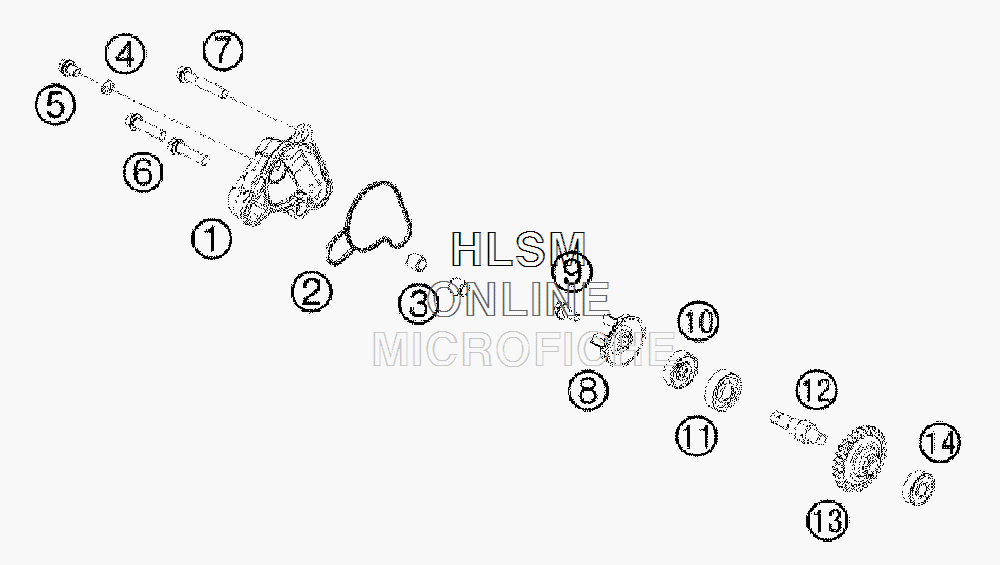

WATER PUMP для Ktm 50 SX Junior LC - 2009 года выпуска
-
№АртикулНазвание
-
145235052000 WATERPUMP COVERWATERPUMP COVER
-
245235053000 WATER PUMP COVER GASKETWATER PUMP COVER GASKET
-
349030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
40603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
50025060086 HH COLLAR SCREW M6X8HH COLLAR SCREW M6X8
-
60025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
70025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
854835005000 WATER PUMP WHEELWATER PUMP WHEEL
-
90025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
100760082472 SHAFT SEAL RING 8X24X7 A DUOSHAFT SEAL RING 8X24X7 A DUO
-
110625060001 BALL BEARING 6000/C3BALL BEARING 6000/C3
-
1250335054050 WATER PUMP SHAFTWATER PUMP SHAFT
-
1345235054028 DRIVE WHEELDRIVE WHEEL
-
140625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
