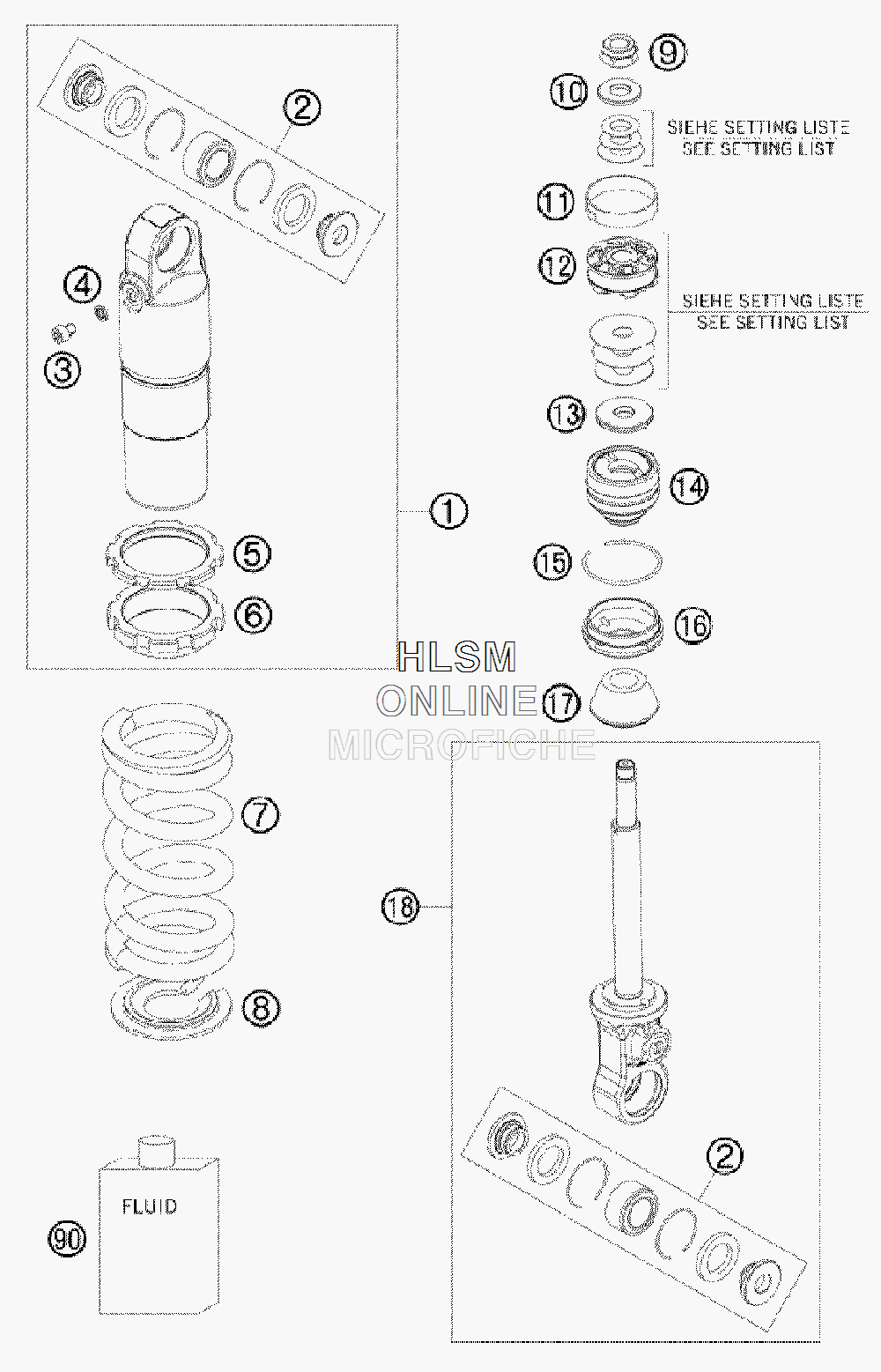

SHOCK ABSORBER DISASSEMBLED для Ktm 50 SX Junior LC - 2009 года выпуска
-
№АртикулНазвание
-
136120784S MONOSHOCK TOP PART L140 CPL.MONOSHOCK TOP PART L140 CPL.
-
2R306 REPAIR KIT BEARINGS 50SX JUN07REPAIR KIT BEARINGS 50SX JUN07
-
336120785 SCREW M5 C.K. RVSSCREW M5 C.K. RVS
-
436120782 SEAL D5,21XD8,38X1,22SEAL D5,21XD8,38X1,22
-
536120015 COUNTERNUTCOUNTERNUT
-
636120418 ADJUSTING NUTADJUSTING NUT
-
793010178S SPRING 75N/MM 75-130 130MM OR.SPRING 75N/MM 75-130 130MM OR.
-
793010179S SPRING 65N/MM 65-130 130MM OR.SPRING 65N/MM 65-130 130MM OR.
-
793010180S SPRING 85N/MM 85-130 130MM OR.SPRING 85N/MM 85-130 130MM OR.
-
836120461 SPRING RETAINER D=39SPRING RETAINER D=39
-
936120052 PISTON ROD NUT M10X1PISTON ROD NUT M10X1
-
1036120604 SHIM D10XD22X2,5SHIM D10XD22X2,5
-
1136120040 PISTON RING 8X1X108,3PISTON RING 8X1X108,3
-
1236120071 PISTON 6+6XD5.5/3.5PISTON 6+6XD5.5/3.5
-
1314360065 REBOUND DISC H=4 D=28,5REBOUND DISC H=4 D=28,5
-
1436120787S ADAPTOR 36MM H26,6 CPL.ADAPTOR 36MM H26,6 CPL.
-
1540540015 CIRCLIP 38X1,5CIRCLIP 38X1,5
-
1636120780 RESERVOIR CAP D=36 H=9,5RESERVOIR CAP D=36 H=9,5
-
1736120427 BUMP RUBBER WP65 L=20BUMP RUBBER WP65 L=20
-
1836120777S1 MONOSH. BOTTOM PART L86 CPL.MONOSH. BOTTOM PART L86 CPL.
-
9050180342S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
