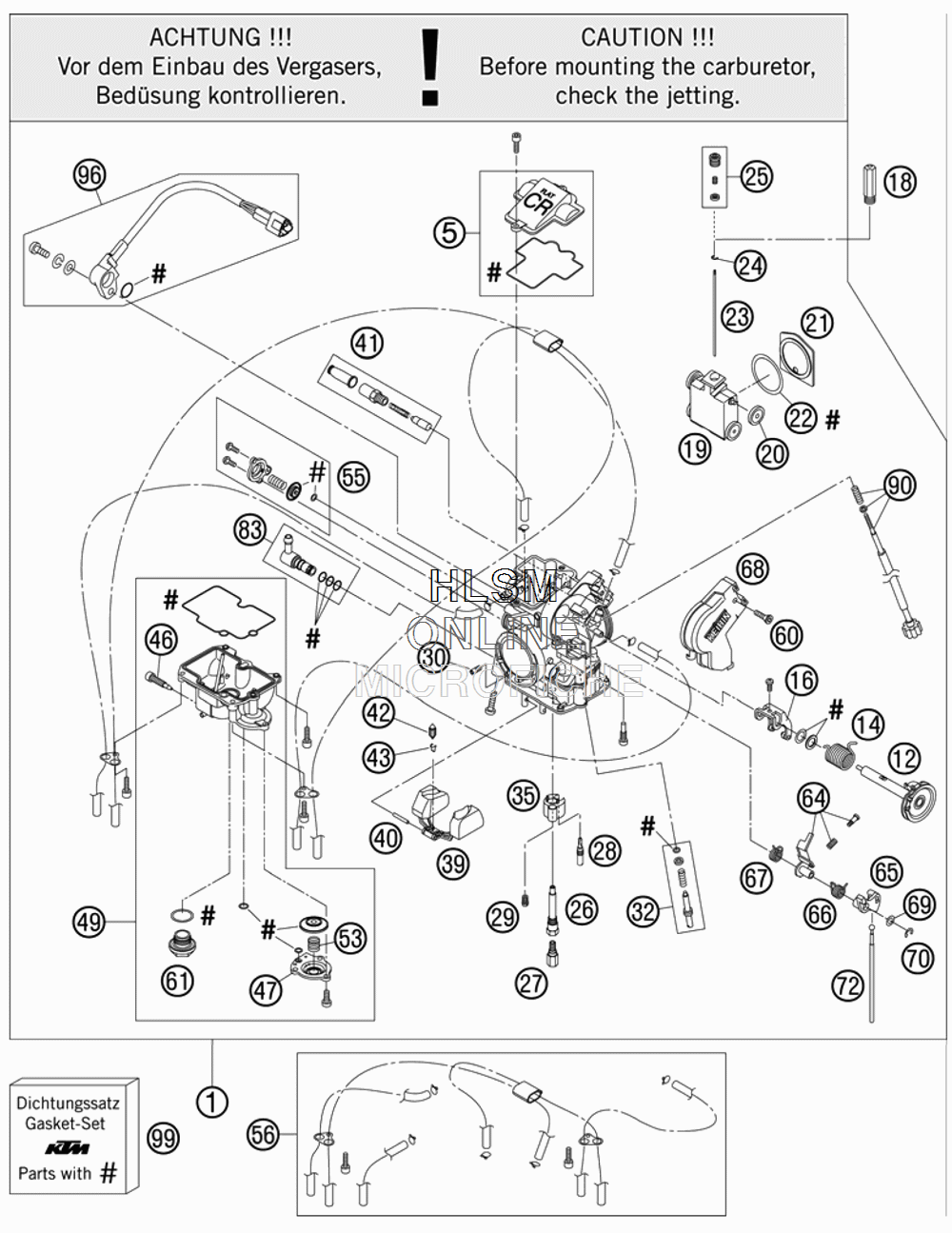

CARBURATOR для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска

№

Артикул

Название
1

76231001000 CARBURETOR FCR-MX4100BTPS

CARBURETOR FCR-MX4100BTPS

0 ₽
5

57331027044 CARBURETOR COVER WITH GASKET

CARBURETOR COVER WITH GASKET

10 610 ₽
12

57331046100 THROTTLE SHAFT CPL.

THROTTLE SHAFT CPL.

29 290 ₽
14

57331046050 COIL SPRING THROTTLE SHAFT

COIL SPRING THROTTLE SHAFT

2 100 ₽
16

76231035051 LINK ARM THROTTLE VALVE CPL.

LINK ARM THROTTLE VALVE CPL.

30 000 ₽
18

59031029010 SLIDE STOP

SLIDE STOP

3 830 ₽
19

76231035000 THROTTLE VALVE CPL.

THROTTLE VALVE CPL.

0 ₽
20

59031035050 BUSHING THROTTLE VALVE

BUSHING THROTTLE VALVE

2 860 ₽
21

57331035153 GASKET PLATE THROTTLE VALVE

GASKET PLATE THROTTLE VALVE

51 860 ₽
22

59031035052 GASKET WASHER THROTTLE VALVE

GASKET WASHER THROTTLE VALVE

4 850 ₽
23

57331034100 JET NEEDLE KEIHIN OBEKP

JET NEEDLE KEIHIN OBEKP

7 160 ₽
23

57331034200 JET NEEDLE KEIHIN OBEKQ

JET NEEDLE KEIHIN OBEKQ

9 330 ₽
23

57331034300 JET NEEDLE KEIHIN OBEKR

JET NEEDLE KEIHIN OBEKR

8 500 ₽
23

57331034400 JET NEEDLE KEIHIN OBEKS

JET NEEDLE KEIHIN OBEKS

9 330 ₽
23

57331034500 JET NEEDLE KEIHIN OBEKT

JET NEEDLE KEIHIN OBEKT

7 630 ₽
23

59031023200 JET NEEDLE KEIHIN OBDVT

JET NEEDLE KEIHIN OBDVT

7 860 ₽
24

59031029000 BAR CLIP

BAR CLIP

1 110 ₽
25

57331032000 NEEDLE SET SCREW CPL.

NEEDLE SET SCREW CPL.

10 840 ₽
26

59031121000 NEEDLE JET FCR-MX

NEEDLE JET FCR-MX

8 820 ₽
27

54531623162 MAIN JET 162 KEIHIN

MAIN JET 162 KEIHIN

3 420 ₽
27

54531623165 MAIN JET 165 KEIHIN

MAIN JET 165 KEIHIN

3 480 ₽
27

54531623168 MAIN JET 168 KEIHIN

MAIN JET 168 KEIHIN

3 540 ₽
27

54531623170 MAIN JET 170 KEIHIN

MAIN JET 170 KEIHIN

3 450 ₽
27

54531623172 MAIN JET 172 KEIHIN

MAIN JET 172 KEIHIN

3 450 ₽
27

54531623175 MAIN JET 175 KEIHIN

MAIN JET 175 KEIHIN

3 450 ₽
27

54531623178 MAIN JET 178 KEIHIN

MAIN JET 178 KEIHIN

3 660 ₽
27

54531623180 MAIN JET 180 KEIHIN

MAIN JET 180 KEIHIN

3 300 ₽
28

54531607042 IDLE JET 42 KEIHIN

IDLE JET 42 KEIHIN

3 300 ₽
28

54531607045 IDLE JET 45 KEIHIN

IDLE JET 45 KEIHIN

3 240 ₽
28

54531607048 IDLE JET 48 KEIHIN

IDLE JET 48 KEIHIN

3 130 ₽
29

59031051085 STARTER JET 85

STARTER JET 85

4 500 ₽
30

57331107100 IDLE AIR JET0 KEIHIN

IDLE AIR JET0 KEIHIN

3 830 ₽
32

59031017100 ADJUST SCREW CPL. FCR-MX

ADJUST SCREW CPL. FCR-MX

5 000 ₽
35

57331085000 BUFFER PLATE

BUFFER PLATE

3 010 ₽
39

57331009000 FLOAT CPL.

FLOAT CPL.

16 090 ₽
40

57331008000 ARM PIN FLOAT

ARM PIN FLOAT

470 ₽
41

58502096044 CONNECT. COLD START CABLE CPL.

CONNECT. COLD START CABLE CPL.

8 060 ₽
42

54631220000 FLOAT NEEDLE

FLOAT NEEDLE

8 470 ₽
43

54531621000 CLAMP

CLAMP

880 ₽
46

76231155000 DRAIN SCREW + O-RING

DRAIN SCREW + O-RING

1 550 ₽
47

57331060000 COVER ACCELERATOR PUMP

COVER ACCELERATOR PUMP

6 630 ₽
49

78031011000 FLOAT CHAMBER CPL.

FLOAT CHAMBER CPL.

48 240 ₽
53

59031059000 COIL SPRING

COIL SPRING

1 690 ₽
55

57331090000 AIR CUT VALVE

AIR CUT VALVE

12 880 ₽
56

57331098000 BREATH.HOSE FCR-MX KEIHIN CPL.

BREATH.HOSE FCR-MX KEIHIN CPL.

29 060 ₽
60

0965050103 FLAT HEAD SCREW DIN0965-M 5X10

FLAT HEAD SCREW DIN0965-M 5X10

290 ₽
61

54531699000 PLUG M 18X1

PLUG M 18X1

5 430 ₽
64

57331062000 INTERMEDIATE LEVER CPL.

INTERMEDIATE LEVER CPL.

9 000 ₽
65

57331056000 LINK LEVER

LINK LEVER

1 870 ₽
66

57331059000 SPRING LINK LEVER

SPRING LINK LEVER

2 750 ₽
67

57331159000 SPRING INTERMEDIATE LEVER

SPRING INTERMEDIATE LEVER

2 650 ₽
68

57331038200 CARBURETOR COVER

CARBURETOR COVER

1 870 ₽
69

57331087000 WASHER LINK LEVER

WASHER LINK LEVER

350 ₽
70

57331084000 E-CLIP

E-CLIP

530 ₽
72

57331061000 ROD ACCELERATOR PUMP

ROD ACCELERATOR PUMP

7 220 ₽
83

59031013044 HOSE CONNECTOR CPL.

HOSE CONNECTOR CPL.

17 670 ₽
90

76231025000 STOP SCREW CPL.FCR-MX RALLY

STOP SCREW CPL.FCR-MX RALLY

0 ₽
96

59031077200 TPS-SENSOR FCRMX 190MM

TPS-SENSOR FCRMX 190MM

38 700 ₽
99

57331099000 GASKET SET FCR-MX KEIHIN

GASKET SET FCR-MX KEIHIN

32 360 ₽
