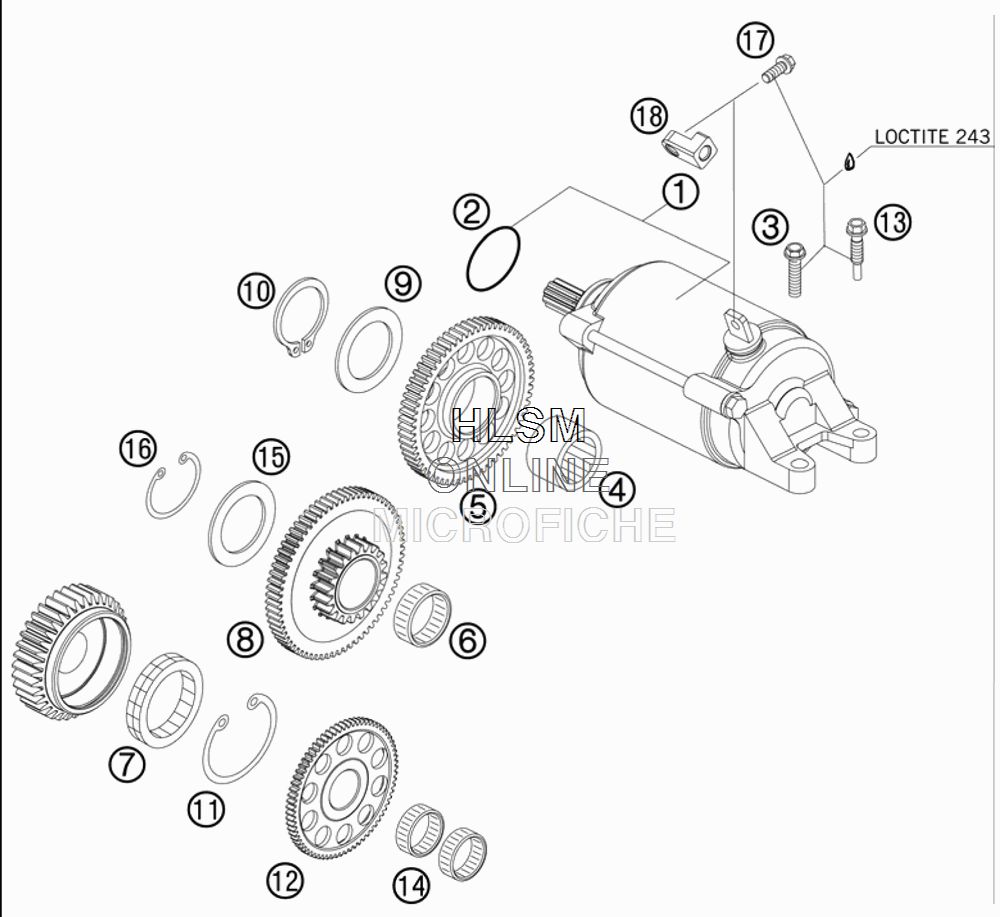

ELECTRIC STARTER для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска
-
№АртикулНазвание
-
175040001000 E-STARTER ENGINE CPL.E-STARTER ENGINE CPL.
-
20770335030 O-RING 33,5X3 VITONO-RING 33,5X3 VITON
-
30025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
40618172312 NEEDLE SLEEVE HK 1712 17X23X12NEEDLE SLEEVE HK 1712 17X23X12
-
575040022000 INTERMEDIATE GEARINTERMEDIATE GEAR
-
60405172117 NEEDLE BEARING K17X21X17NEEDLE BEARING K17X21X17
-
775040026000 FREE WHEELFREE WHEEL
-
875040015000 TORQUE LIMITERTORQUE LIMITER
-
954633090000 STOP DISK 17,2X25X1STOP DISK 17,2X25X1
-
100471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
110472056200 CIRCLIP DIN0472 J56CIRCLIP DIN0472 J56
-
1275040020000 FREEWHEEL GEARFREEWHEEL GEAR
-
1376240030000 HH COLLAR SCREW M 6X30HH COLLAR SCREW M 6X30
-
140405263013 NEEDLE BEAR. K 26X30X13NEEDLE BEAR. K 26X30X13
-
1575040015007 STOP DISK 17,2X22X1STOP DISK 17,2X22X1
-
160471170100 CIRCLIP DIN71-17X1CIRCLIP DIN71-17X1
-
170025060086 HH COLLAR SCREW M6X8 TX30HH COLLAR SCREW M6X8 TX30
-
1876211059010 STARTER CABLE LUGSTARTER CABLE LUG
