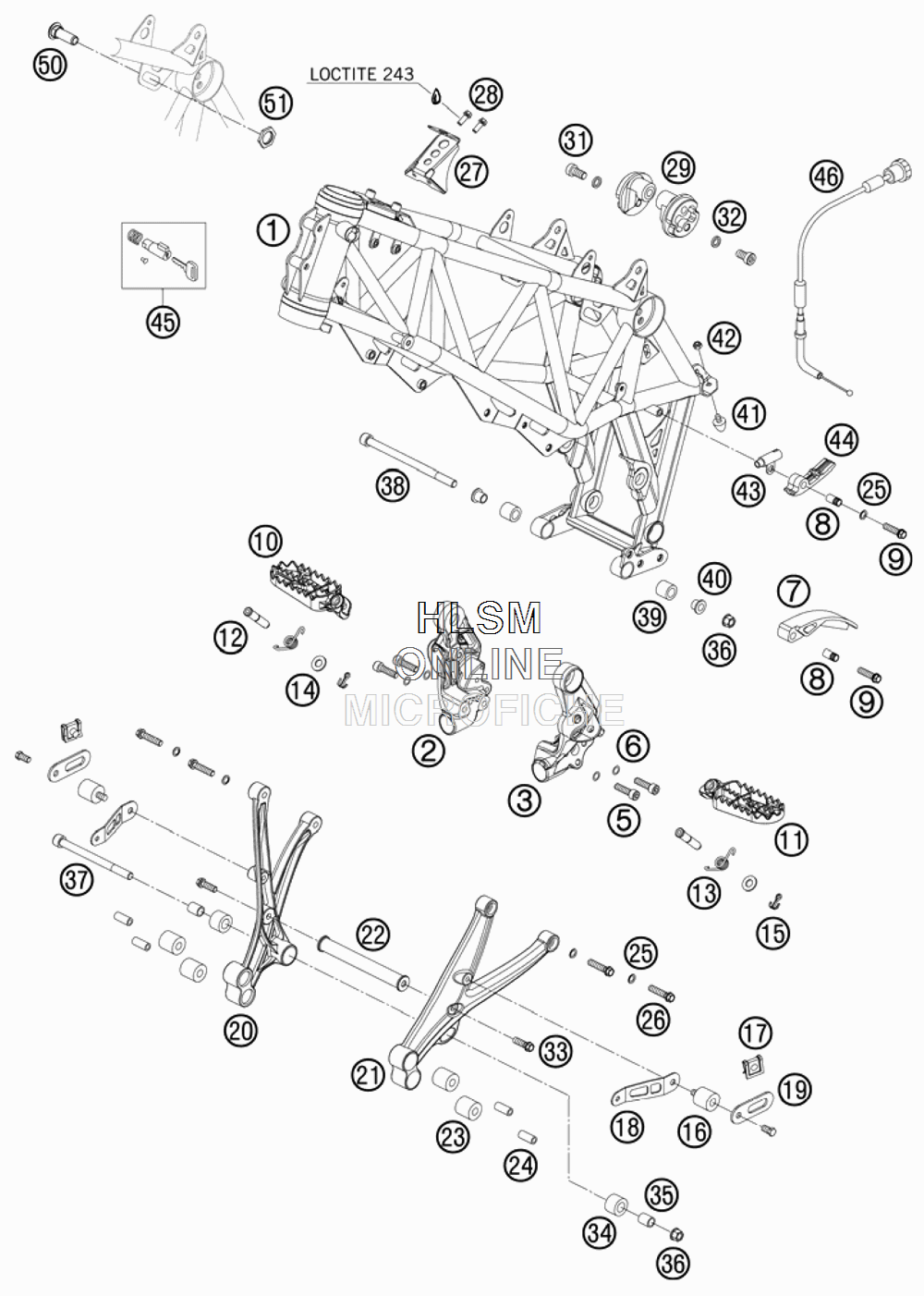

FRAME для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска
-
№АртикулНазвание
-
17620300100090 FRAME RALLYEFRAME RALLYE
-
276203039000 FOOTREST BRACKET RIGHTFOOTREST BRACKET RIGHT
-
376203038000 FOOTREST BRACKET LEFTFOOTREST BRACKET LEFT
-
50912080303 AH SCREW DIN0912-M 8X30AH SCREW DIN0912-M 8X30
-
636003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
776204066000 CHAIN SLIDING PARTCHAIN SLIDING PART
-
851103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
-
90025080356S HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
1076203041250 FOOTREST RIGHT RALLYFOOTREST RIGHT RALLY
-
1176203040250 FOOTREST LEFT RALLYFOOTREST LEFT RALLY
-
1254603044000 BOLT FOR FOOTREST 9,8 X 50BOLT FOR FOOTREST 9,8 X 50
-
1354603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
140125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
150094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
1651005062100 RUBBER GROMMET 30X20-M8X12RUBBER GROMMET 30X20-M8X12
-
1754603048000 RANGE CHANGE METAL NUT M8RANGE CHANGE METAL NUT M8
-
1876203005030 RADIATOR STRUTRADIATOR STRUT
-
1976203002420 FUEL TANK SUPPORT PLATEFUEL TANK SUPPORT PLATE
-
2076203006000 ENGINE SUPPORT RIGHTENGINE SUPPORT RIGHT
-
2176203005000 ENGINE SUPPORT LEFTENGINE SUPPORT LEFT
-
2276203005040 CROSS MEMBER CPL.CROSS MEMBER CPL.
-
2376203005031 RUBBER INSERTRUBBER INSERT
-
2476203005050 BUSH ENGINE SUPPORTBUSH ENGINE SUPPORT
-
2536003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
260025080356 HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
2776203001066 JOINT PLATE SEATJOINT PLATE SEAT
-
280912060163 AH SCREW DIN0912-M 6X16AH SCREW DIN0912-M 6X16
-
2976203001072 ADAPTER MONOSHOCK ANCHOR BOLTADAPTER MONOSHOCK ANCHOR BOLT
-
310912100163 AH SCREW DIN0912-M10X16AH SCREW DIN0912-M10X16
-
3250233041100 PAIR OF WASHERS M10 NORDLOCKPAIR OF WASHERS M10 NORDLOCK
-
330025080206 HH COLLAR SCREW M8X20 TX40HH COLLAR SCREW M8X20 TX40
-
3476203018000 ELASTOMER BEARINGELASTOMER BEARING
-
3576203019000 COLLAR BUSH FOR ELAST.BEARINGCOLLAR BUSH FOR ELAST.BEARING
-
3654630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
370912101406 AH SCREW DIN912 M10X140.9AH SCREW DIN912 M10X140.9
-
380912101906 AH SCREW DIN 912 M10X190.9AH SCREW DIN 912 M10X190.9
-
3976203016000 ELASTOMER BEARINGELASTOMER BEARING
-
4076203017000 COL. BUSH. F. EL. MOT. BEARINGCOL. BUSH. F. EL. MOT. BEARING
-
4176203001091 PUMP RUBBER KP PARABOLICPUMP RUBBER KP PARABOLIC
-
420985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
4376202095051 SLEEVE FOR CHOKE CABLESLEEVE FOR CHOKE CABLE
-
4454804067000 CHAIN SLIDING PIECECHAIN SLIDING PIECE
-
4571003007000 STEERING HEAD LOCK CPL. ZADISTEERING HEAD LOCK CPL. ZADI
-
4676202095000 CHOKE-CABLE L = 235CHOKE-CABLE L = 235
-
5058512068100 FIXING SCREW TANK REARFIXING SCREW TANK REAR
-
5160512063050 NUT F.TANK BRAKET REARNUT F.TANK BRAKET REAR
