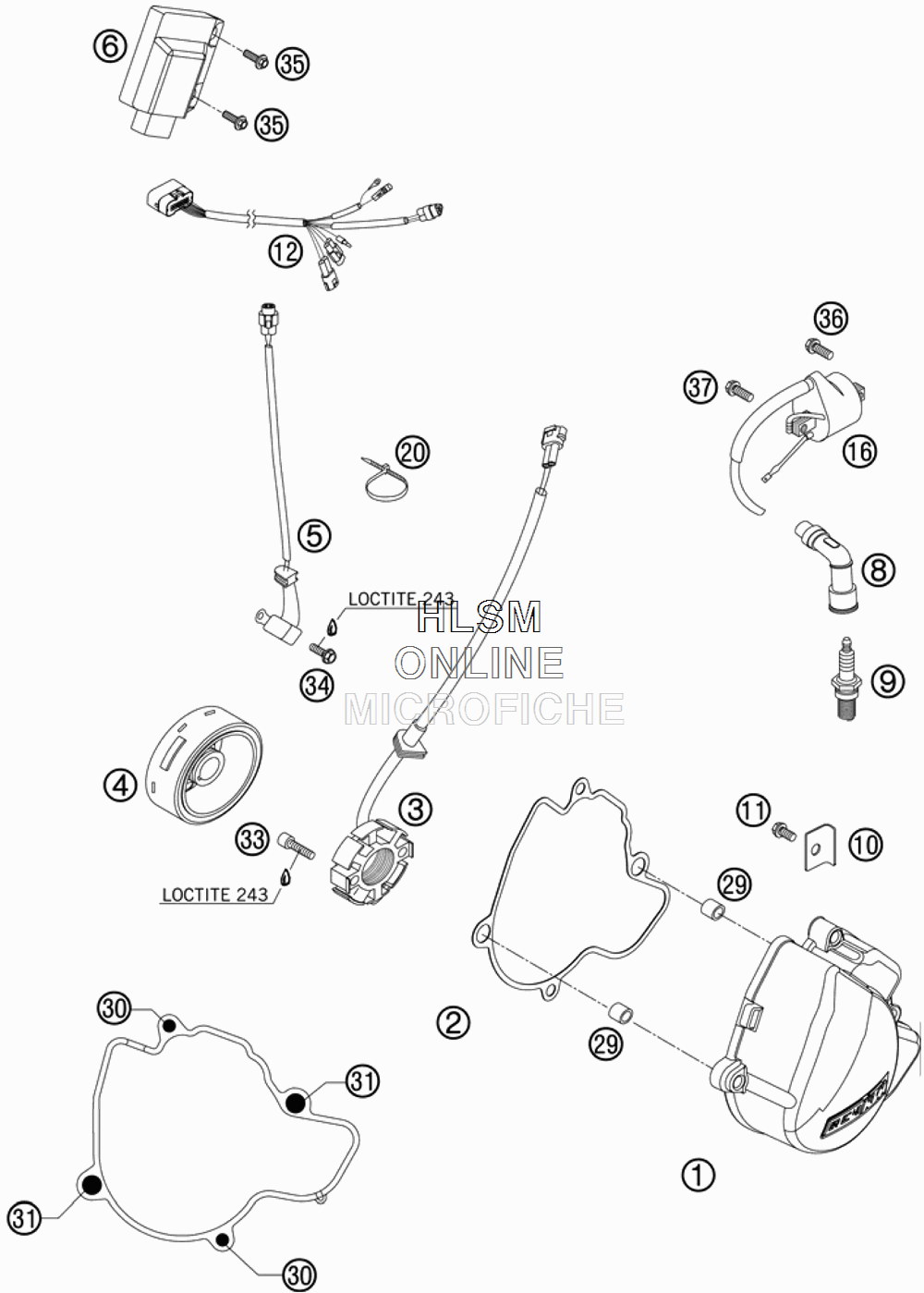

IGNITION SYSTEM для Ktm 250 SX-F - 2010 года выпуска
-
№АртикулНазвание
-
17703000230015 IGNITION COVERIGNITION COVER
-
277030040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
377039004000 STATOR 4K3-ASTATOR 4K3-A
-
477039005000 FLYWHEELFLYWHEEL
-
559039034000 PULSER COIL KOKUSAN 4K3-A/BPULSER COIL KOKUSAN 4K3-A/B
-
6*77039031700 DIGITALBOX 250 SX-FDIGITALBOX 250 SX-F
-
859039090100 SPARK PLUG CONNECT. VD05EGSPARK PLUG CONNECT. VD05EG
-
977039093000 SPARK PLUG NGK CR9EKBSPARK PLUG NGK CR9EKB
-
1077030002050 WIRE RETAINING BRACKETWIRE RETAINING BRACKET
-
110025060086 HH COLLAR SCREW M6X8 TX30HH COLLAR SCREW M6X8 TX30
-
1259439032100 WIRING HARNESS FOR CDI EXCWIRING HARNESS FOR CDI EXC
-
1659039006000 IGNITIONCOIL "IG5128"IGNITIONCOIL "IG5128"
-
2044011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
2949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
300025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
310025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
330912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
340025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
350023060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
360025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
370025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
