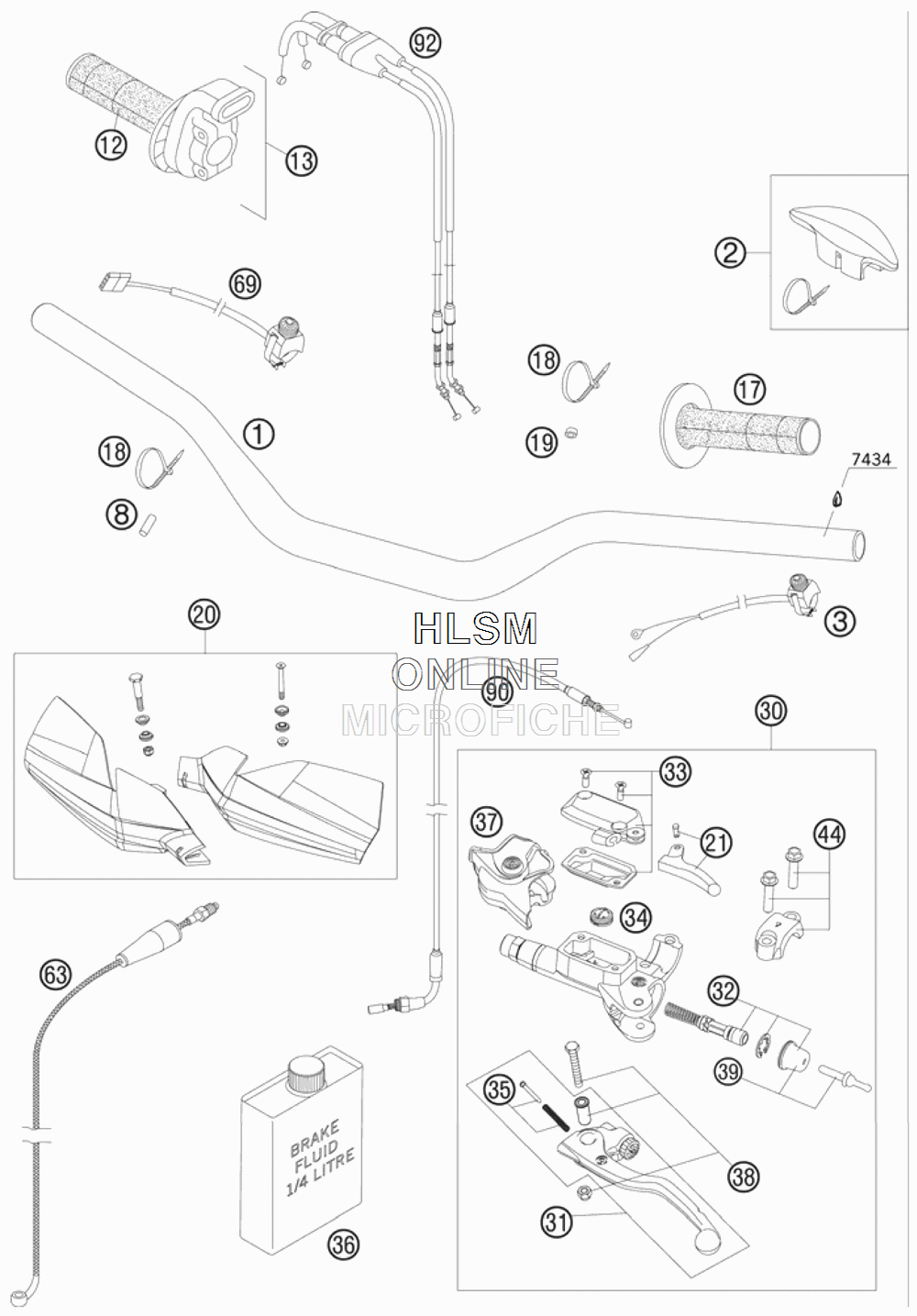

PART NUMBER для Ktm 250 SX-F - 2010 года выпуска

№

Артикул

Название
1

7730200110017 HANDLEBAR RENTHAL SX 28MM

HANDLEBAR RENTHAL SX 28MM

31 230 ₽
2

77202002000 BAR PAD CPL.

BAR PAD CPL.

0 ₽
3

50311089200 SHORT CIRCUIT BUTTON 02

SHORT CIRCUIT BUTTON 02

10 140 ₽
8

78011016015 HOSE 7X11,5X15

HOSE 7X11,5X15

1 080 ₽
12*

54802013100 TWIST GRIP COVER GRAY/ORA.

TWIST GRIP COVER GRAY/ORA.

0 ₽
13*

77002010100 THROTTLE GRIP CPL. 4-ST.

THROTTLE GRIP CPL. 4-ST.

11 680 ₽
17*

54802039100 FIXED GRIP GRAY/ORANGE

FIXED GRIP GRAY/ORANGE

7 870 ₽
18

44011076100 CABLE TIE 100/2,5MM BLACK

CABLE TIE 100/2,5MM BLACK

100 ₽
18

44011076200 CABLE TIE 200/3,6MM BLACK

CABLE TIE 200/3,6MM BLACK

120 ₽
19

50301089000 SPACER BUSHING 6X10X5

SPACER BUSHING 6X10X5

440 ₽
20

7700207900004 HAND GUARDS CPL.L/S+R/S OR.

HAND GUARDS CPL.L/S+R/S OR.

11 360 ₽
21

77002047000 HOT START LEVER CPL.

HOT START LEVER CPL.

3 660 ₽
30

77002030044 MASTER CYLINDER CPL.

MASTER CYLINDER CPL.

62 290 ₽
31

54802031000 CLUTCH LEVER CPL. BREMBO

CLUTCH LEVER CPL. BREMBO

10 820 ₽
32

54802032000 REP. KIT PISTON

REP. KIT PISTON

12 830 ₽
33

77002003000 COVER HYD. CLUTCH CPL.

COVER HYD. CLUTCH CPL.

11 070 ₽
34

54802051000 VALVE

VALVE

4 530 ₽
35

54802052000 BOLT KPL.

BOLT KPL.

7 920 ₽
36

00062030000 BRAKE FLUID DOT5.1 0,25L

BRAKE FLUID DOT5.1 0,25L

2 870 ₽
37

54802037000 PROTECTION CAP

PROTECTION CAP

5 640 ₽
38

54802038100 LEVER SCREW CPL.

LEVER SCREW CPL.

10 750 ₽
39

54802046000 PUSH ROD CPL.

PUSH ROD CPL.

5 960 ₽
44

54802005100 CLAMP CPL.

CLAMP CPL.

6 950 ₽
63

54832063000 CLUTCH PIPE

CLUTCH PIPE

23 220 ₽
69

59411074000 STARTER CONTROL

STARTER CONTROL

11 600 ₽
90

77002096000 HOT START CABLE

HOT START CABLE

5 780 ₽
92

77002091000 THROTTLE CABLE

THROTTLE CABLE

20 300 ₽
