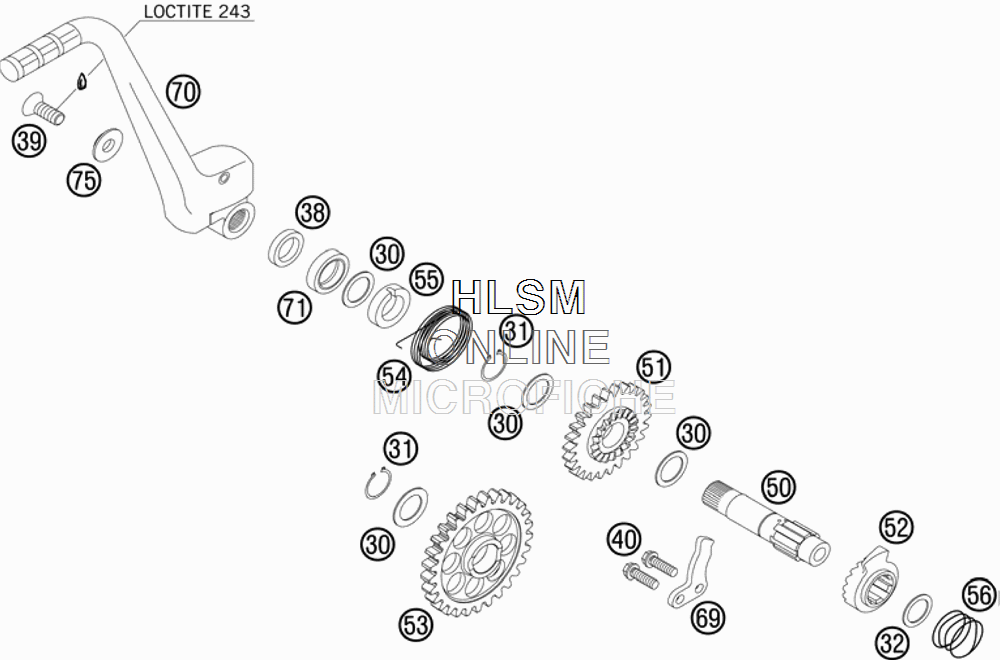

KICK STARTER для Ktm 250 SX-F - 2010 года выпуска
-
№АртикулНазвание
-
3050333030000 STOP DISK 17,2X24X1STOP DISK 17,2X24X1
-
310471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
320988162210 THRUST WASHER DIN0988-16X22X1THRUST WASHER DIN0988-16X22X1
-
3850333038100 SPACER BUSHING 16X23X26X6,1SPACER BUSHING 16X23X26X6,1
-
390019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
400025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
5077033050000 KICKSTARTER SHAFTKICKSTARTER SHAFT
-
5177033051000 KICKSTART. GEAR 28-TKICKSTART. GEAR 28-T
-
5250333052000 KICKSTARTER RATCHETKICKSTARTER RATCHET
-
5377033053000 INTERMEDIATE GEARINTERMEDIATE GEAR
-
5477033054000 KICKSTARTER SPRINGKICKSTARTER SPRING
-
5577033055000 DRIVING HUBDRIVING HUB
-
5650333056000 SPRING 1,4MMSPRING 1,4MM
-
6950333069000 STOP MET.SHEET 4MMSTOP MET.SHEET 4MM
-
7077033170044 KICK STARTER CPL.KICK STARTER CPL.
-
710760172870 SHAFT SEAL RING 17X28X7BSHAFT SEAL RING 17X28X7B
-
7554633037000 WASHER 8MM GALVANIZEDWASHER 8MM GALVANIZED
