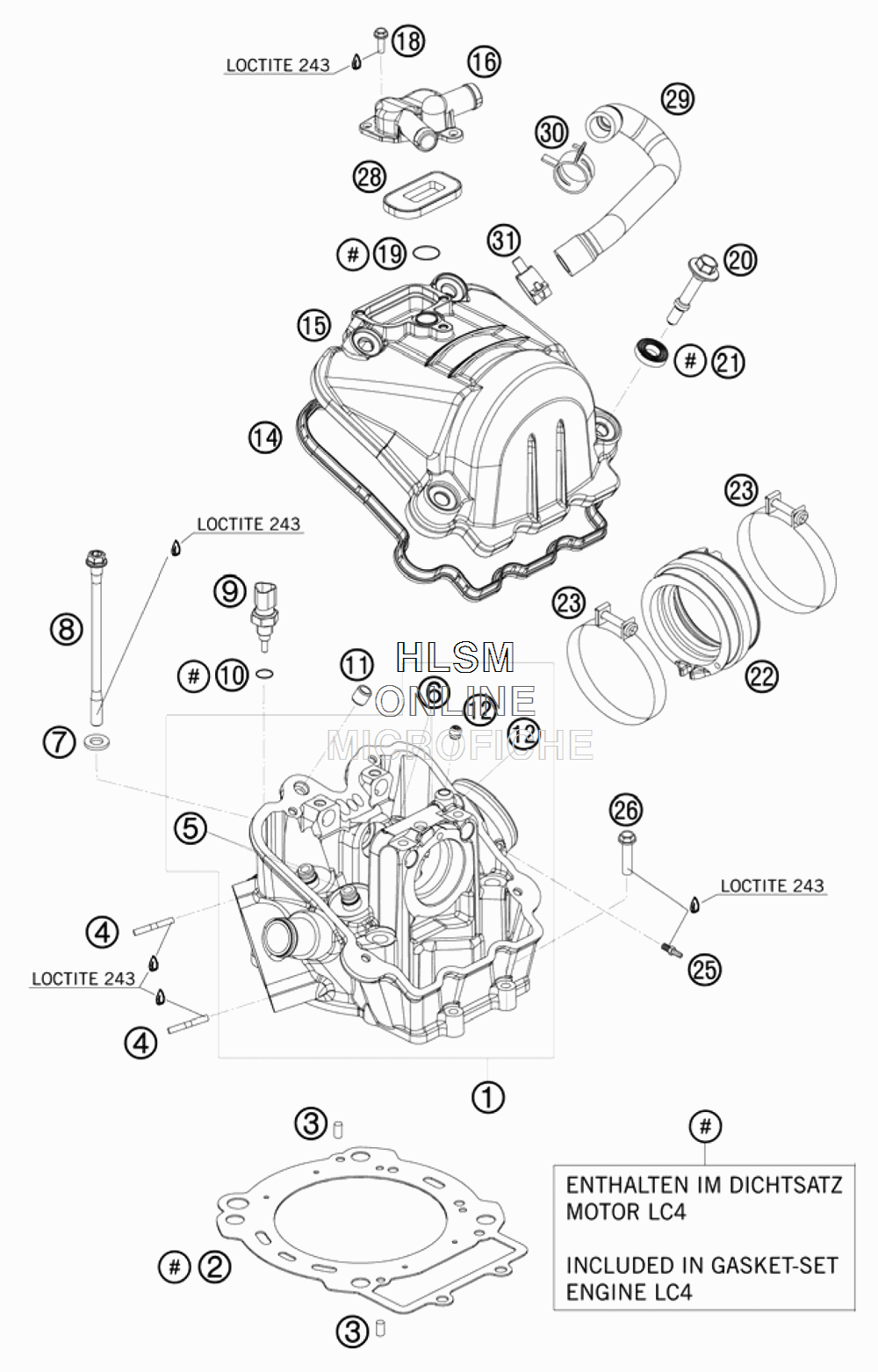

CYLINDER HEAD для Ktm 690 ENDURO R - 2010 года выпуска

№

Артикул

Название
1

75036020144 CYLINDER HEAD CPL.

CYLINDER HEAD CPL.

161 650 ₽
2

75030036000 CYLINDER HEAD GASKET

CYLINDER HEAD GASKET

11 680 ₽
3

0474050100 GROOVED PIN DIN1474 5X10

GROOVED PIN DIN1474 5X10

270 ₽
4

0835080256 STUD DIN0835-M 8X25 10.9

STUD DIN0835-M 8X25 10.9

760 ₽
5

60036026101 VALVE GIUDE EXHAUST

VALVE GIUDE EXHAUST

6 720 ₽
6

60036025101 VALVE GIUDE INTAKE

VALVE GIUDE INTAKE

2 600 ₽
7

60036078050 SHIM 10,2X19X1,5MM

SHIM 10,2X19X1,5MM

560 ₽
8

75036079000 CYLINDERHEAD SCREW M10X168WS14

CYLINDERHEAD SCREW M10X168WS14

2 140 ₽
9

75035047000 TEMPERATURE SENSOR WATER

TEMPERATURE SENSOR WATER

9 790 ₽
10

0770100020 O-RING 10,00X2,00 SILCONE

O-RING 10,00X2,00 SILCONE

500 ₽
11

49030090000 DOWEL 9,8 X 7 X 10

DOWEL 9,8 X 7 X 10

290 ₽
12

59030296000 SCREW PLUG

SCREW PLUG

1 520 ₽
14

75036053000 VALVE COVER GASKET

VALVE COVER GASKET

4 590 ₽
15

75036052000 VALVE COVER

VALVE COVER

14 140 ₽
16

75036052050 BREATHER COVER

BREATHER COVER

2 320 ₽
18*

07984050100 AH SCREW DIN7984 M5X10 A2

AH SCREW DIN7984 M5X10 A2

180 ₽
19

0770150151 O-RING 15,00X1,50 VITON

O-RING 15,00X1,50 VITON

590 ₽
20

75036055000 VALVE COVER SCREW

VALVE COVER SCREW

930 ₽
21

75036052010 DECOUPLING ELEMENT

DECOUPLING ELEMENT

790 ₽
22

75036044000 INTAKE BOOT

INTAKE BOOT

9 610 ₽
23

75036047000 HOSE CLAMP GEMI 70MM

HOSE CLAMP GEMI 70MM

2 510 ₽
25

60036023100 VACUUM CONECTION M6/0,5MM

VACUUM CONECTION M6/0,5MM

7 630 ₽
26

0025060256 HH COLLAR SCREW M6X25 TX30

HH COLLAR SCREW M6X25 TX30

560 ₽
28

60005026000 SLS-VALVE

SLS-VALVE

5 490 ₽
29

76530088000 PRE.HOSE OIL SEPARATOR FOAM

PRE.HOSE OIL SEPARATOR FOAM

5 140 ₽
30

00049200121 CLAMP STD DN20

CLAMP STD DN20

270 ₽
31

00049210121 CLAMP 21X12 STD-DES

CLAMP 21X12 STD-DES

640 ₽
