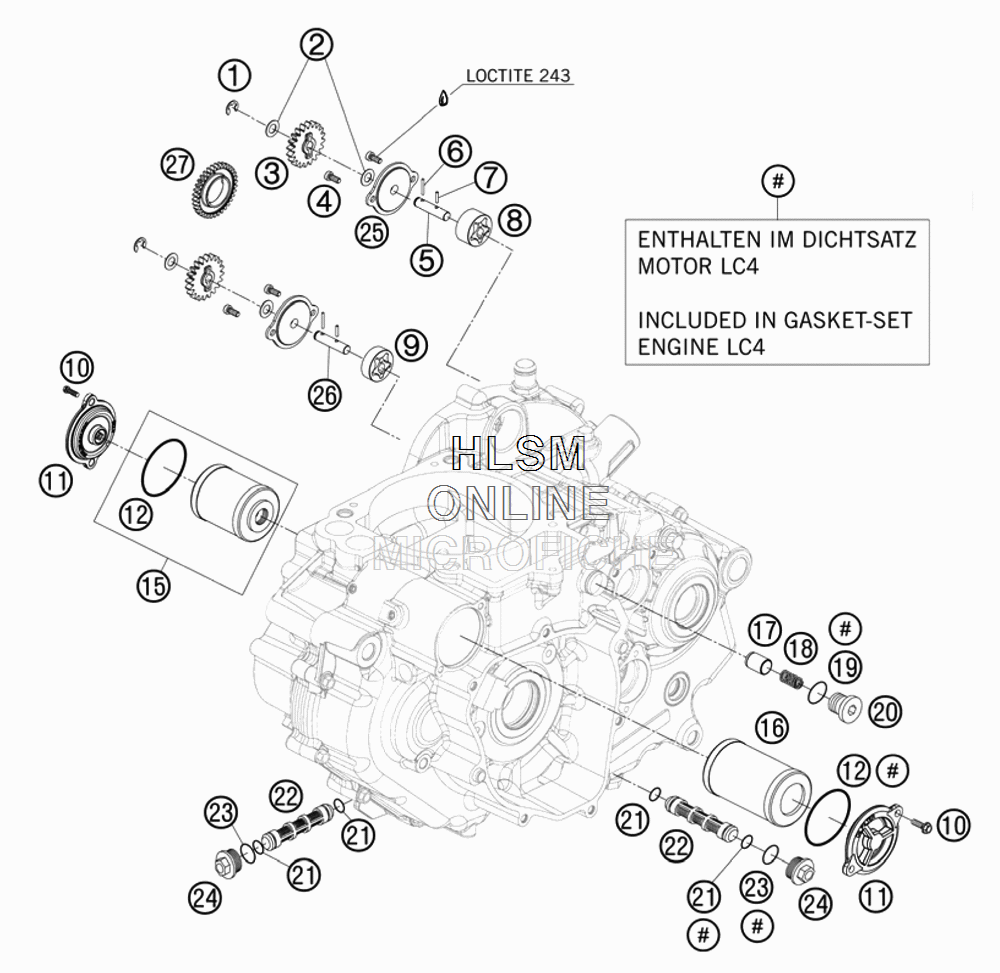

LUBRICATING SYSTEM для Ktm 690 ENDURO R - 2010 года выпуска

№

Артикул

Название
1

0799060000 TAB WASHER DIN6799-RS 6,0

TAB WASHER DIN6799-RS 6,0

290 ₽
2

58038007755 STOP DISK 8,1 X 15 X 0,5

STOP DISK 8,1 X 15 X 0,5

290 ₽
3

75038001020 OIL PUMP GEAR 20-T

OIL PUMP GEAR 20-T

1 140 ₽
4

07984050100 AH SCREW DIN7984 M5X10 A2

AH SCREW DIN7984 M5X10 A2

180 ₽
5

75038002000 OIL PUMP SHAFT 07

OIL PUMP SHAFT 07

2 020 ₽
6

0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8

NEEDLEROL.DIN5402 NRA 2,5X19,8

210 ₽
7

0402251180 NEEDLE ROLLER DIN5402 2,5X11,8

NEEDLE ROLLER DIN5402 2,5X11,8

210 ₽
8

77038011000 OILPUMP ROTOR 15MM G-164

OILPUMP ROTOR 15MM G-164

11 800 ₽
9

59038011010 OILPUMP ROTOR CPL. 10MM G-73R

OILPUMP ROTOR CPL. 10MM G-73R

7 510 ₽
10

025050166 HH COLLAR SCREW M5X16 TX30

HH COLLAR SCREW M5X16 TX30

0 ₽
11

75038041200 OILFILTER CAP

OILFILTER CAP

1 870 ₽
12

0770039026 O-RING 39,34X2,62 NBR 70 SH

O-RING 39,34X2,62 NBR 70 SH

320 ₽
15

59038046144 OIL FILTER SHORT WITH GASKET

OIL FILTER SHORT WITH GASKET

2 140 ₽
16

58038005100 OIL FILTER LONG

OIL FILTER LONG

2 740 ₽
17

58038028000 VALVE PISTON D=10MM

VALVE PISTON D=10MM

10 200 ₽
18

58538023000 OIL PRES.SPRING 5 BAR RED 2001

OIL PRES.SPRING 5 BAR RED 2001

2 140 ₽
19

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
20

0908120153 PLUG DIN0908-M12X1,5

PLUG DIN0908-M12X1,5

850 ₽
21

07701250151 O-RING 12,5X1,5 VITON V75

O-RING 12,5X1,5 VITON V75

970 ₽
22

59038016000 OIL SCREEN 15X83MM

OIL SCREEN 15X83MM

3 620 ₽
23

0770020170 O-RING 17,17X1,78 GLO

O-RING 17,17X1,78 GLO

470 ₽
24

59038017000 PLUG M20X1,5 WS=13

PLUG M20X1,5 WS=13

1 810 ₽
25

75038003000 OIL PUMP COVER 07

OIL PUMP COVER 07

3 950 ₽
26

75038004000 OIL PUMP SHAFT 07

OIL PUMP SHAFT 07

2 020 ₽
27

75032050001 OIL PUMP DRIVE WHEEL 07

OIL PUMP DRIVE WHEEL 07

850 ₽
