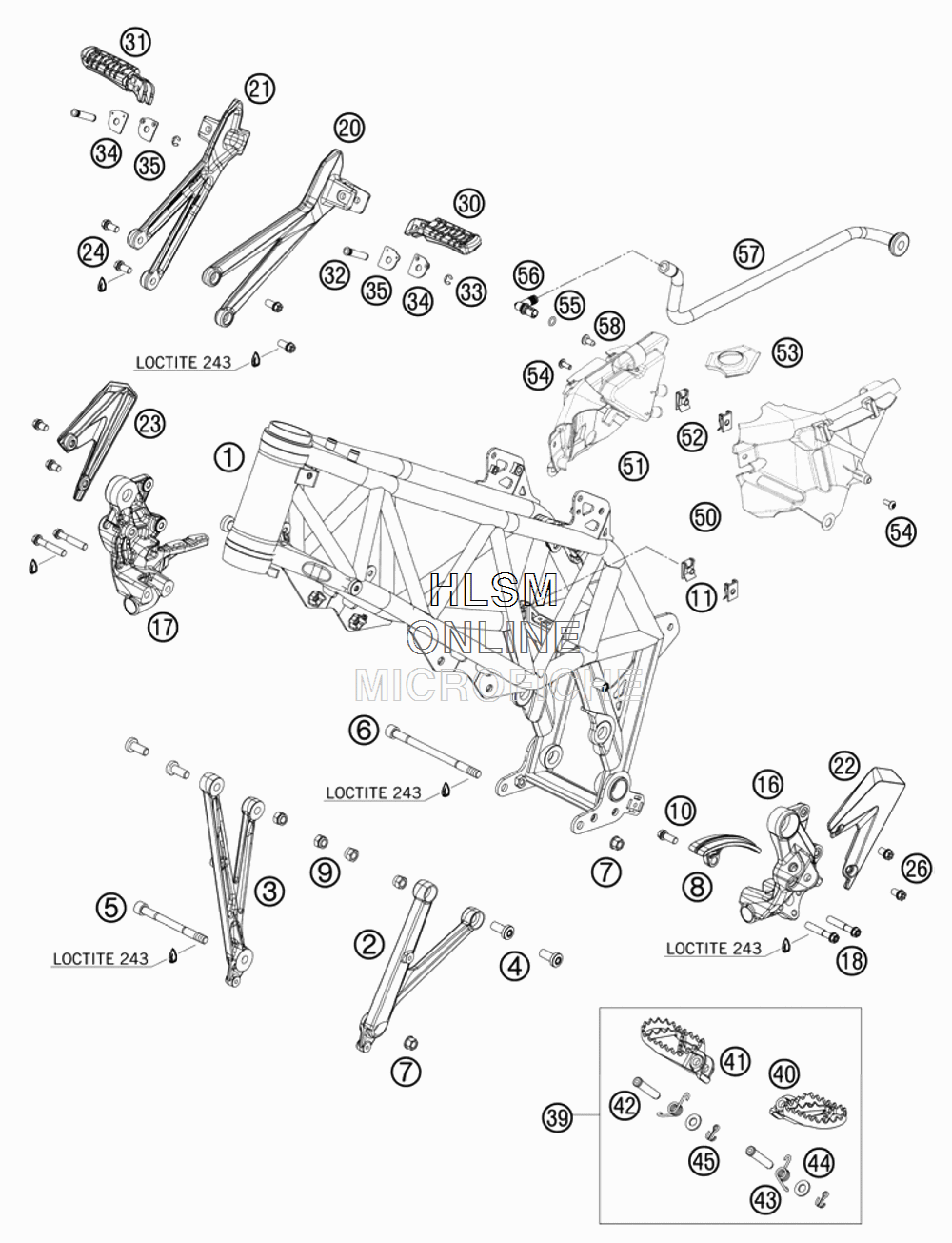

FRAME для Ktm 690 ENDURO R - 2010 года выпуска
-
№АртикулНазвание
-
17650300100004 FRAME "EC08" ORANGEFRAME "EC08" ORANGE
-
27650300500001S ENGINE SUPPORT LEFT SIDEENGINE SUPPORT LEFT SIDE
-
37650300600001S ENGINE SUPPORT RIGHT SIDEENGINE SUPPORT RIGHT SIDE
-
40035100249 AH-COLLAR SCREW M10X24 ISA45AH-COLLAR SCREW M10X24 ISA45
-
575003015000 SPECIAL SCREW M10X115 ISK8SPECIAL SCREW M10X115 ISK8
-
675003014000 SPECIAL SCREW M10X152 ISK8SPECIAL SCREW M10X152 ISK8
-
754630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
876504067000 CHAIN SLID. GUARDCHAIN SLID. GUARD
-
954310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
100025080206 HH COLLAR SCREW M8X20 TX40HH COLLAR SCREW M8X20 TX40
-
1154603048500 RANGE CHANGE METAL NUT M4RANGE CHANGE METAL NUT M4
-
167650303804401S FOOTREST BRACKET L/SFOOTREST BRACKET L/S
-
177650303904401S FOOTREST BRACKE R/SFOOTREST BRACKE R/S
-
180025080456 HH COLLAR SCREW M8X45TX40HH COLLAR SCREW M8X45TX40
-
207650304800001S FOOT REST BRACKET REAR L/SFOOT REST BRACKET REAR L/S
-
217650304900001S FOOT REST BRACKET REAR R/SFOOT REST BRACKET REAR R/S
-
2276503038150 HEEL PROTECTOR LSHEEL PROTECTOR LS
-
2376503039050 HEEL PROTECTOR RSHEEL PROTECTOR RS
-
240025080166 HH COLLAR SCREW M8X16 TX40HH COLLAR SCREW M8X16 TX40
-
260025080126 HH COLLAR SCREW M8X12 TX40HH COLLAR SCREW M8X12 TX40
-
3060003050000 FOOTREST CPL. L/S REARFOOTREST CPL. L/S REAR
-
3160003051000 FOOTREST CPL. R/S REARFOOTREST CPL. R/S REAR
-
3260003044000 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
-
33799060003 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
3460003052000 ENGAGE PANEL FOOTREST R/SENGAGE PANEL FOOTREST R/S
-
3560003152000 ENGAGE PANEL FOOTREST L/SENGAGE PANEL FOOTREST L/S
-
3976503040033 FOOTREST L/S+R/S CPL.FOOTREST L/S+R/S CPL.
-
4059003040250 FOOT PEG L/S SILVERFOOT PEG L/S SILVER
-
4159003041250 FOOT PEG R/S SILVERFOOT PEG R/S SILVER
-
4276503044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
4354603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
440125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
450094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
5076503083100 COVER FRAME L/SCOVER FRAME L/S
-
5176503084100 COVER FRAME R/SCOVER FRAME R/S
-
5269008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
53*76503085000 COVER FOR IGNITION LOCKCOVER FOR IGNITION LOCK
-
5458605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
-
550770080020 O-RING 8X2 SILICONEO-RING 8X2 SILICONE
-
5660038082000 ANGLE CONNECTOR LC8ANGLE CONNECTOR LC8
-
5776530087000 VENTILATION OIL SEPARATOR FOAMVENTILATION OIL SEPARATOR FOAM
-
580081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
