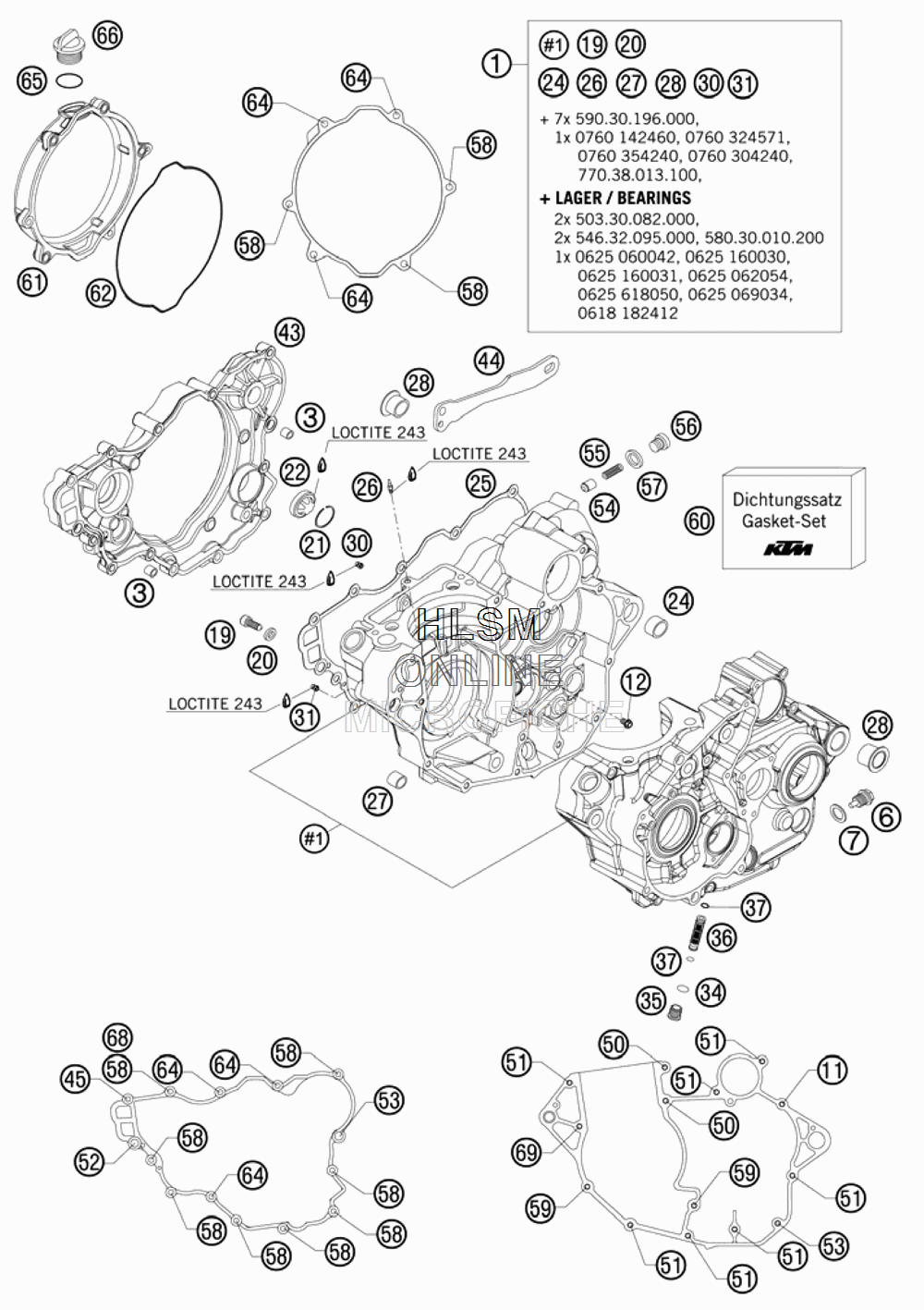

ENGINE CASE для Ktm 250 XCF-W SIX DAY - 2011 года выпуска

№

Артикул

Название
1

77030100144 ENGINE CASE CPL. EXC-F/XC-F

ENGINE CASE CPL. EXC-F/XC-F

170 ₽
3

49030090000 DOWEL 9,8 X 7 X 10

DOWEL 9,8 X 7 X 10

290 ₽
6

58030021000 OILDRAIN PLUG W.MAG. M 12X1,5

OILDRAIN PLUG W.MAG. M 12X1,5

2 800 ₽
7

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
11

0025060456 HH COLLAR SCREW M6X45 TX30

HH COLLAR SCREW M6X45 TX30

470 ₽
12

0025060086 HH COLLAR SCREW M6X8 TX30

HH COLLAR SCREW M6X8 TX30

470 ₽
19

58030080000 LOCATING SCREW M8 L=23

LOCATING SCREW M8 L=23

3 380 ₽
20

58030081000 CU-SEAL RING 8 X 14 X 3

CU-SEAL RING 8 X 14 X 3

410 ₽
21

61030019050 CIRCLIP OIL LEVEL GLASS

CIRCLIP OIL LEVEL GLASS

150 ₽
22

59030019000 OIL LEVEL GLASS G 1777 Y

OIL LEVEL GLASS G 1777 Y

5 720 ₽
24

59030024000 DOWEL 17 X 19 X 12

DOWEL 17 X 19 X 12

1 230 ₽
25

77030025100 GASKET FOR CLUTCH COVER

GASKET FOR CLUTCH COVER

4 060 ₽
26

60030064070 OIL JET 70 M6X0,75 WS8

OIL JET 70 M6X0,75 WS8

3 100 ₽
27

54630027000 DOWEL BUSHING 13,8X11X12

DOWEL BUSHING 13,8X11X12

1 580 ₽
28

75030010000 CASE BUSH

CASE BUSH

1 960 ₽
30

59030058000 JET 100 BING(44-031/180) M4

JET 100 BING(44-031/180) M4

970 ₽
31

77030058150 JET 44-031/150

JET 44-031/150

930 ₽
34

0770120020 O-RING 12,00X2,00 NBR 70

O-RING 12,00X2,00 NBR 70

470 ₽
35

77038017000 SCREW PLUG

SCREW PLUG

4 530 ₽
36

59038015100 OIL SCREEN,8X44,5MM

OIL SCREEN,8X44,5MM

3 390 ₽
37

0770090015 O-RING 9X1,5 NBR

O-RING 9X1,5 NBR

470 ₽
43

7703000124415 CLUTCH COVER CPL.

CLUTCH COVER CPL.

33 910 ₽
44

77030047100 CHAIN DAMPERSHEET EXC-F

CHAIN DAMPERSHEET EXC-F

7 010 ₽
45

0025060356 HH COLLAR SCREW M6X35 TX30

HH COLLAR SCREW M6X35 TX30

560 ₽
50

0025060656 HH COLLAR SCREW M6X65 TX30

HH COLLAR SCREW M6X65 TX30

410 ₽
51

0025060506 HH COLLAR SCREW M6X50 TX30

HH COLLAR SCREW M6X50 TX30

640 ₽
52

0025060406 HH COLLAR SCREW M6X40 TX30

HH COLLAR SCREW M6X40 TX30

500 ₽
53

0025060306 HH COLLAR SCREW M6X30 TX30

HH COLLAR SCREW M6X30 TX30

560 ₽
54

58038028000 VALVE PISTON D=10MM

VALVE PISTON D=10MM

10 200 ₽
55

58038023300 PRESSURE SPRING L=25MM D=1MM

PRESSURE SPRING L=25MM D=1MM

1 200 ₽
56

0908120153 PLUG DIN0908-M12X1,5

PLUG DIN0908-M12X1,5

850 ₽
57

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
58

0025060256 HH COLLAR SCREW M6X25 TX30

HH COLLAR SCREW M6X25 TX30

560 ₽
59

0025060956 HH COLLAR SCREW M6X95 TX30

HH COLLAR SCREW M6X95 TX30

640 ₽
60

77030099000 GASKET SET

GASKET SET

74 620 ₽
61

7703002630015 CLUTCH COVER OUTSIDE

CLUTCH COVER OUTSIDE

20 330 ₽
62

77030027000 MOLDED RING

MOLDED RING

5 020 ₽
64

0025060556 HH COLLAR SCREW M6X55 TX30

HH COLLAR SCREW M6X55 TX30

700 ₽
65

0770191015 O-RING 19,00X3,00 NBR

O-RING 19,00X3,00 NBR

290 ₽
66

58030120000 OIL FILLER CAP M24X3 WITH O-R

OIL FILLER CAP M24X3 WITH O-R

1 840 ₽
68

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
69

0025060606 HH COLLAR SCREW M6X60 TX30

HH COLLAR SCREW M6X60 TX30

560 ₽
