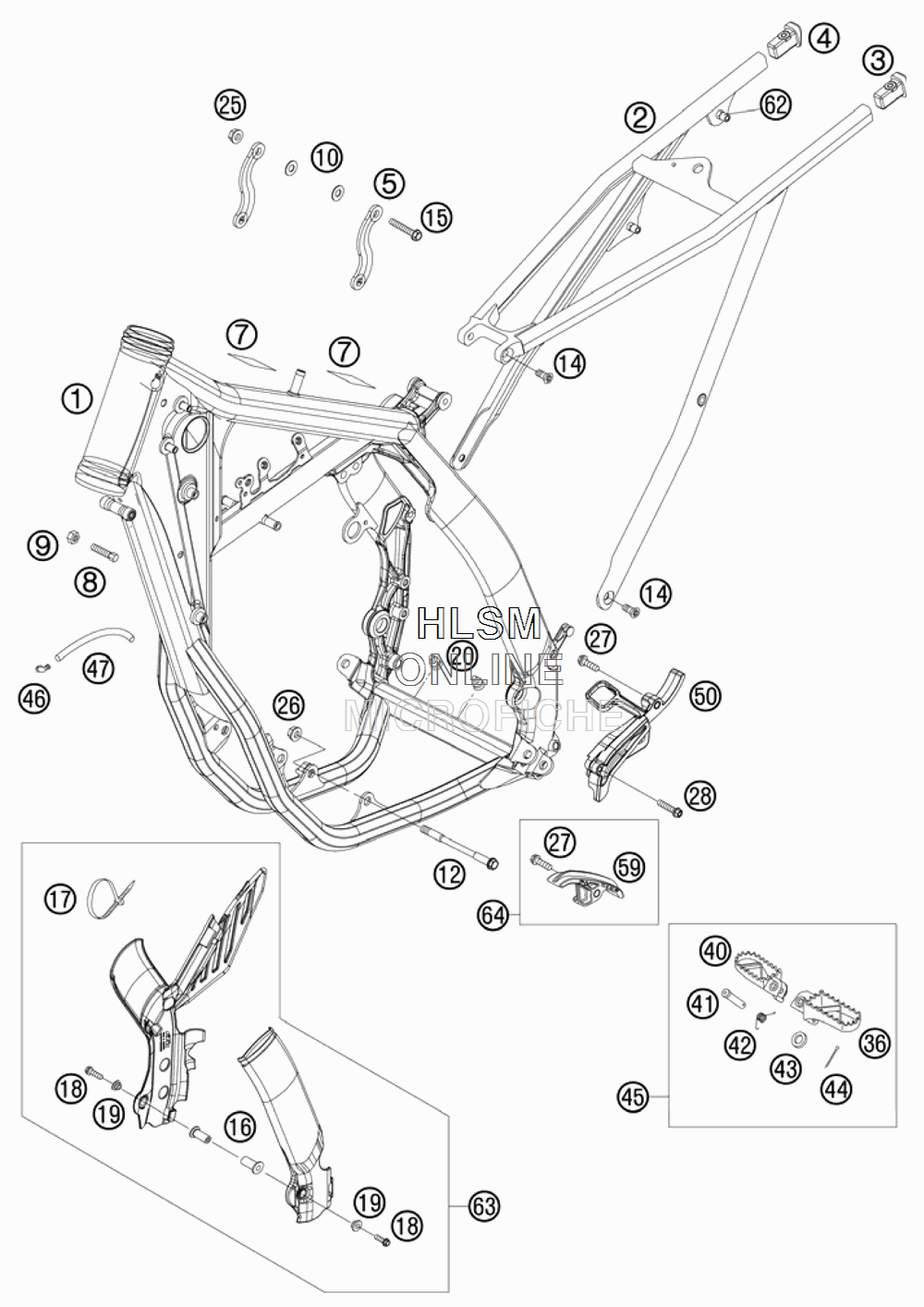

FRAME для Ktm 250 XCF-W SIX DAY - 2011 года выпуска

№

Артикул

Название
1

7700310110004 FRAME ORANGE "GB08"

FRAME ORANGE "GB08"

0 ₽
2

77303002000 SUB FRAME SX "Q7"

SUB FRAME SX "Q7"

95 960 ₽
3

78003002010 SUB FRAME APPLICATION LEFT

SUB FRAME APPLICATION LEFT

0 ₽
4

78003002020 SUB FRAME APPLICATION RIGHT

SUB FRAME APPLICATION RIGHT

0 ₽
5

77003113200 REINFORCING B. 250 SX-F

REINFORCING B. 250 SX-F

2 720 ₽
7

50307012000 ADH. FOIL TRANSP. 80X80 MM

ADH. FOIL TRANSP. 80X80 MM

330 ₽
8

59001037000 SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

560 ₽
9

0934080003 HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

320 ₽
10

77003013050 WASHER 8,5X18X1 INOX

WASHER 8,5X18X1 INOX

590 ₽
12

54603013000 ENGINE BRAC.SCR. M10X105 WS=13

ENGINE BRAC.SCR. M10X105 WS=13

2 980 ₽
14

0019080206S FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

440 ₽
15

56530079000 COLLAR SCREW M8X42 WS=13 10.9

COLLAR SCREW M8X42 WS=13 10.9

530 ₽
16

54803092050 BLIND PLUG-IN NUT M5 WN 22A

BLIND PLUG-IN NUT M5 WN 22A

1 170 ₽
17

44011076305 CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

290 ₽
18

0738050250 COU.SUNK SCR. AH ISO7380 M5X25

COU.SUNK SCR. AH ISO7380 M5X25

270 ₽
19

54803092060 BUSH F. FRAME PROTECTION

BUSH F. FRAME PROTECTION

820 ₽
20

54403135000 PLASTIC CAP SFL10

PLASTIC CAP SFL10

380 ₽
25

54310086200 SELF LOCKING NUT M8 10.9

SELF LOCKING NUT M8 10.9

500 ₽
26

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
27

0025080306 HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

700 ₽
28

0025060406 HH COLLAR SCREW M6X40 TX30

HH COLLAR SCREW M6X40 TX30

500 ₽
36

78003040050 FOOTREST L/S

FOOTREST L/S

11 770 ₽
40

78003041050 FOOTREST R/S

FOOTREST R/S

11 770 ₽
41

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
42

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
43

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
44

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
45

78003040033 FOOTREST L/S + R/S CPL.

FOOTREST L/S + R/S CPL.

31 340 ₽
46

50303089000 ANGLE PIECE

ANGLE PIECE

1 160 ₽
47

55007016001 PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

1 640 ₽
50

77003096000 SPROCKET COVER 250 SX-F

SPROCKET COVER 250 SX-F

3 300 ₽
59

77303053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 160 ₽
62

77303139000 BLIND RIVET NUT EM6-60LF/HX

BLIND RIVET NUT EM6-60LF/HX

880 ₽
63

77303094100 PLASTIC FRAME PROTECTION SET

PLASTIC FRAME PROTECTION SET

7 840 ₽
64

77303053010 CHAIN SLIDING P. BELOW CPL.

CHAIN SLIDING P. BELOW CPL.

2 640 ₽
