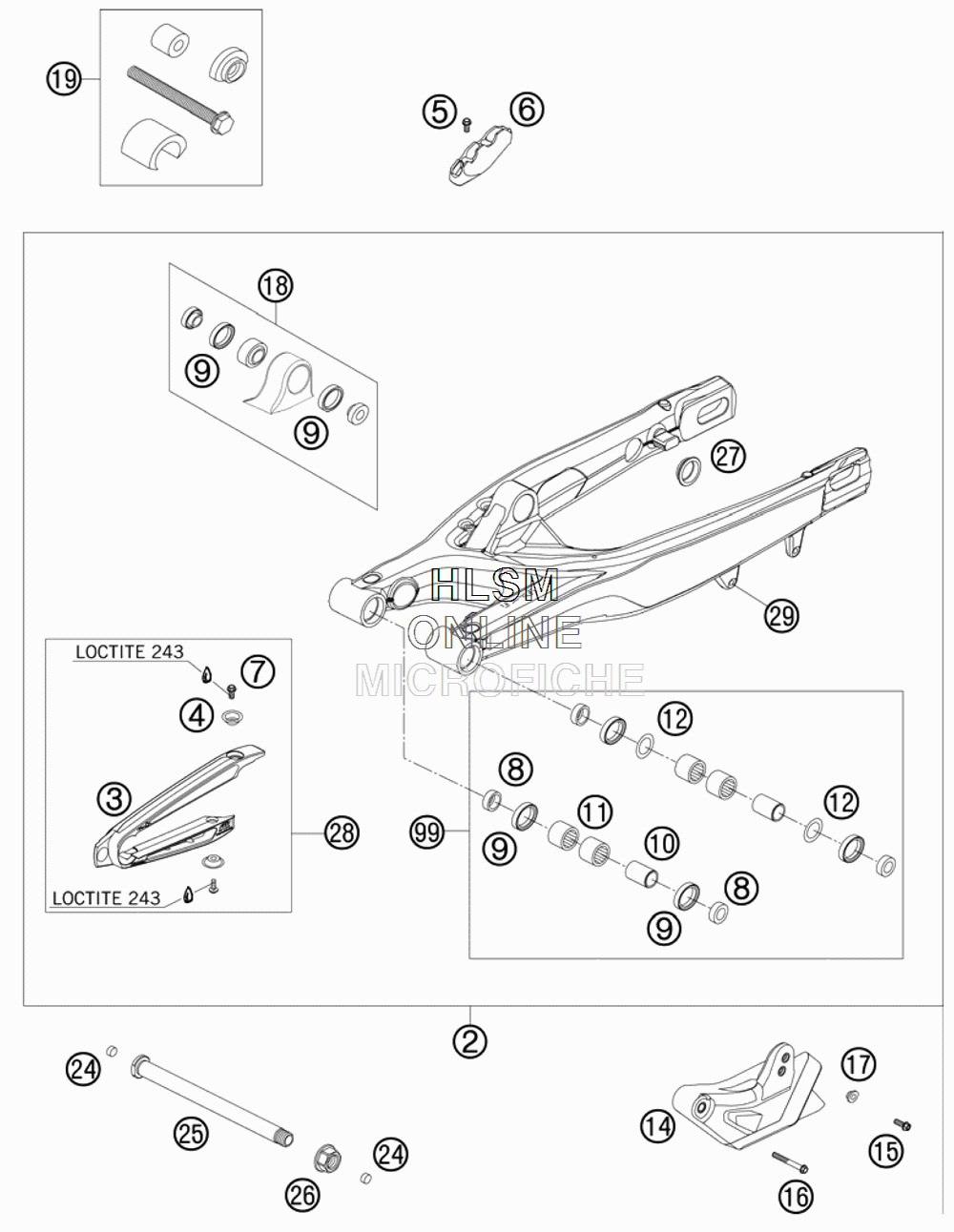

SWING ARM для Ktm 250 XCF-W SIX DAY - 2011 года выпуска

№

Артикул

Название
2

77304030044 SWINGARM CPL.

SWINGARM CPL.

170 ₽
3

77304066000 CHAIN SLIDING PROTECTION

CHAIN SLIDING PROTECTION

5 060 ₽
4

77304066050 BUSHING F. CHAIN SLIDING PR.

BUSHING F. CHAIN SLIDING PR.

530 ₽
5

0009050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
6

77313047000 BRAKE HOSE GUIDE LOWER

BRAKE HOSE GUIDE LOWER

1 230 ₽
7

59009062013 SPECIAL SCREW M6X13 WS=8 10.9

SPECIAL SCREW M6X13 WS=8 10.9

290 ₽
8

54804034000 BUCKET F. SHAFT SEAL RING

BUCKET F. SHAFT SEAL RING

1 330 ₽
9

0760253270 SHAFT SEAL RING 25X32X7

SHAFT SEAL RING 25X32X7

1 610 ₽
10

54804032000 BUSHING SLEEVE F. SWING ARM

BUSHING SLEEVE F. SWING ARM

2 680 ₽
11

58033097000 NEEDLE BEARING HK 2216

NEEDLE BEARING HK 2216

3 770 ₽
12

54603036000 STOP DISK 22,2X31,7X1

STOP DISK 22,2X31,7X1

440 ₽
14*

78004070100 CHAIN GUIDE CPL.

CHAIN GUIDE CPL.

11 440 ₽
15

59009062019 SPECIAL SCREW M6X19 WS=8 10.9

SPECIAL SCREW M6X19 WS=8 10.9

410 ₽
16

0025060456 HH COLLAR SCREW M6X45 TX30

HH COLLAR SCREW M6X45 TX30

470 ₽
17

77304070130 BUSH. F. CHAIN FAIL. PROT.

BUSH. F. CHAIN FAIL. PROT.

590 ₽
18*

50304090144 PIVOT BEARING + BUSH.PDS

PIVOT BEARING + BUSH.PDS

17 470 ₽
19

50329000044 TOOL BEARING MOUNTING PDS

TOOL BEARING MOUNTING PDS

145 420 ₽
24

55009086000 PLUG SFL13

PLUG SFL13

410 ₽
25

77304037000 SWINGARM BOLT M16X1,5

SWINGARM BOLT M16X1,5

13 080 ₽
26

54804038000 SELF LOCK.NUT M16X1,5 WS=19

SELF LOCK.NUT M16X1,5 WS=19

270 ₽
27

58404041100 CLOSING COVER ROUND

CLOSING COVER ROUND

240 ₽
28

77304066010 CHAIN GUARD CPL.

CHAIN GUARD CPL.

5 810 ₽
29

54603055051 PRESS IN NUT M6 STEEL ZINC

PRESS IN NUT M6 STEEL ZINC

270 ₽
99

54804230210 SWINGARM REPAIR KIT-10

SWINGARM REPAIR KIT-10

21 820 ₽
