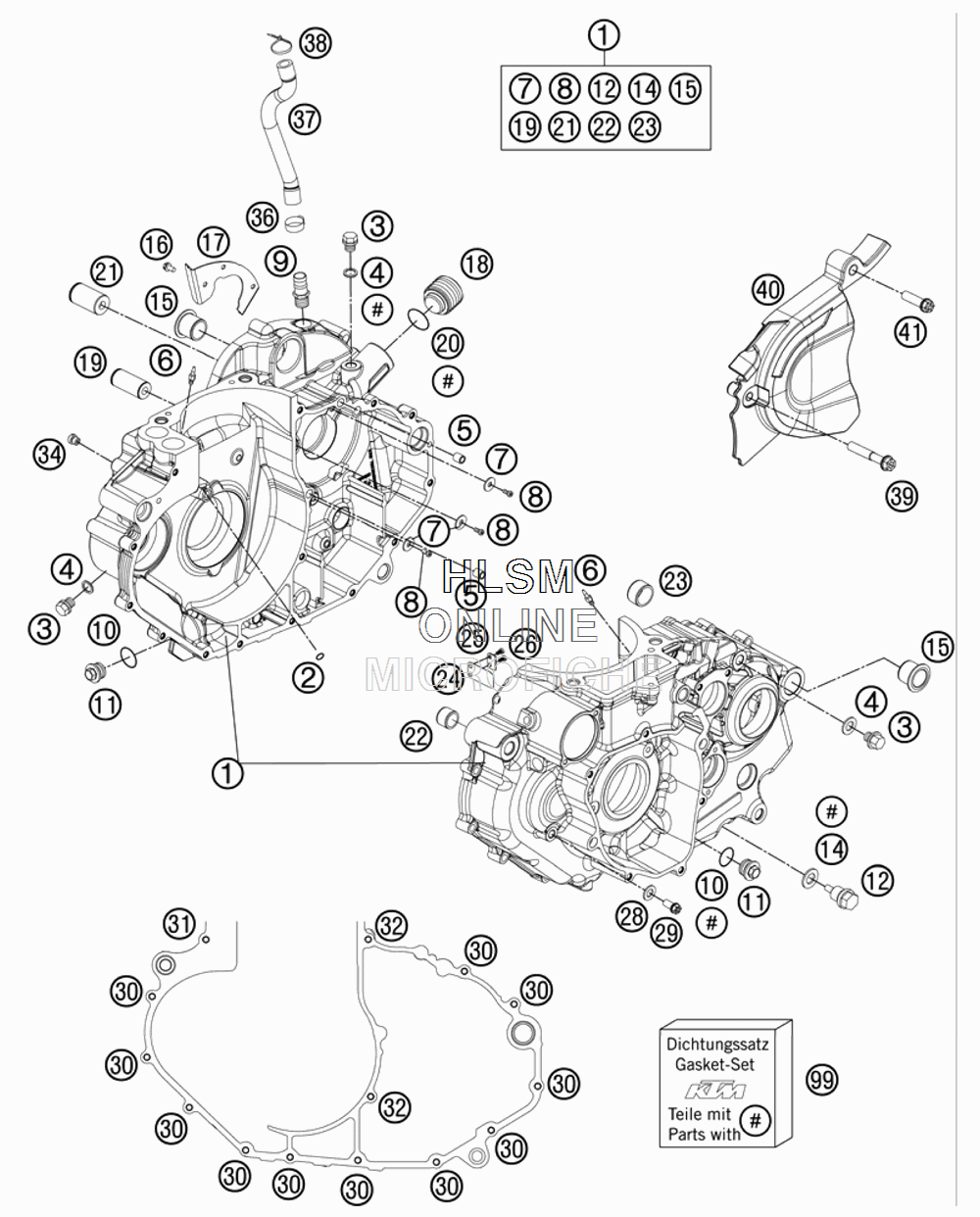

ENGINE CASE для Ktm 690 ENDURO - 2011 года выпуска

№

Артикул

Название
1

75030000233 ENGINE CASE CPL.W.BEAR.

ENGINE CASE CPL.W.BEAR.

340 ₽
2

0770060018 O-RING 6,00X1,78

O-RING 6,00X1,78

410 ₽
3

0910100003 PLUG DIN0910-M 10X1

PLUG DIN0910-M 10X1

790 ₽
4

0603100141 COPPER GASKET DIN7603-10X14X1

COPPER GASKET DIN7603-10X14X1

290 ₽
5

59030023000 DOWEL 6X8X11,5

DOWEL 6X8X11,5

910 ₽
6

60030064050 OIL JET 50 M6X0,75 WS8

OIL JET 50 M6X0,75 WS8

2 650 ₽
7

0021050003 WASHER DIN9021-A 5,3

WASHER DIN9021-A 5,3

120 ₽
8

073800501001 FLAT HEAD SCREW ISO 7380 M5X10

FLAT HEAD SCREW ISO 7380 M5X10

160 ₽
9

60030022000 VENTILATION CONNECTOR M16X1,5

VENTILATION CONNECTOR M16X1,5

1 900 ₽
10

0770020170 O-RING 17,17X1,78 GLO

O-RING 17,17X1,78 GLO

470 ₽
11

59038017000 PLUG M20X1,5 WS=13

PLUG M20X1,5 WS=13

1 810 ₽
12

58030021000 OILDRAIN PLUG W.MAG. M 12X1,5

OILDRAIN PLUG W.MAG. M 12X1,5

2 800 ₽
14

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
15

75030010000 CASE BUSH

CASE BUSH

1 960 ₽
16

07984050100 AH SCREW DIN7984 M5X10 A2

AH SCREW DIN7984 M5X10 A2

180 ₽
17

75030042000 COVER

COVER

5 230 ₽
18

75038048100 LOCK PIECE

LOCK PIECE

2 030 ₽
19

54633018400 BUSHING PIN

BUSHING PIN

5 910 ₽
20

0770180020 O-RING 18,00X2,00 NBR 70

O-RING 18,00X2,00 NBR 70

410 ₽
21

59040028000 BUSHING PIN

BUSHING PIN

2 390 ₽
22

51030026100 DOWEL 17 X 13 X 12

DOWEL 17 X 13 X 12

1 550 ₽
23

54830027000 DOWEL 21X12

DOWEL 21X12

1 290 ₽
24

75030003051 MEMBRANE

MEMBRANE

180 ₽
25

75030003050 STOP SHEET MEMBRANE

STOP SHEET MEMBRANE

320 ₽
26

0458030080 CYLIND.SCREW M3X8 ISO 14580 SS

CYLIND.SCREW M3X8 ISO 14580 SS

640 ₽
28

0603082121 SEAL RING CU DIN7603- 8X12X1

SEAL RING CU DIN7603- 8X12X1

760 ₽
29

0025080166 HH COLLAR SCREW M8X16 TX40

HH COLLAR SCREW M8X16 TX40

760 ₽
30

0025060306 HH COLLAR SCREW M6X30 TX30

HH COLLAR SCREW M6X30 TX30

560 ₽
31

0025060256 HH COLLAR SCREW M6X25 TX30

HH COLLAR SCREW M6X25 TX30

560 ₽
32

0025060706 HH COLLAR SCREW M6X70 TX30

HH COLLAR SCREW M6X70 TX30

530 ₽
34

75030058000 JET 125

JET 125

1 010 ₽
36

00049220121 CLAMP STD DN22

CLAMP STD DN22

290 ₽
37

76530089000 OIL HOSE BLEEDER FLANGE

OIL HOSE BLEEDER FLANGE

6 870 ₽
38

44011076200 CABLE TIE 200/3,6MM BLACK

CABLE TIE 200/3,6MM BLACK

120 ₽
39

0025060406 HH COLLAR SCREW W M6X 40 TX30

HH COLLAR SCREW W M6X 40 TX30

500 ₽
40

76530060044 CHAIN GUARD CPL.

CHAIN GUARD CPL.

3 300 ₽
41

0025080356 HH COLLAR SCREW M8X35 TX40

HH COLLAR SCREW M8X35 TX40

930 ₽
99

75030099000 GASKET SET

GASKET SET

47 400 ₽
