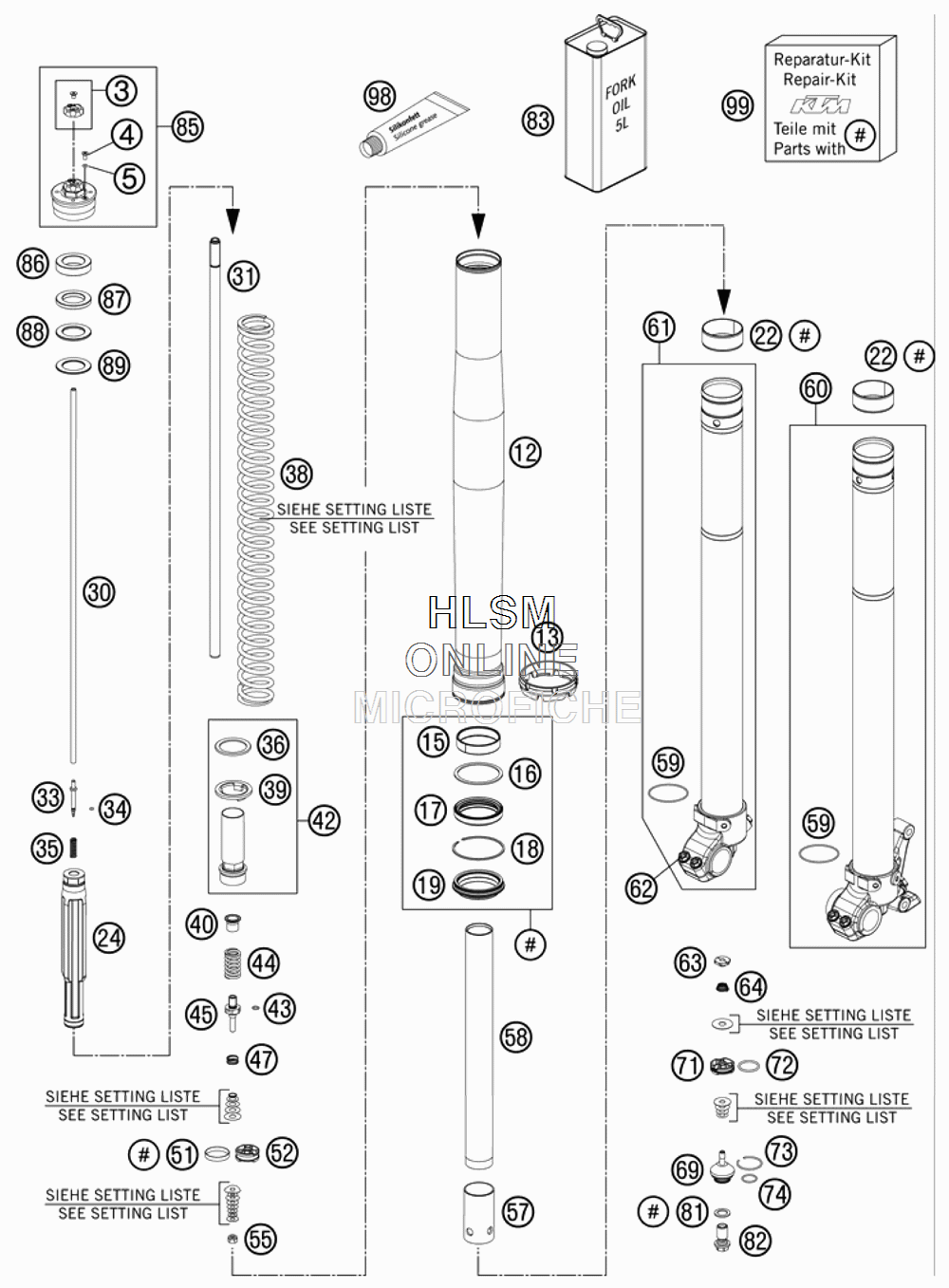

FRONT FORK DISASSEMBLED для Ktm 690 ENDURO - 2011 года выпуска

№

Артикул

Название
3

48600564S SETTING KNOB + SCREW

SETTING KNOB + SCREW

8 470 ₽
4

48600058 VENT SCREW M4X6

VENT SCREW M4X6

310 ₽
5

48600009 O-RING NBR 3,7X1,6

O-RING NBR 3,7X1,6

60 ₽
12

48600761 OUTER TUBE L577 D54/60MM

OUTER TUBE L577 D54/60MM

74 010 ₽
13

48600698 FORK PROTECTION RING

FORK PROTECTION RING

2 140 ₽
15

48600429 DU-BUSH D48XD52X12DDL02

DU-BUSH D48XD52X12DDL02

3 240 ₽
16

48600013 SUPPORT RING 50 X 57,6 X 1,5

SUPPORT RING 50 X 57,6 X 1,5

610 ₽
17

48600347 OIL SEAL RING 48X57,8X9,5 03

OIL SEAL RING 48X57,8X9,5 03

5 140 ₽
18

48600070 LOCK WASHER SB58

LOCK WASHER SB58

350 ₽
19

48600400 DUST CAP D=48 58,4X11,8

DUST CAP D=48 58,4X11,8

4 590 ₽
22

48600428 DU-BUSH D47XD49X20DDL02

DU-BUSH D47XD49X20DDL02

3 240 ₽
24

48600557S HYDR.STOP L=200 D=31,9 CPL.

HYDR.STOP L=200 D=31,9 CPL.

10 530 ₽
30

48600562 ADJUSTMENT TUBE L=495

ADJUSTMENT TUBE L=495

3 640 ₽
31

48600561 PISTON ROD D=12 L=529 ALU

PISTON ROD D=12 L=529 ALU

79 170 ₽
33

48600277 ADJUSTER NEEDLE

ADJUSTER NEEDLE

1 240 ₽
34

48600298 O-RING 2X1,5 NBR

O-RING 2X1,5 NBR

60 ₽
35

48600444 REBOUND SPRING C=4N/MM

REBOUND SPRING C=4N/MM

620 ₽
36

48600113 WASHER 32X42X2,5

WASHER 32X42X2,5

3 010 ₽
38

91410010S SPRING D43.2 L485 5.2N/MM

SPRING D43.2 L485 5.2N/MM

39 430 ₽
38

91410021S SPRING D43.2L485 5.0N/MM D43.2

SPRING D43.2L485 5.0N/MM D43.2

58 120 ₽
38

91410065S SPRING D43.2L465 5.4N/MM D5.25

SPRING D43.2L465 5.4N/MM D5.25

39 430 ₽
39

48600021 INTERM. RING 26,2 X 43 X 3

INTERM. RING 26,2 X 43 X 3

4 510 ₽
40

48600525 GUIDING BUSH REBOUND SPRING

GUIDING BUSH REBOUND SPRING

310 ₽
42

48600762S SCREW SLEEVE M27X,08 L=100 KPL

SCREW SLEEVE M27X,08 L=100 KPL

7 330 ₽
43

48600299 O-RING 6X1,2 NBR

O-RING 6X1,2 NBR

30 ₽
44

48600511 REBOUND SPRING L=32 C=17

REBOUND SPRING L=32 C=17

630 ₽
45

48600576 PISTON ROD REBOUND

PISTON ROD REBOUND

2 230 ₽
47

48600382 SHUTTLE VALVE SPRING C=0,4

SHUTTLE VALVE SPRING C=0,4

370 ₽
51

48600455 PISTON RING 5X1X68

PISTON RING 5X1X68

3 790 ₽
52

48600575 PISTON REBOUND

PISTON REBOUND

3 400 ₽
55

40540486 NUT M6X0,5 REBOUND

NUT M6X0,5 REBOUND

920 ₽
57

48600884 ADAPTER BUSHING D23/D28

ADAPTER BUSHING D23/D28

8 760 ₽
58

48600763 PIPE D23/L350

PIPE D23/L350

17 330 ₽
59

48600048 O-RING NBR 46 X 2

O-RING NBR 46 X 2

540 ₽
60

48600881S1 AXLE CLAMP L/S + TUB E CPL.

AXLE CLAMP L/S + TUB E CPL.

165 880 ₽
61

48600882S1 AXLE CLAMP R/S + TUBE CPL.

AXLE CLAMP R/S + TUBE CPL.

165 880 ₽
62

0025080256 HH COLLAR SCREW M8X25 TX40

HH COLLAR SCREW M8X25 TX40

300 ₽
63

48600163 CHECK VALVE NUT M6X0,5 D=2

CHECK VALVE NUT M6X0,5 D=2

720 ₽
64

48600202 SPRING CHECK VALVE D=0,7

SPRING CHECK VALVE D=0,7

310 ₽
69

48600177 TAP COMPRESSION

TAP COMPRESSION

7 010 ₽
71

48600047 PISTON COMPRESSION D=27,9

PISTON COMPRESSION D=27,9

2 250 ₽
72

46811499 O-RING NBR 21X2

O-RING NBR 21X2

60 ₽
73

43570175 COPPER WASHER 29,8X1,6

COPPER WASHER 29,8X1,6

520 ₽
74

43570180 O-RING NBR 15X1,5

O-RING NBR 15X1,5

350 ₽
81

48600704 SEALING RING COPPER 12X18X1,5

SEALING RING COPPER 12X18X1,5

350 ₽
82

48600176 BOLT M12X1 D=3

BOLT M12X1 D=3

6 510 ₽
83

48600765S1 FORK OIL SAE5 5L

FORK OIL SAE5 5L

47 770 ₽
85

48600558S SCREW CAP M51X1,5 CPL.

SCREW CAP M51X1,5 CPL.

19 450 ₽
86

48600038 SPACER 42X26,5X10

SPACER 42X26,5X10

560 ₽
87

48600037 SPACER 42X26,5X5

SPACER 42X26,5X5

800 ₽
88

48600036 SPACER 42X26,5X2,5

SPACER 42X26,5X2,5

440 ₽
89

48600053 SPACER 42X26,5X1,5

SPACER 42X26,5X1,5

800 ₽
98

T511 SILICONE GREASE F. DUST STRIPE

SILICONE GREASE F. DUST STRIPE

5 410 ₽
99

R14016 REPAIR-KIT FRONT FORK

REPAIR-KIT FRONT FORK

35 890 ₽
