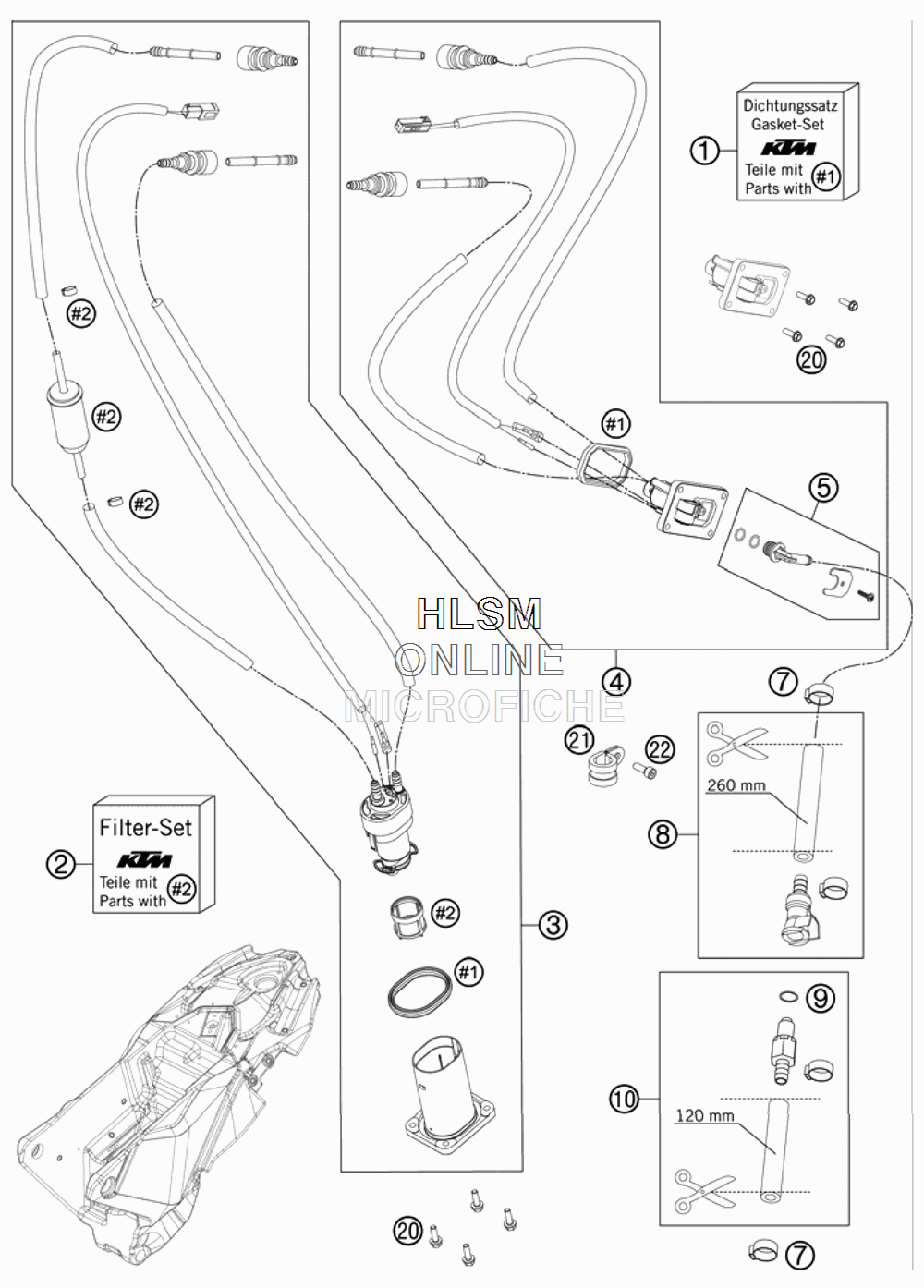

FUEL PUMP для Ktm 690 ENDURO - 2011 года выпуска
-
№АртикулНазвание
-
175007089000 SEALINGS KITSEALINGS KIT
-
275007090000 FILTER KITFILTER KIT
-
375007088011 FUEL PUMP WITH FLANGE CPL.FUEL PUMP WITH FLANGE CPL.
-
475007088012 PRESSURE REGULATOR CPL.PRESSURE REGULATOR CPL.
-
575007092000 HYDRAULIC CONNECTOR CPL.HYDRAULIC CONNECTOR CPL.
-
700050157706 VARIABLE ONE-EAR CLAMP 15,7MMVARIABLE ONE-EAR CLAMP 15,7MM
-
875007116060 FUEL HOSE WITH CLUTCHFUEL HOSE WITH CLUTCH
-
958507012000 O-RING VITON F. PLUG CPCO-RING VITON F. PLUG CPC
-
1075007016050 FUEL HOSE WITH CLUTCHFUEL HOSE WITH CLUTCH
-
200025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
2149007439000 CLAMP RSGU 15/12CLAMP RSGU 15/12
-
220912040123 AH SCREW DIN0912-12-M 4X12AH SCREW DIN0912-12-M 4X12
