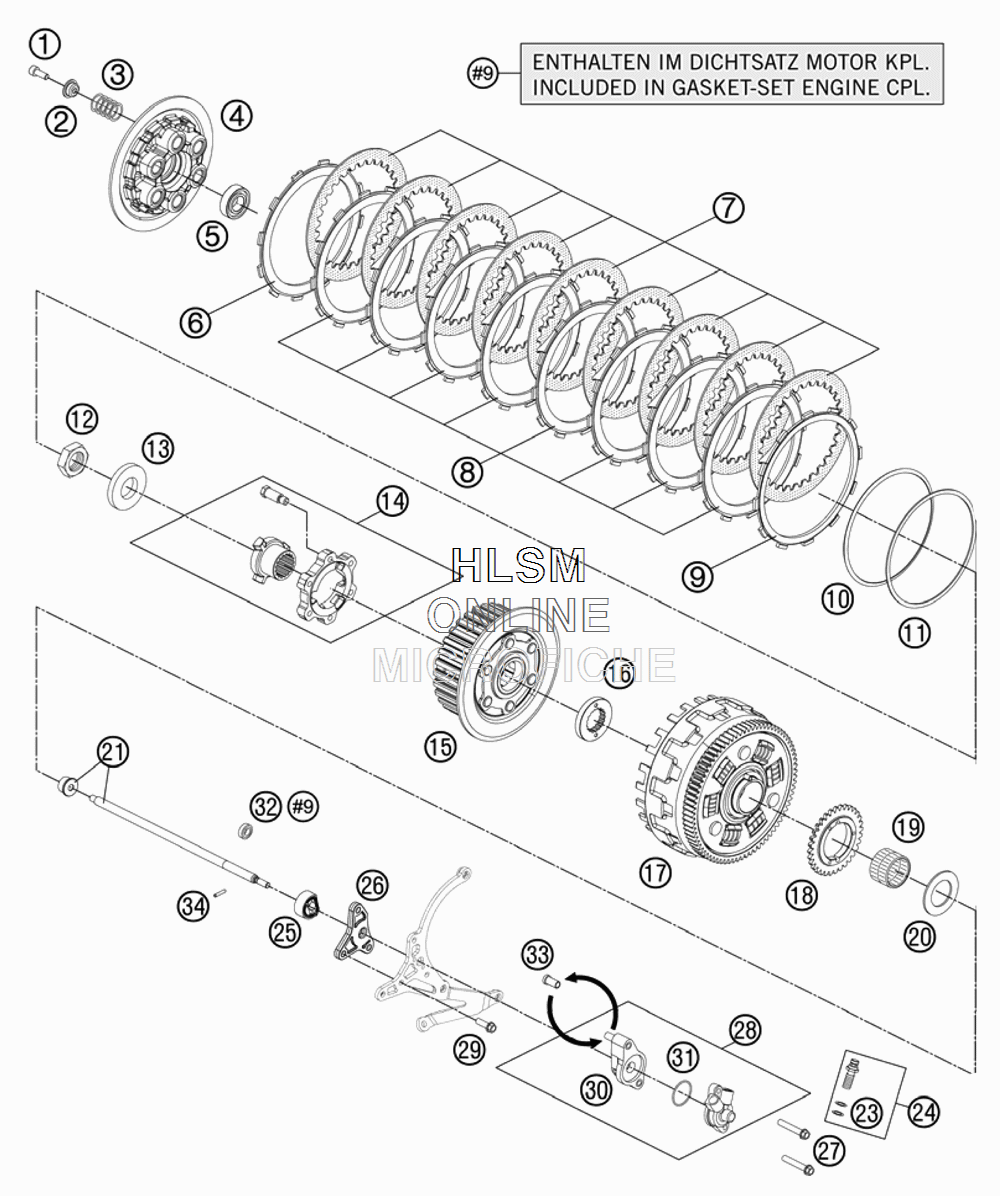

CLUTCH для Ktm 990 RC8R SUPER DUKE BLACK - 2011 года выпуска
-
№АртикулНазвание
-
10984060162 AH SCREW DIN7984-M 6X16AH SCREW DIN7984-M 6X16
-
261232006000 SPRING RETAINER STEPPEDSPRING RETAINER STEPPED
-
369132005000 CLUTCH SPRING D2,7/35MM PINKCLUTCH SPRING D2,7/35MM PINK
-
461232003000 PRESSURE CAPPRESSURE CAP
-
50625060032 BALL BEARING 6003 JR2 C4BALL BEARING 6003 JR2 C4
-
661232111000 LINING DISK OUTSIDE 3MMLINING DISK OUTSIDE 3MM
-
769132010000 INTERMEDIATE DISKINTERMEDIATE DISK
-
861232011000 LINING DISK 3MMLINING DISK 3MM
-
961232012000 LINING DISK INSIDE 3,8MMLINING DISK INSIDE 3,8MM
-
1061232034000 BELLEVILLE SPRINGBELLEVILLE SPRING
-
1161232035000 BEARING RINGBEARING RING
-
120936220155 HEXAGON NUT DIN0936-M22X1,5 R.HEXAGON NUT DIN0936-M22X1,5 R.
-
130126220373 % WASHER DIN0126 22X37X3 MM% WASHER DIN0126 22X37X3 MM
-
1460032080000 CLUTCH BOOSTER UNIT CPL.CLUTCH BOOSTER UNIT CPL.
-
1561232002000 CLUTCH TAPPET CPL.CLUTCH TAPPET CPL.
-
1660032021000 SECTION WASHERSECTION WASHER
-
1769132001044 CLUTCH CAGE CPL.CLUTCH CAGE CPL.
-
1860038001132 OIL PUMP GEAR WHEEL 32-TOIL PUMP GEAR WHEEL 32-T
-
190618303526 NEEDLE BUSH HK 30X35X26NEEDLE BUSH HK 30X35X26
-
2060032020000 STOP DISK 30,2/50/2STOP DISK 30,2/50/2
-
2161232054000 PUSH ROD CPL. 2-PARTSPUSH ROD CPL. 2-PARTS
-
230603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2450332062000 HOLLOW SCREW CPL. M 10X1HOLLOW SCREW CPL. M 10X1
-
2561232069000 PUSH ROD GUIDEPUSH ROD GUIDE
-
2661232068100 DISTANCE PLATE 7MMDISTANCE PLATE 7MM
-
270025060506 HH COLLAR SCREW M6X50 TX30HH COLLAR SCREW M6X50 TX30
-
2860032061244 CYLINDER CPL. LC8CYLINDER CPL. LC8
-
290025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
3060032061050 DISTANCE CLUTCH CONTR. CPL.DISTANCE CLUTCH CONTR. CPL.
-
3160032065000 O-RING GASKETO-RING GASKET
-
320760091862 SHAFT SEAL RING 9X18X06 B-NBRSHAFT SEAL RING 9X18X06 B-NBR
-
3361232061051 SLEEVE CLUTCH CONTR.SLEEVE CLUTCH CONTR.
-
340402031780 NEEDLE ROL.DIN5402 RB 3X17,8NEEDLE ROL.DIN5402 RB 3X17,8
