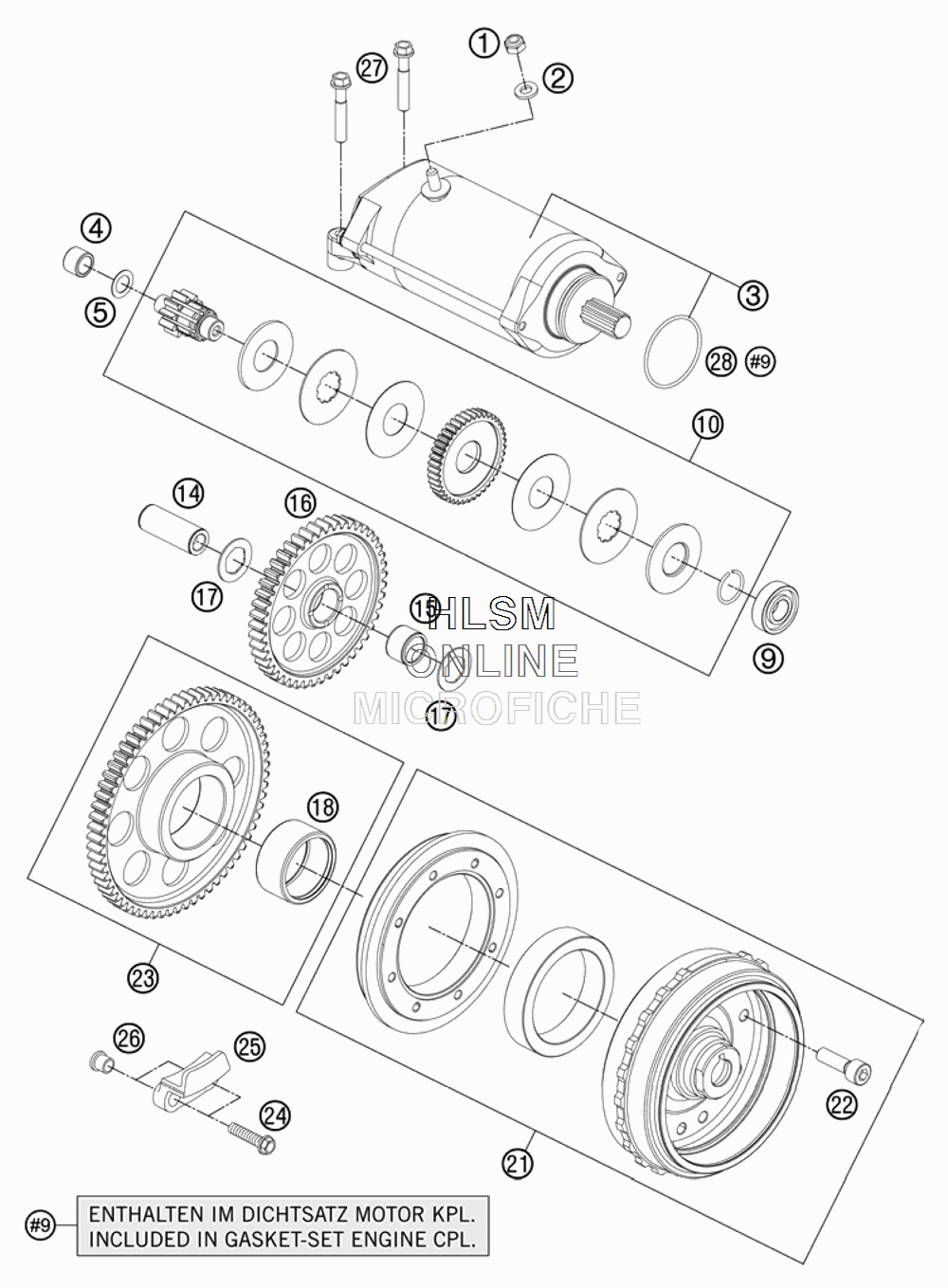

ELECTRIC STARTER для Ktm 990 RC8R SUPER DUKE BLACK - 2011 года выпуска
-
№АртикулНазвание
-
10985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
20125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
361240001000 E-STARTER ENGINE 9TE-STARTER ENGINE 9T
-
40618101410 NEEDLE SLEEVE HK 1010 10/14/10NEEDLE SLEEVE HK 1010 10/14/10
-
560038007010 WASHER 10X16X0,5WASHER 10X16X0,5
-
90625060016 GROOV.BALL BEAR. 6001.2RSR C3GROOV.BALL BEAR. 6001.2RSR C3
-
1061240017100 TORQUE LIMITER 10/45 CPL.TORQUE LIMITER 10/45 CPL.
-
1461230058050 BEARING BOLT 15X39BEARING BOLT 15X39
-
150405151913 NEEDLE BEARING K 15X19X13NEEDLE BEARING K 15X19X13
-
1661240022100 INTERMEDIATE GEAR 43TINTERMEDIATE GEAR 43T
-
1761230057060 STOP DISK 15,2X25X1STOP DISK 15,2X25X1
-
180618354220 NEEDLE BUSH HK3520 35/42/20NEEDLE BUSH HK3520 35/42/20
-
2160239105000 ROTORROTOR
-
220912060203 AH SCREW DIN0912-M 6X20AH SCREW DIN0912-M 6X20
-
2361240020300 FREEWHEEL GEAR 66-TFREEWHEEL GEAR 66-T
-
240025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
2560040027000 FREEWHEEL HOLDERFREEWHEEL HOLDER
-
2660040027050 SUPPORTING SLEEVESUPPORTING SLEEVE
-
270025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
280770033020 O-RING 33,75X2,00O-RING 33,75X2,00
