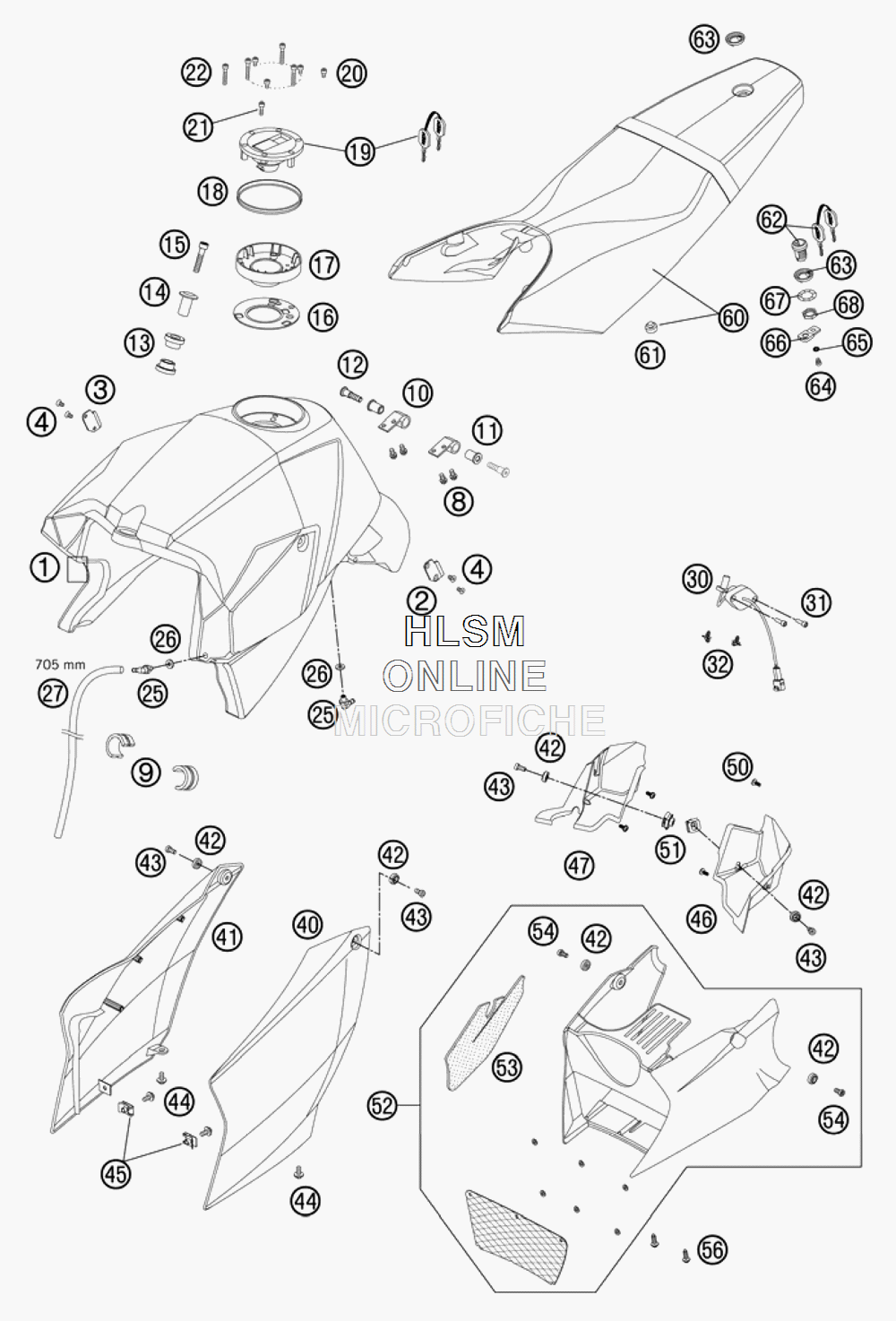

TANK SEAT COVER для Ktm 990 RC8R SUPER DUKE BLACK - 2011 года выпуска
-
№АртикулНазвание
-
16110701300030A FUEL TANK BLACK BRILLANTFUEL TANK BLACK BRILLANT
-
261007041000 BRACKET SEAT L/SBRACKET SEAT L/S
-
361007042000 BRACKET SEAT R/SBRACKET SEAT R/S
-
40991050102 FLAT H.SCEW DIN7991-M5X10 10.9FLAT H.SCEW DIN7991-M5X10 10.9
-
80025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
961007014000 SPACER FUEL TANKSPACER FUEL TANK
-
1061007025000 BRACKET FUEL TANKBRACKET FUEL TANK
-
1161007027000 RUBBER BEARING FUEL TANKRUBBER BEARING FUEL TANK
-
1261007026000 SPECIAL SCREW M10X36 AHSPECIAL SCREW M10X36 AH
-
1361007065000 TANK RUBBER BUSHING FRONTTANK RUBBER BUSHING FRONT
-
1461007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
150912080403 AH SCREW DIN912 M8X40AH SCREW DIN912 M8X40
-
1660007008051 SEAL. FLANGE F.TANK INSERTSEAL. FLANGE F.TANK INSERT
-
1760007008150 TANK INSERTTANK INSERT
-
1860007008052 SEAL. RING F. TANK INSERTSEAL. RING F. TANK INSERT
-
1961007008000 TANK PLUG CPL.TANK PLUG CPL.
-
200912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
210912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
220912050303 AH SCREW DIN0912-M 5X30AH SCREW DIN0912-M 5X30
-
2560007024000 CONNECT.PIECE F.OVERFLOW M7CONNECT.PIECE F.OVERFLOW M7
-
2660007024050 GASKET FOR CONNECTING PIECEGASKET FOR CONNECTING PIECE
-
2760007026001 HOSE NBR 5,4X9,4 PER METERHOSE NBR 5,4X9,4 PER METER
-
3058207080200 GAS LEVEL SENSORGAS LEVEL SENSOR
-
310912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
3261011094000 CABLE TIE WITH PLUG M6CABLE TIE WITH PLUG M6
-
406110805000030A SPOILER L/S BLACK BRILLANT WITH DECALSPOILER L/S BLACK BRILLANT WITH DECAL
-
416110805100030A SPOILER R/S BLACK BRILLANT WITH DECALSPOILER R/S BLACK BRILLANT WITH DECAL
-
4260008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
430984060163 AH SCREW DIN6912-M 6X16AH SCREW DIN6912-M 6X16
-
440024060136 HH COLLAR SCREW M6X13 TX30HH COLLAR SCREW M6X13 TX30
-
4554603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
4661108050050 INNER COVER SPOILER LEFTINNER COVER SPOILER LEFT
-
4761108051050 INNER COVER SPOILER RIGHTINNER COVER SPOILER RIGHT
-
500081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
5150235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
526100802014420C FRONT SPOILER CPL. WITH DECALFRONT SPOILER CPL. WITH DECAL
-
5361008020150 THERMAL PROTECTION FOILTHERMAL PROTECTION FOIL
-
540012060164 AH SCREW DIN6912 M6X16 SLAH SCREW DIN6912 M6X16 SL
-
560017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
606100704000047A SEAT BLACK W/ GREY LOGOSEAT BLACK W/ GREY LOGO
-
6158407040060 PLUG FOR SEATPLUG FOR SEAT
-
6261007050000 SEAT LOCKSEAT LOCK
-
6361007052000 SPACER RING SEAT LOCKSPACER RING SEAT LOCK
-
6461007050020 SCREW M4 AF32SCREW M4 AF32
-
6561007050010 WASHER AF150WASHER AF150
-
6661007050040 CLOSING PANEL TR248CLOSING PANEL TR248
-
6761007050050 WASHER TR12.01WASHER TR12.01
-
6861007050030 NUT M19 X1 AF36NUT M19 X1 AF36
