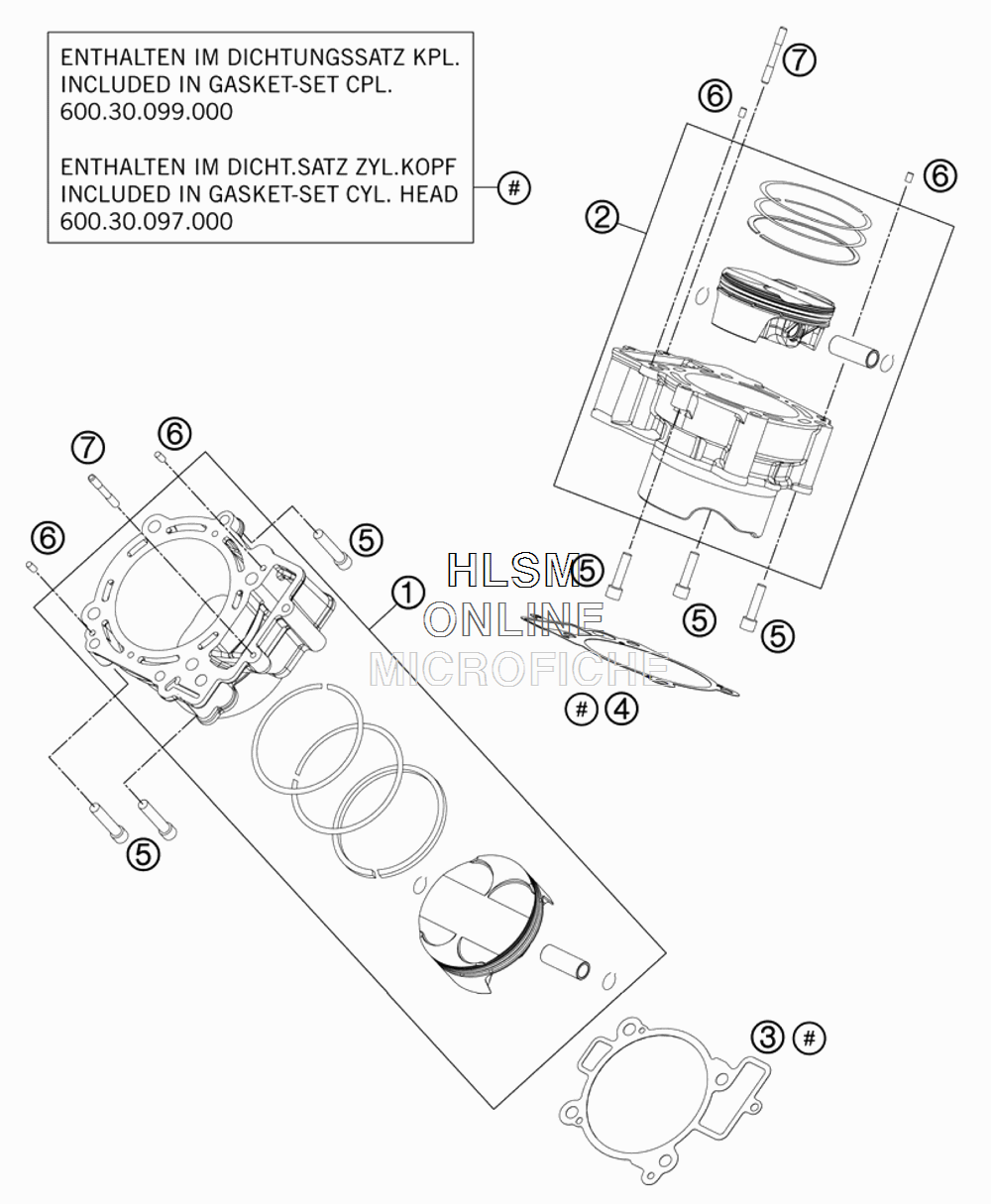

CYLINDER для Ktm 990 SMT - 2011 года выпуска
-
№АртикулНазвание
-
16103003810023 CYLINDER + PISTON CPL. FRONTCYLINDER + PISTON CPL. FRONT
-
26103013810023 CYLINDER + PISTON CPL. REARCYLINDER + PISTON CPL. REAR
-
360030035000 CYLINDER-BASE GASKET FR 0,35MMCYLINDER-BASE GASKET FR 0,35MM
-
460030135000 CYLINDER-BASE GASKET RR 0,35MMCYLINDER-BASE GASKET RR 0,35MM
-
50912080353 AH SCREW DIN0912-M 8X35AH SCREW DIN0912-M 8X35
-
60474050100 GROOVED PIN DIN1474 5X10GROOVED PIN DIN1474 5X10
-
760030043020 STUD M6X47STUD M6X47
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER BOX
- ANTI-SKID SYSTEM ABS
- BALANCER SHAFT
- BATTERY
- BREAK CALIPER FRONT
- BREAK CALIPER REAR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT PISTON
- • CYLINDER
- CYLINDER HEAD FRONT
- CYLINDER HEAD REAR
- DECAL
- DIAGNOSTIC TOOL
- ELECTRIC STARTER
- ENGINE CASE
- EVAPORATE CANISTER
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- FUEL PUMP
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- HEADLIGHT - TAILLIGHT - TURNSIGNALS
- IGNITON SYSTEM
- INSTRUMENTS - LOCK SYSTEM
- LUBRICATING SYSTEM
- MASK FENDER
- MONOSHOCK
- MONOSHOCK DISASSEMBLED
- REAR BRAKE CONTROL
- REAR WHEEL
- SECUNDARY AIR SYSTEM SLS
- SHIFTING MECHANISM
- SIDE STAND
- SWING ARM
- TANK SEAT COVER
- THROTTLE BODY
- TIMING DRIVE
- TRANSMISSION - COUNTER SHAFT
- TRANSMISSION - MAIN SHAFT
- VALVE DRIVE
- WATER PUMP
- WIRING HARNESS
