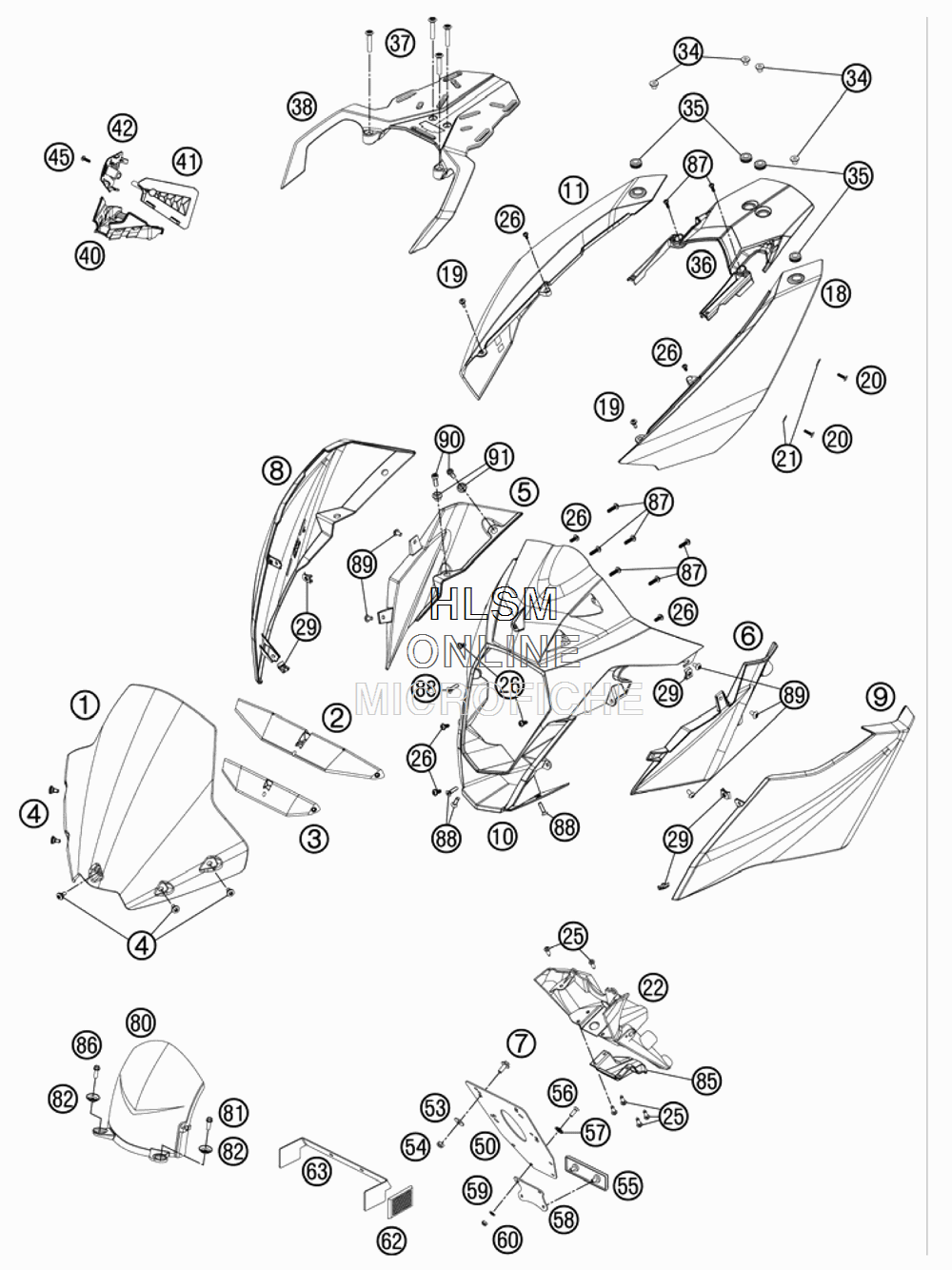

MASK FENDER для Ktm 990 SMT - 2011 года выпуска
-
№АртикулНазвание
-
162008108000 WIND SHIELD USAWIND SHIELD USA
-
262008008050 WIND SHIELD SUPPORT UPPERWIND SHIELD SUPPORT UPPER
-
362008008060 WIND SHIELD SUPPORT LOWERWIND SHIELD SUPPORT LOWER
-
469008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
562008003050 MASKSPOILER INNER PART R/SMASKSPOILER INNER PART R/S
-
662008002050 MASKSPOILER INNER PART L/SMASKSPOILER INNER PART L/S
-
70024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
86200800300028A MASK SPOILER R/SMASK SPOILER R/S
-
96200800200028A MASK SPOILER L/SMASK SPOILER L/S
-
106200800100030 HEADLIGHT MASKHEADLIGHT MASK
-
116260804210030B SIDE COV. R/S REAR BLACK-BRILLSIDE COV. R/S REAR BLACK-BRILL
-
186260804110030B SIDE COV. L/S REAR BLACK/BRILLSIDE COV. L/S REAR BLACK/BRILL
-
1969008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
-
2062008043000 EJOT ALTRACS SCHR.WN5151 50X16EJOT ALTRACS SCHR.WN5151 50X16
-
2175008023000 WASHER REAR-UT D=14MMWASHER REAR-UT D=14MM
-
2262508015000 NUMB.PLATE CARRIER 05NUMB.PLATE CARRIER 05
-
230024060136 HH COLLAR SCREW M6X13 TX30HH COLLAR SCREW M6X13 TX30
-
250017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
260081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
2969008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
3460012008002 COLLAR BUSHING 8,2X12X20X9COLLAR BUSHING 8,2X12X20X9
-
3541001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
366260801310030 REAR FENDER BLACKREAR FENDER BLACK
-
370019080456 COUNTERSUNK SCREW ISA45 M5X45COUNTERSUNK SCREW ISA45 M5X45
-
3862012010033 BAGGAGE CARRIER CPLBAGGAGE CARRIER CPL
-
4060003087000 SPLASH PROTECTOR FRAMESPLASH PROTECTOR FRAME
-
4162603085000 COVER STEARING HEAD UP.L/SCOVER STEARING HEAD UP.L/S
-
4262603086100 COVER STEARING HEAD UP.R/SCOVER STEARING HEAD UP.R/S
-
450081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
5060012081200 LICENCE FITTINGLICENCE FITTING
-
530021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
540985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
5558412080000 REFLECTOR RED LC4REFLECTOR RED LC4
-
560966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
5740006006000 WASHER 6MMWASHER 6MM
-
5858412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
590125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
600985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
6216512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
-
6362512081000 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
8061008014000 SPLASH PROTECT.SPLASH PROTECT.
-
8159009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
8272210079000 BUCKETBUCKET
-
8562608015001 COVER NUMB. PLATE CARRIERCOVER NUMB. PLATE CARRIER
-
8659009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
870081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
880019050201 COUNTERSUNK SCREW ISA25 M5X20COUNTERSUNK SCREW ISA25 M5X20
-
8958605083010 SCREW TORX M5X10SCREW TORX M5X10
-
90014580060166 CYL. SCREW DIN14580 M 6X16CYL. SCREW DIN14580 M 6X16
-
9175001094010 BUSHING NG MUD FLAPBUSHING NG MUD FLAP
