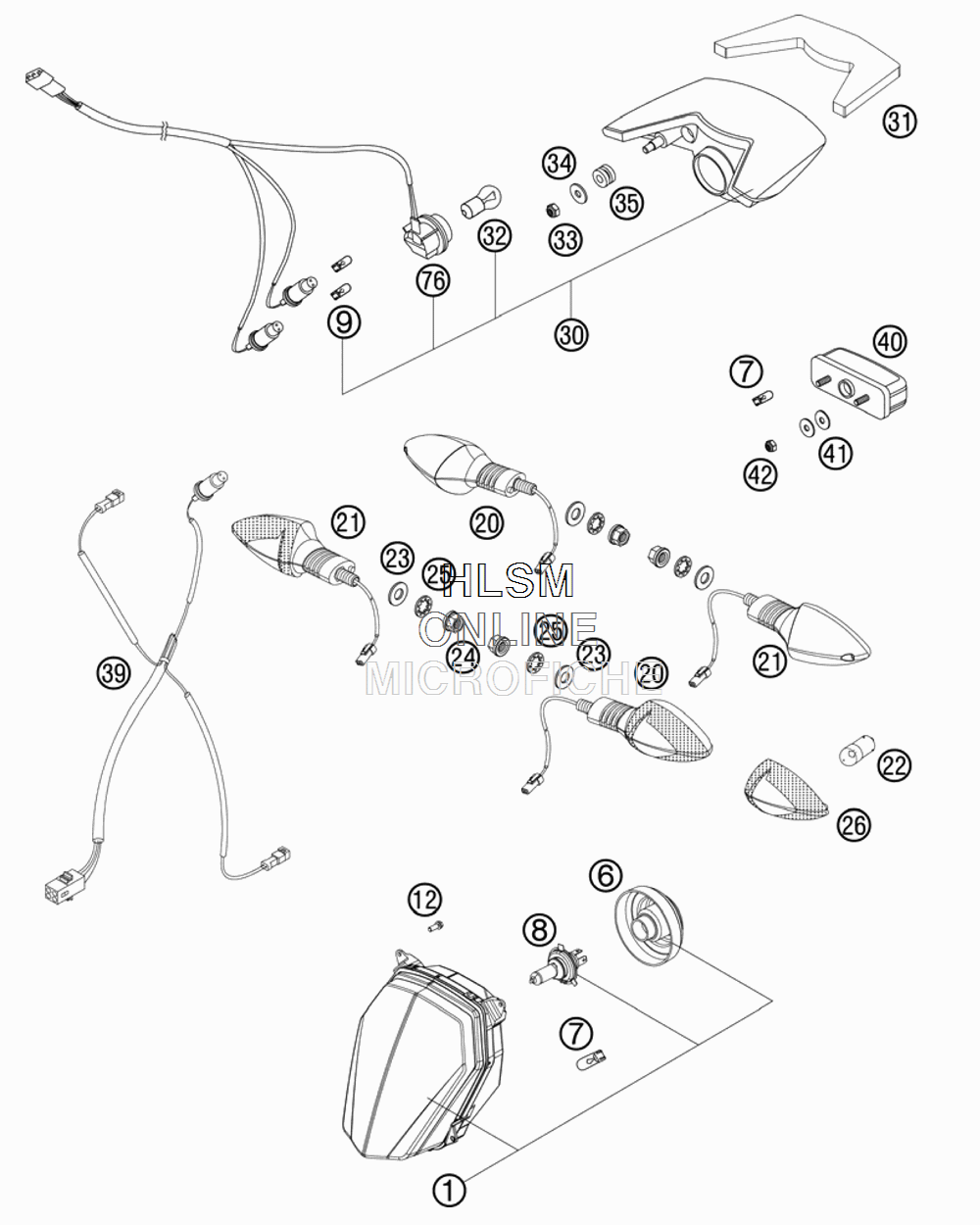

HEADLIGHT - TAILLIGHT - TURNSIGNALS для Ktm 990 SMT - 2011 года выпуска
-
№АртикулНазвание
-
162614001000 HEAD LIGHT RIGHT TR.HEAD LIGHT RIGHT TR.
-
676514001050 RUBBER CAP FOR HEAD LIGHTRUBBER CAP FOR HEAD LIGHT
-
749011435100 BULB 12V 5W (W2,1X9,5D) PHIL.BULB 12V 5W (W2,1X9,5D) PHIL.
-
857111038000 BULB H4 12V 60/55W (P43T)BULB H4 12V 60/55W (P43T)
-
949011435200 BULB RED WR5W 12VBULB RED WR5W 12V
-
120025050126 HH COLLAR SCREW M5X12 TX30HH COLLAR SCREW M5X12 TX30
-
2060114025000 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
2160114026000 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
2260114027000 BULB 12V ORANGE (RY10W)BULB 12V ORANGE (RY10W)
-
230433100003 WASHER 18X10,5X1,6WASHER 18X10,5X1,6
-
2458414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
250797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
2660114028000 FLASHER LENS L/S R/S TRANSP.FLASHER LENS L/S R/S TRANSP.
-
3058614040044 REAR LIGHT CPL. REDREAR LIGHT CPL. RED
-
3162614040050 METAMOLL FOR HEAD LIGHTMETAMOLL FOR HEAD LIGHT
-
3260014048100 BULB RED PR21W 12VBULB RED PR21W 12V
-
330985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
340021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
3558214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
3962611076000 WIRING HARNESS REARWIRING HARNESS REAR
-
4058414047000 LICENSE-PLATE ILLUMINATIONLICENSE-PLATE ILLUMINATION
-
410021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
420985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
7658611176100 CABLE HARNESS REAR PARTCABLE HARNESS REAR PART
