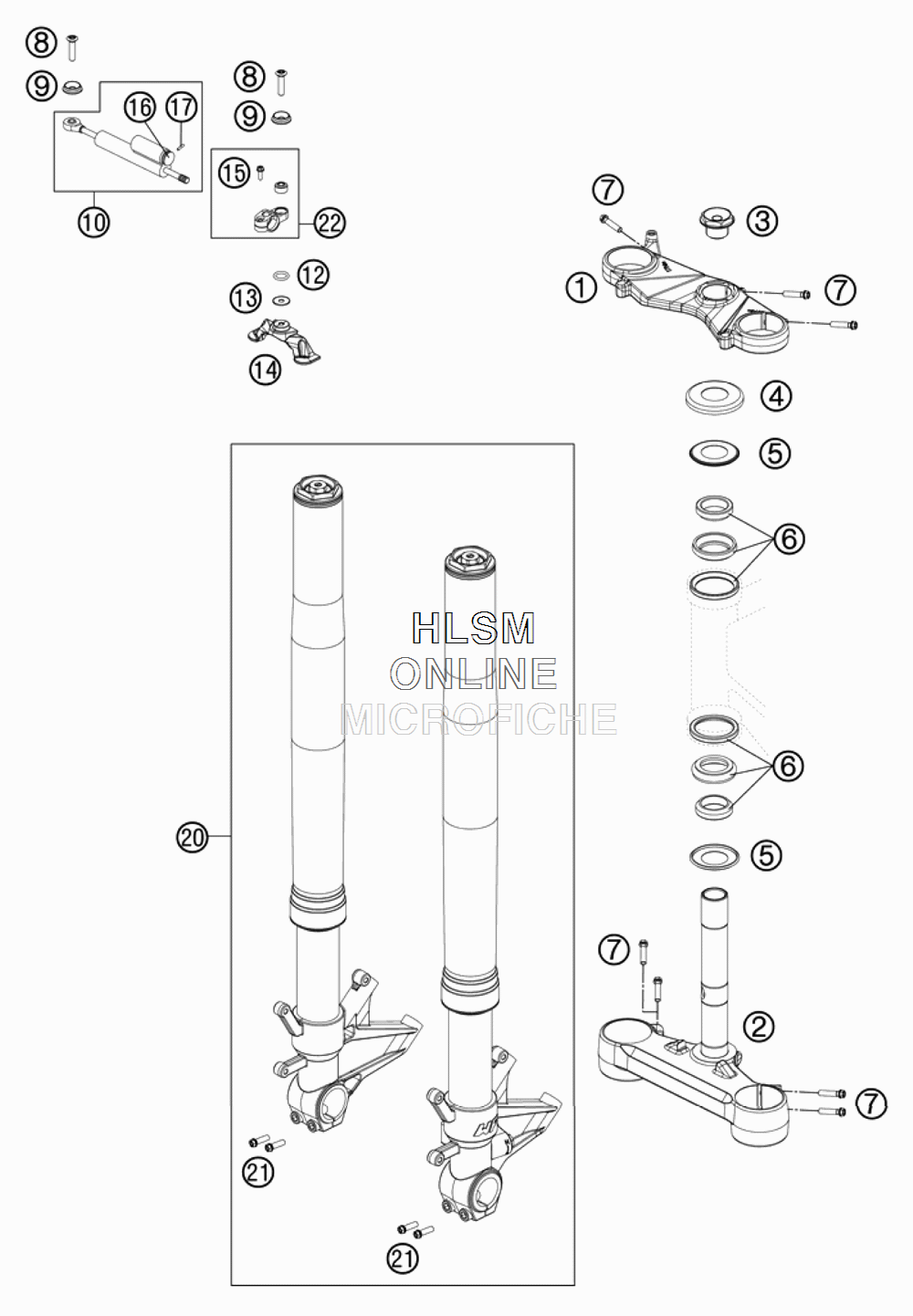

FRONT FORK TRIPLE CLAMP для Ktm 1190 RC8R (WHITE) - 2012 года выпуска
-
№АртикулНазвание
-
16930103402833S TOP FORK PLATE 210/ 28 BLACKTOP FORK PLATE 210/ 28 BLACK
-
26910103202833S LOWER TRIPLE CLAMP CPL. BLACKLOWER TRIPLE CLAMP CPL. BLACK
-
36900103600001 STEERING HEAD SCREWSTEERING HEAD SCREW
-
469001086100 PROT. RING STEER. HEAD BEARINGPROT. RING STEER. HEAD BEARING
-
569001084000 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
669001081000 STEERINGHEAD BEARING CPL.STEERINGHEAD BEARING CPL.
-
70025080356 HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
80019080356 COUNTERSUNK SCREW ISA45 M8X35COUNTERSUNK SCREW ISA45 M8X35
-
969012005050 SPECIAL WASHER ALU 8X22MMSPECIAL WASHER ALU 8X22MM
-
1016181D0103 STEERING DAMPER WITHOUT CLAMPSTEERING DAMPER WITHOUT CLAMP
-
120770120025 O-RING 12X2,5 NBR 70O-RING 12X2,5 NBR 70
-
1369012060060 WASHER F. STEERING DAMPER RC8WASHER F. STEERING DAMPER RC8
-
146901200600033 STEERING DAMPER SUPPORTSTEERING DAMPER SUPPORT
-
150025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
1615080122 ADJUSTING GEARADJUSTING GEAR
-
1715080106 ADJUSTING SCREW M3X12ADJUSTING SCREW M3X12
-
2005187K0701 FORK KTM RC8FORK KTM RC8
-
210025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
2215080120S CLAMP CPL. + SCREWCLAMP CPL. + SCREW
