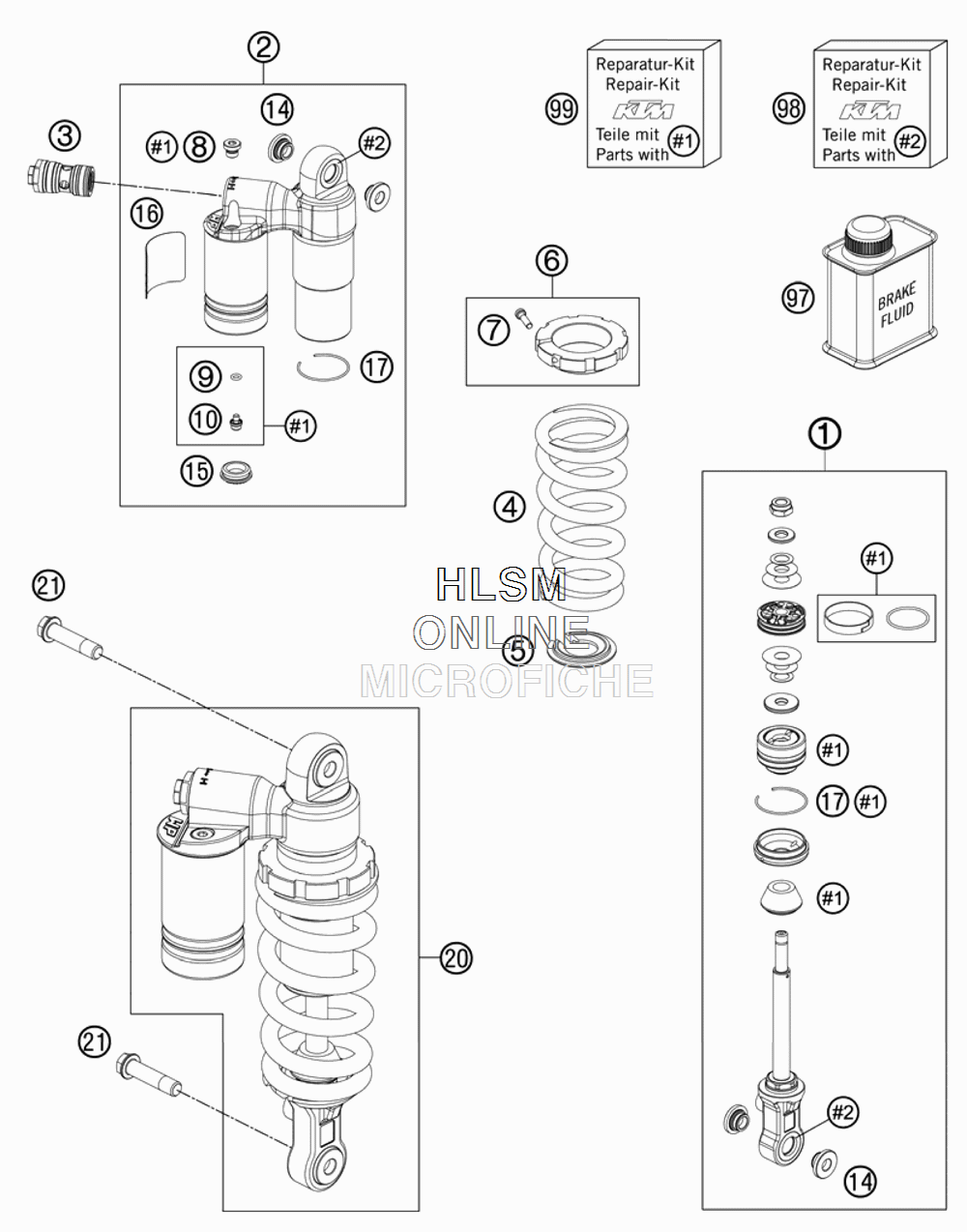

SHOCK ABSORBER для Ktm 1190 RC8R (WHITE) - 2012 года выпуска
-
№АртикулНазвание
-
136120781S9 MONOSHOCK BOTTOM PART CPL.MONOSHOCK BOTTOM PART CPL.
-
240140493SA MONOSHOCK TOP PART CPL.MONOSHOCK TOP PART CPL.
-
346180533S2 DCC-COMPR.DAMP.CONTROL HS40DCC-COMPR.DAMP.CONTROL HS40
-
491750004S SPRING (55) 85 N/MM 160 D10,75SPRING (55) 85 N/MM 160 D10,75
-
536120559 SPRING RETAINERSPRING RETAINER
-
640140342S ADJUSTING RING + SCREW M5ADJUSTING RING + SCREW M5
-
70912050203 AH SCREW DIN0912-M 5X20AH SCREW DIN0912-M 5X20
-
850180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
946810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
1036120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
1440140533 ADAPTER BUSHING 10X23ADAPTER BUSHING 10X23
-
1546811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
1652000087 STICKER WP MONOSHOCKSTICKER WP MONOSHOCK
-
1740140332 CIRCLIP 43X1,5CIRCLIP 43X1,5
-
2017187K0701 MONOSHOCK RC8MONOSHOCK RC8
-
2169004089000 HH COLLAR SCREW M10X42 WS13HH COLLAR SCREW M10X42 WS13
-
9750180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
98R12019 REPAIR KIT BEARING/SEALREPAIR KIT BEARING/SEAL
-
99R17005 REPAIR KITREPAIR KIT
