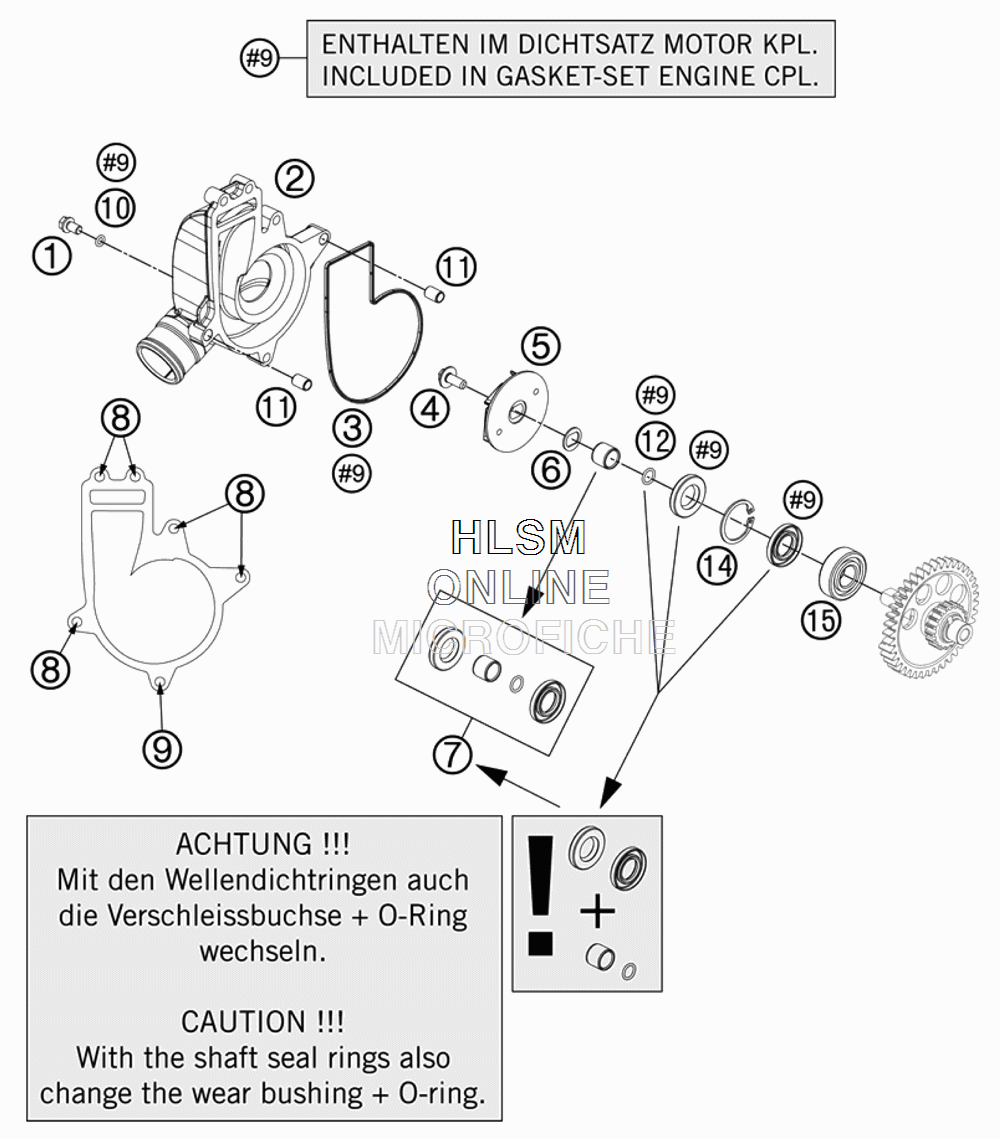

WATER PUMP для Ktm 1190 RC8R (WHITE) - 2012 года выпуска
-
№АртикулНазвание
-
10025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
26923505200041 WATER PUMP COVERWATER PUMP COVER
-
361235061000 MOLDED RING WATER PUMP COV.MOLDED RING WATER PUMP COV.
-
40024060136 HH COLLAR SCREW M6X13 TX30HH COLLAR SCREW M6X13 TX30
-
561235055000 WATER PUMP ROTORWATER PUMP ROTOR
-
660035055150 FORM WASHER 16X1 NIROFORM WASHER 16X1 NIRO
-
761235065144 WEAR BUSHING WITH SEAL RINGWEAR BUSHING WITH SEAL RING
-
80025060456 HH COLLAR SCREW M6X45 TX30HH COLLAR SCREW M6X45 TX30
-
90025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
100770050012 O-RING 5,0X1,2 NBR 70O-RING 5,0X1,2 NBR 70
-
1159030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
1207700900151 O-RING 9X1,5 V75 SH DIN 3771O-RING 9X1,5 V75 SH DIN 3771
-
1404720300121 CIRCLIP DIN0472-30X1,2 NIROCIRCLIP DIN0472-30X1,2 NIRO
-
150412153511 CYL.ROLLER BEAR. NJ202 ECPCYL.ROLLER BEAR. NJ202 ECP
