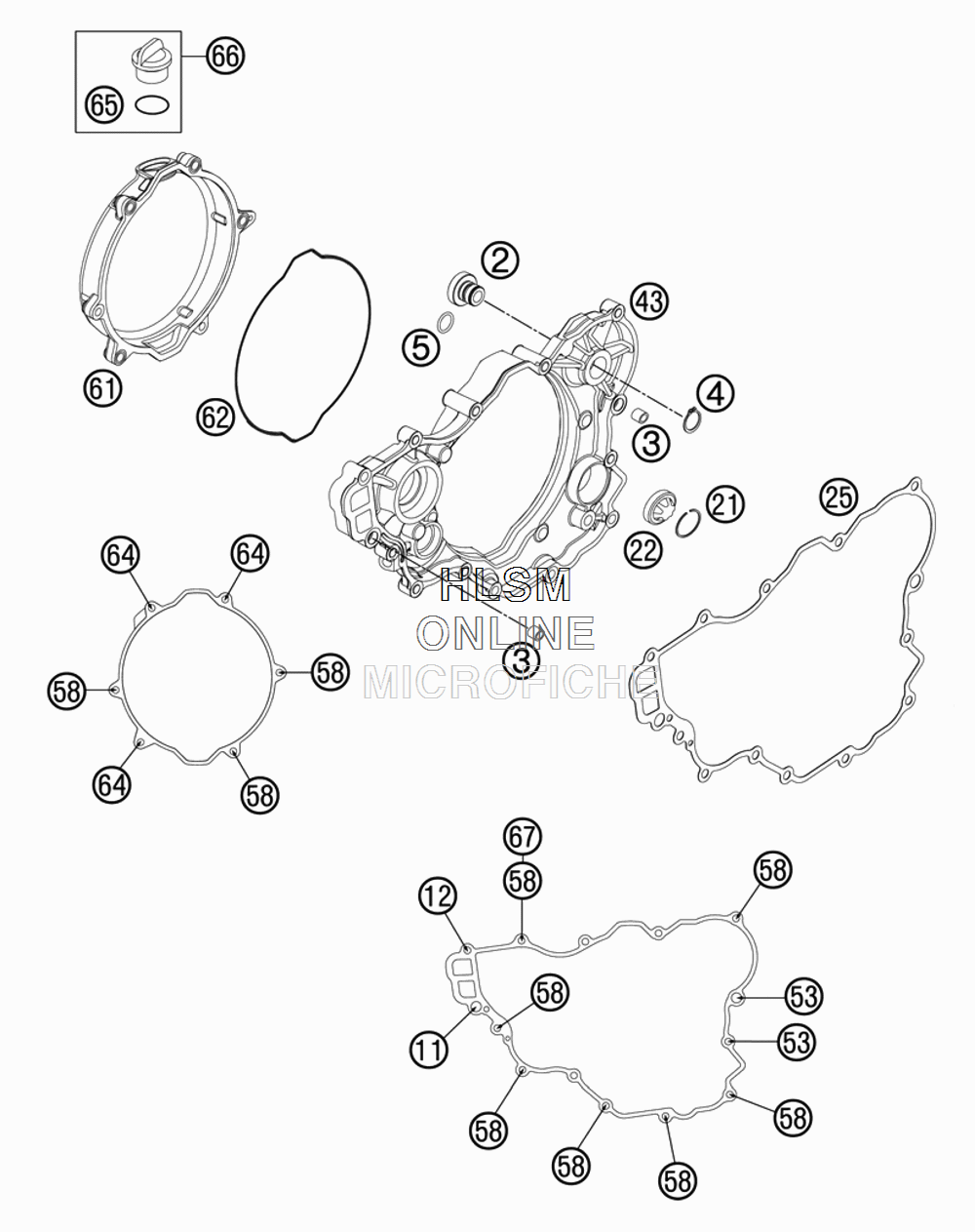

CLUTCH COVER для Ktm 250 SX-F - 2012 года выпуска
-
№АртикулНазвание
-
277230001010 PLUG STARTING LEVERPLUG STARTING LEVER
-
349030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
40471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
50770140200 O-RING 14,00X2,00O-RING 14,00X2,00
-
110025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
120025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
2161030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
2259030019100 OIL LEVEL GLASSOIL LEVEL GLASS
-
2577030025100 GASKET FOR CLUTCH COVERGASKET FOR CLUTCH COVER
-
437703000124415 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
530025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
580025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
617703002630015 CLUTCH COVER OUTSIDECLUTCH COVER OUTSIDE
-
6277030027000 MOLDED RINGMOLDED RING
-
640025060556 HH COLLAR SCREW M6X55HH COLLAR SCREW M6X55
-
650770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
6658030120000 OIL FILLER CAP M24X3 WITH O-RINGOIL FILLER CAP M24X3 WITH O-RING
-
670603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
