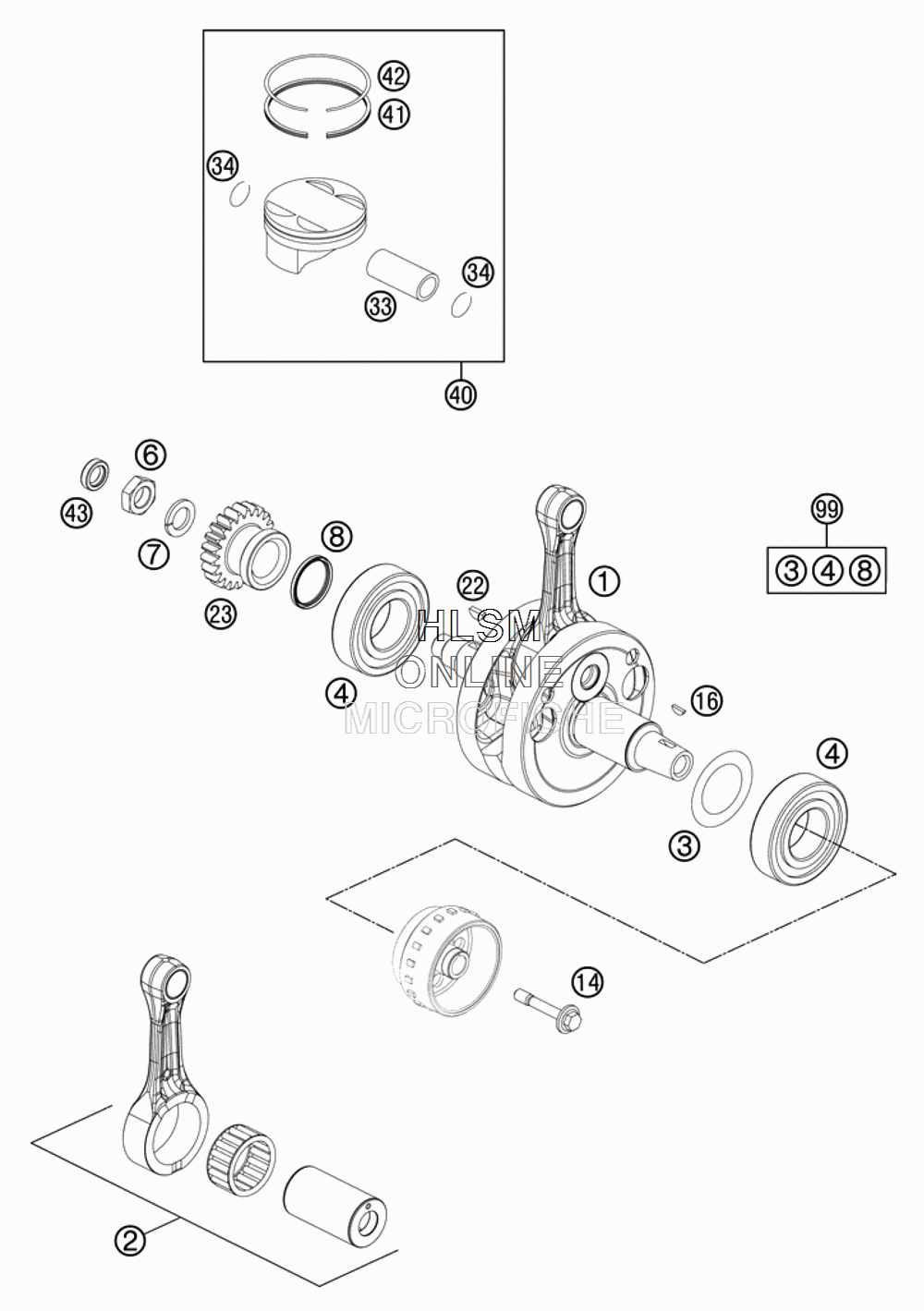

CRANKSHAFT PISTON для Ktm 250 SX-F - 2012 года выпуска
-
№АртикулНазвание
-
177130018000 CRANKSHAFTCRANKSHAFT
-
277030015244 CON. ROD REP. SETCON. ROD REP. SET
-
356030081000 THRUST WASHER 30,5X45X0,10THRUST WASHER 30,5X45X0,10
-
356030081100 THRUST WASHER 30,7X47X0,15THRUST WASHER 30,7X47X0,15
-
356030081200 THRUST WASHER 30,5X45X0,30THRUST WASHER 30,5X45X0,30
-
450330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46CYL.ROLLER BEAR.NJ206 ET2XCS46
-
654630029000 HEX.NUT L/SH M18X1,5HEX.NUT L/SH M18X1,5
-
758132072000 LOCK WASHER VSK 18LOCK WASHER VSK 18
-
80760354774 SHAFT SEAL RING 35X47X7 VITONSHAFT SEAL RING 35X47X7 VITON
-
1477339010100 FLYWHEEL SCREWFLYWHEEL SCREW
-
166946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
220888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
2377132000022 PRIMARY GEAR 22T.PRIMARY GEAR 22T.
-
3377030033000 PISTON PIN BOLT D=16MMPISTON PIN BOLT D=16MM
-
3477030074000 CIRCLIP 05CIRCLIP 05
-
4077130007000I PISTON I CPL.PISTON I CPL.
-
4077130007000II PISTON II CPL.PISTON II CPL.
-
4177130032000 OIL SCRAPER RINGOIL SCRAPER RING
-
4277030030200 COMPRESSION RINGCOMPRESSION RING
-
430760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
9900050002302 CONRODREP KIT 250SX-F/EXC-F 11CONRODREP KIT 250SX-F/EXC-F 11
