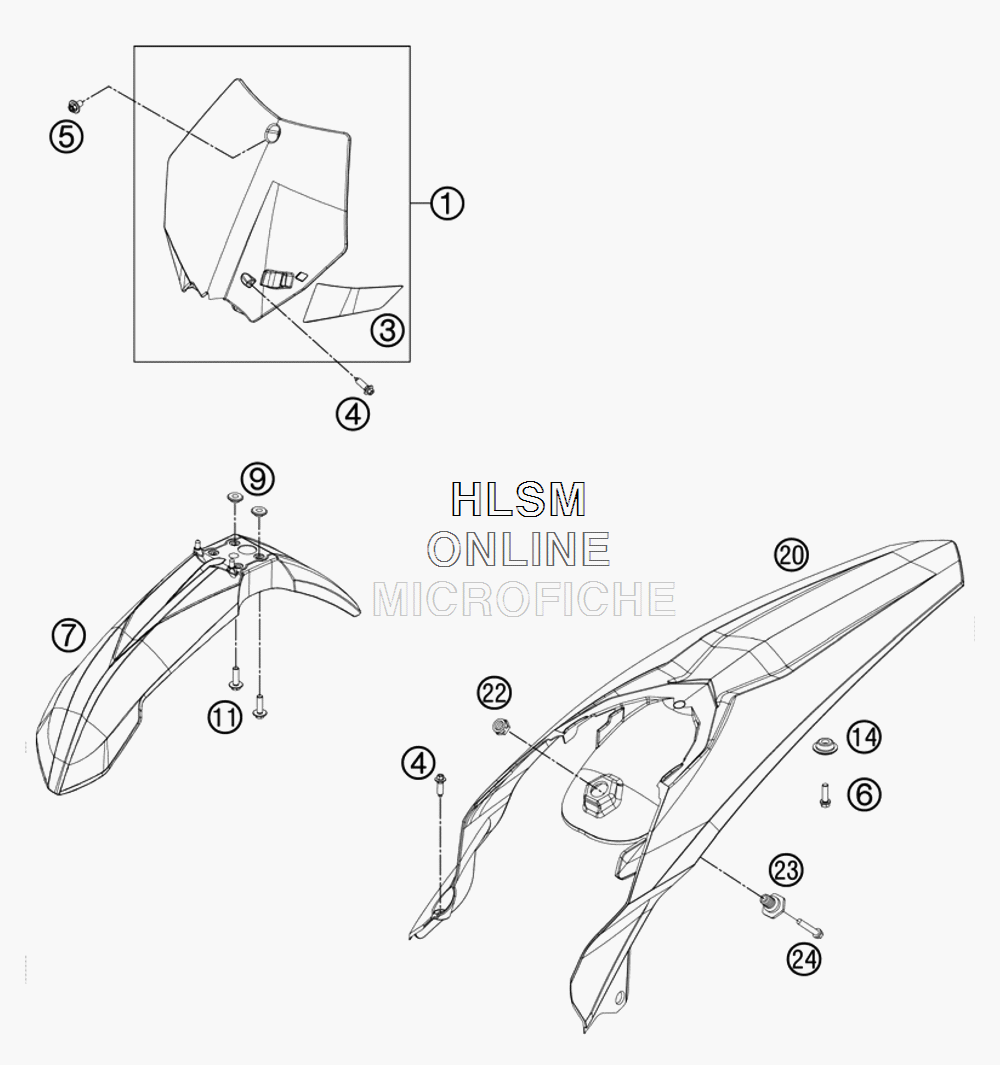

MASK FENDERS для Ktm 250 SX-F - 2012 года выпуска
-
№АртикулНазвание
-
17730800704428 START NUMBER PLATE CPL. WHITESTART NUMBER PLATE CPL. WHITE
-
37730802200030 BRAKE HOSE GUIDE BLACKBRAKE HOSE GUIDE BLACK
-
40017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
50024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
60025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
77730801000004 FRONT FENDERFRONT FENDER
-
954808020000 SPACER BUSHINGSPACER BUSHING
-
110024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1477308013010 COLLAR BUSH. F.REAR FENDERCOLLAR BUSH. F.REAR FENDER
-
207720801300028 REAR FENDER SX WHITEREAR FENDER SX WHITE
-
2250314057050 COLLAR NUT M12X1/WS17 H=5MMCOLLAR NUT M12X1/WS17 H=5MM
-
2354807048000 BUSHING FOR SEAT FASTENINGBUSHING FOR SEAT FASTENING
-
240025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
