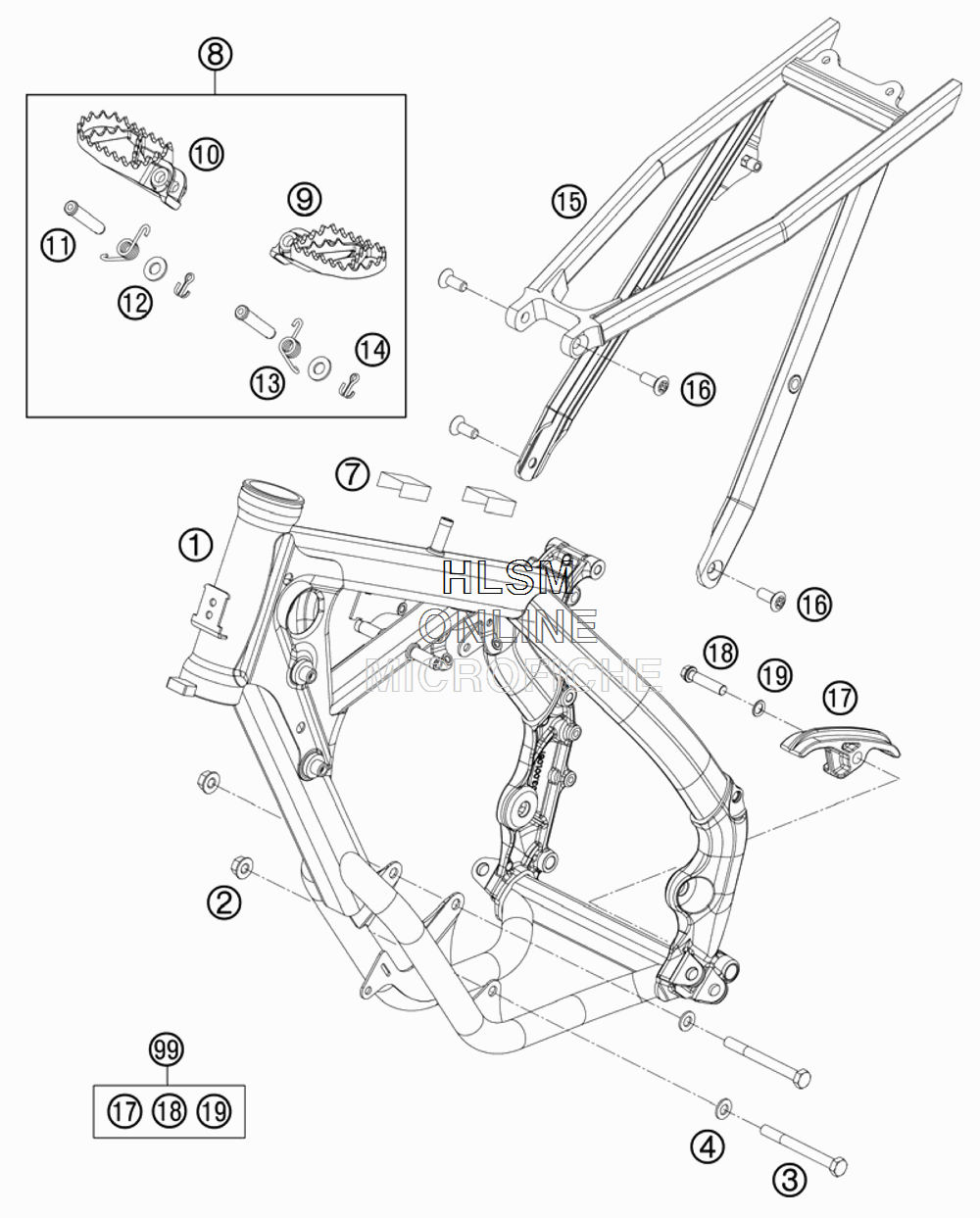

FRAME для Ktm 65 SXS - 2012 года выпуска
-
№АртикулНазвание
-
14620300124433 FRAME "462L3"FRAME "462L3"
-
254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
30931080805 HH SCREW DIN 931 M8X80 10.9HH SCREW DIN 931 M8X80 10.9
-
40125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
750307012000 ADH. FOIL TRANSP. 80X80 MMADH. FOIL TRANSP. 80X80 MM
-
84700304003390 FOOTPEG L.+R. CPL.FOOTPEG L.+R. CPL.
-
959003040050 FOOT PED L/S EXC SILVERFOOT PED L/S EXC SILVER
-
1059003041050 FOOT PED R/S EXC SILVERFOOT PED R/S EXC SILVER
-
1154803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
120125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
1354603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
140094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
1546203002000 SUB FRAMESUB FRAME
-
160019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
1777303053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
180025080356 HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
1936003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
9977303053110 CHAIN SLIDING NG KIT BELOWCHAIN SLIDING NG KIT BELOW
