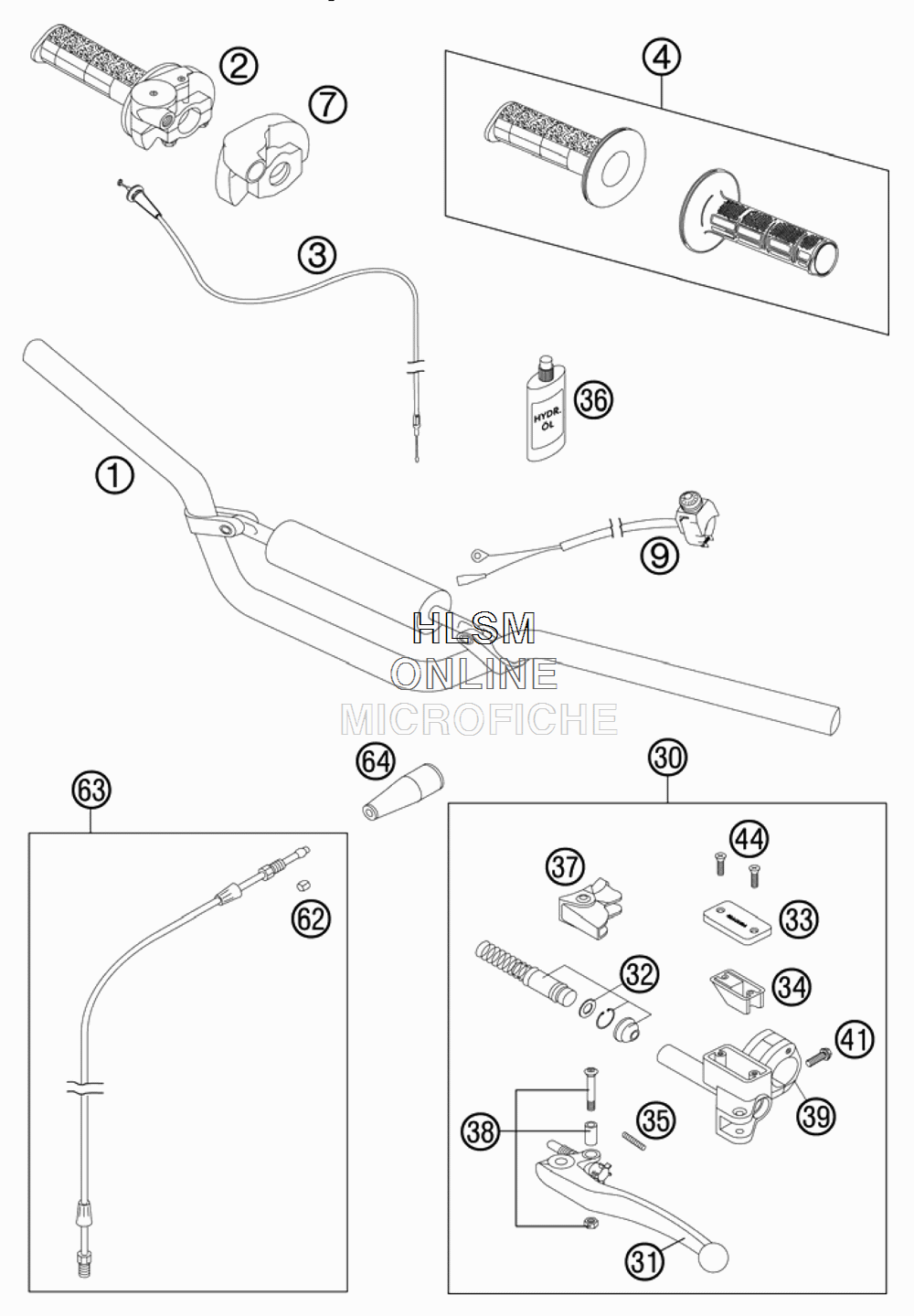

HANDLEBAR CONTROLS для Ktm 65 SXS - 2012 года выпуска
-
№АртикулНазвание
-
146202001100 HANDLEBARHANDLEBAR
-
246202010000 THROTTLE GRIPTHROTTLE GRIP
-
346202091000 THROTTLE CABLETHROTTLE CABLE
-
463002021100 GRIP SET DUAL COMPOUNDGRIP SET DUAL COMPOUND
-
750302020000 PROTECTION COVERPROTECTION COVER
-
950311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
3046102030100 MASTER CYLINDER CPL. D=9MMMASTER CYLINDER CPL. D=9MM
-
3154602031000 CLUTCH LEVER SHORT CPL.CLUTCH LEVER SHORT CPL.
-
3159002031000 CLUTCH LEVER LONG CPL.CLUTCH LEVER LONG CPL.
-
3259002032100 REP.KIT PISTON 9,0MM RAC.REP.KIT PISTON 9,0MM RAC.
-
3350302033100 COVER HYD.CLUTCH 2TCOVER HYD.CLUTCH 2T
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3559002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
-
3650302036200 OIL FOR HYD. CLUTCH 75MLOIL FOR HYD. CLUTCH 75ML
-
3750302037000 PROTECT.CAP FOR LEVER PERCHPROTECT.CAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL. 125-200LEVER SCREW CPL. 125-200
-
3950302030150 CLAMP WITH PINCLAMP WITH PIN
-
410025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
440965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
6250332063050 SELF CUTTING RING HYDR.PIPESELF CUTTING RING HYDR.PIPE
-
6346132063000 PIPE KIT FOR HYDR.CLUTCHPIPE KIT FOR HYDR.CLUTCH
-
6454002016000 PROTECTION CAPPROTECTION CAP
