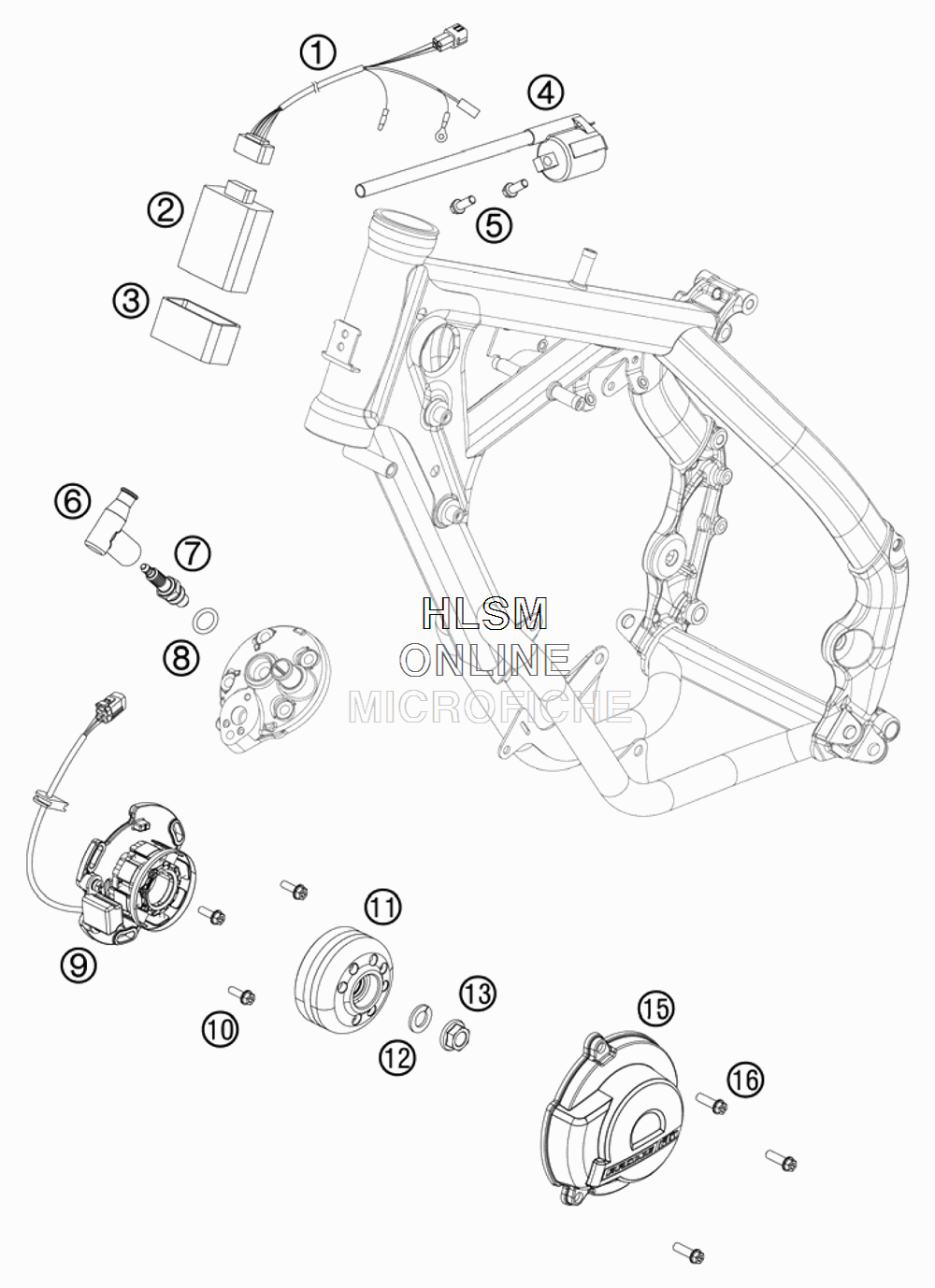

IGNITION SYSTEM для Ktm 65 SXS - 2012 года выпуска
-
№АртикулНазвание
-
146239095000 WIRING HARNESS CDIWIRING HARNESS CDI
-
246239031000 CDICDI
-
346139030000 RUBBER BR. DIGI.BOXRUBBER BR. DIGI.BOX
-
459039006000 IGNITIONCOIL "IG5128"IGNITIONCOIL "IG5128"
-
50025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
646239090000 SPARK PLUG CONNECTORSPARK PLUG CONNECTOR
-
745239093000 SPARK PLUG LR8BSPARK PLUG LR8B
-
80770012030 O-RING 12,00X3,0 VITON 75O-RING 12,00X3,0 VITON 75
-
946239004000 STATORSTATOR
-
100025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
1146239005000 ROTORROTOR
-
1250230029012 LOCKING RING VSK 12LOCKING RING VSK 12
-
1349030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
1546230002100 IGNITION COVERIGNITION COVER
-
160025060206 HH COLLAR SCREW W M6X 20 TX30HH COLLAR SCREW W M6X 20 TX30
