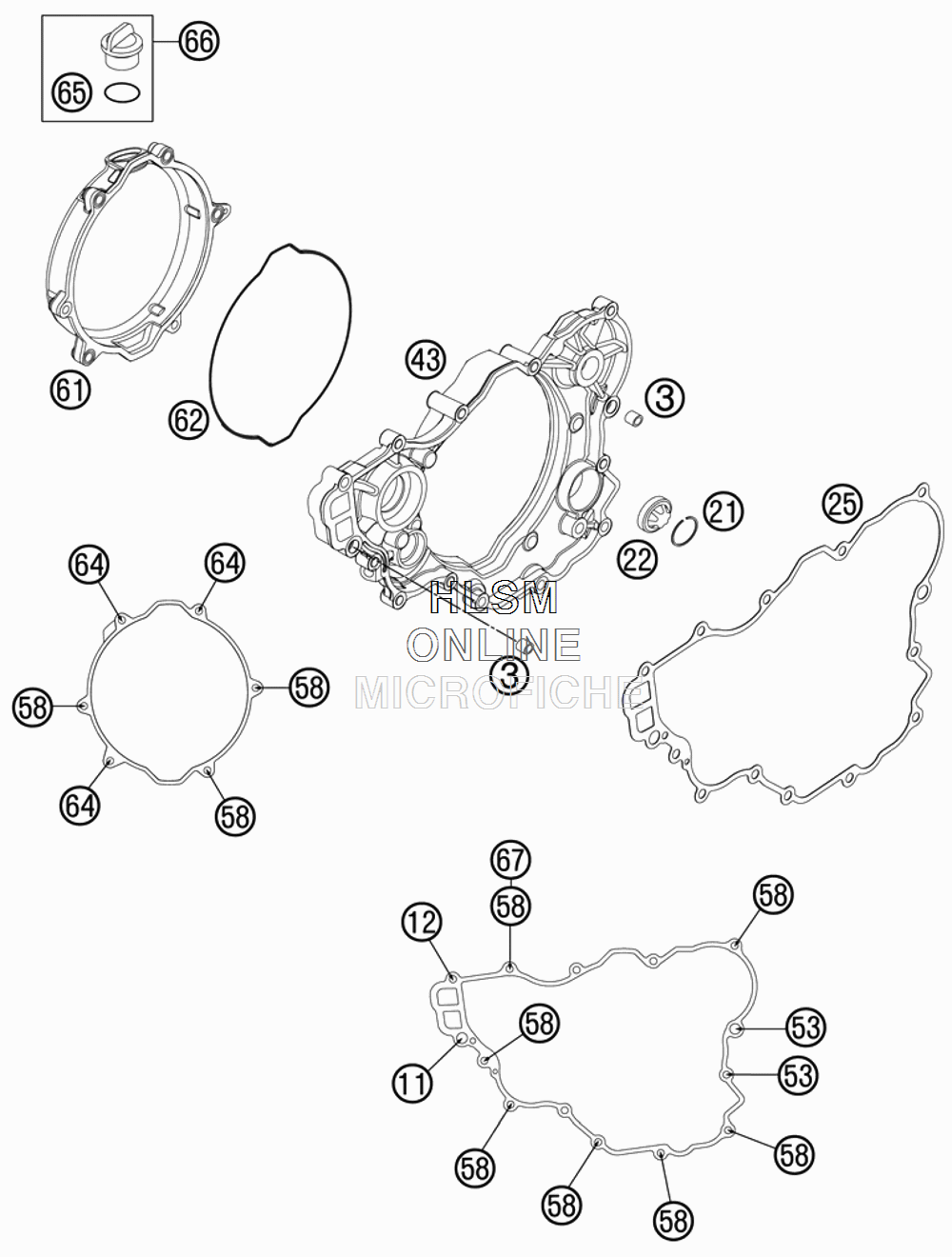

CLUTCH COVER для Ktm 250 XC-F W - 2013 года выпуска
-
№АртикулНазвание
-
349030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
110025060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
120025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
2161030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
2259030019100 OIL LEVEL GLASSOIL LEVEL GLASS
-
2577030025100 GASKET FOR CLUTCH COVERGASKET FOR CLUTCH COVER
-
437703000124415 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
530025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
580025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
617703002630015 CLUTCH COVER OUTSIDECLUTCH COVER OUTSIDE
-
6277030027000 MOLDED RINGMOLDED RING
-
640025060556 HH COLLAR SCREW M6X55 TX30HH COLLAR SCREW M6X55 TX30
-
650770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
6658030120000 OIL FILLER CAP M24X3 WITH O-ROIL FILLER CAP M24X3 WITH O-R
-
670603061001 CU-SEAL RING DIN7603 -6X10X1CU-SEAL RING DIN7603 -6X10X1
