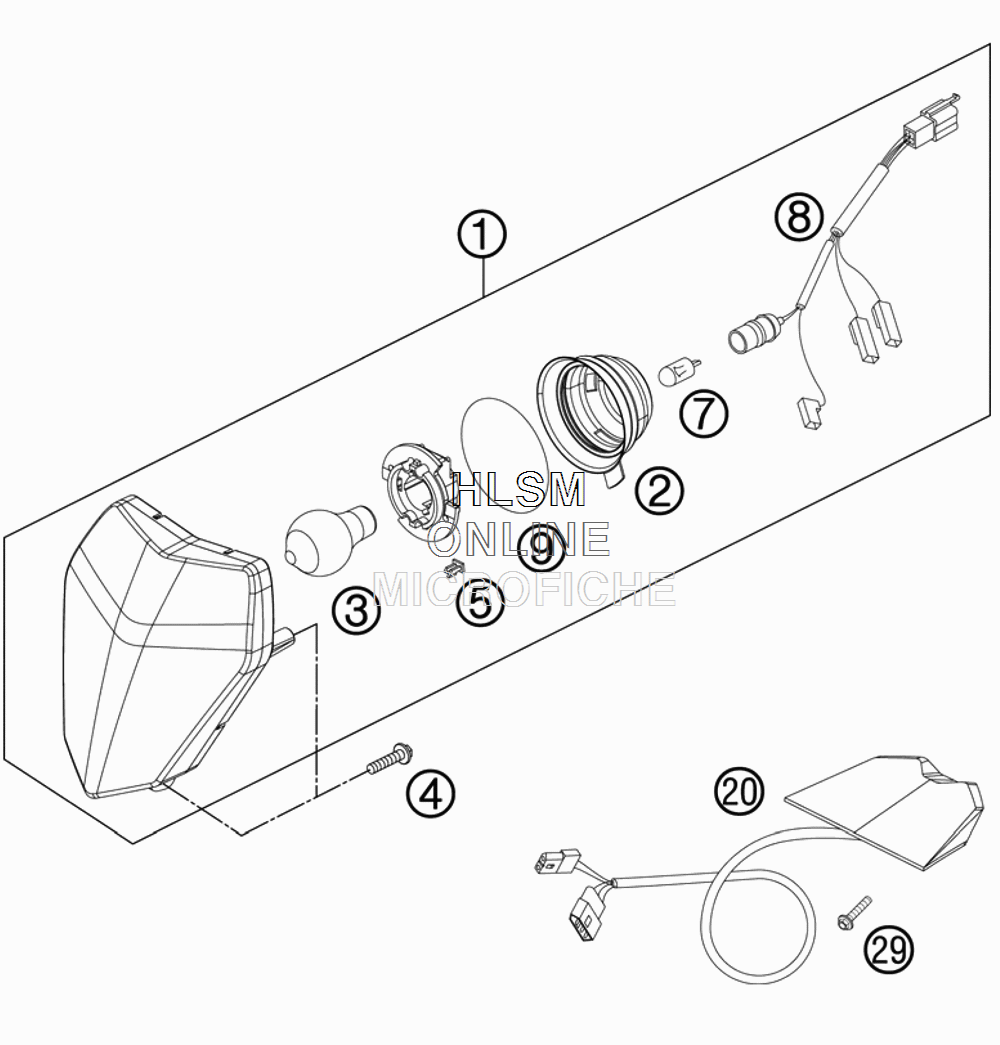

LIGHTING SYSTEM для Ktm 250 XC-F W - 2013 года выпуска
-
№АртикулНазвание
-
178014001000 HEAD LIGHT CPL.HEAD LIGHT CPL.
-
254814001050 RUBBER CAP FOR HEAD LIGHTRUBBER CAP FOR HEAD LIGHT
-
344111038000 BILUX-BULB 12V 35/35W BA20DBILUX-BULB 12V 35/35W BA20D
-
40081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
578014009000 DRAIN HOLE COVERDRAIN HOLE COVER
-
749011435100 BULB 12V 5W (W2,1X9,5D) PHIL.BULB 12V 5W (W2,1X9,5D) PHIL.
-
854811001050 CABLE FOR HEAD LIGHTCABLE FOR HEAD LIGHT
-
90770350032 O-RING 35,00X32,00 NBRO-RING 35,00X32,00 NBR
-
2076514040000 REAR LIGHTREAR LIGHT
-
290017060253 EJOT PT SCREW K60X25 -Z SW=6EJOT PT SCREW K60X25 -Z SW=6
