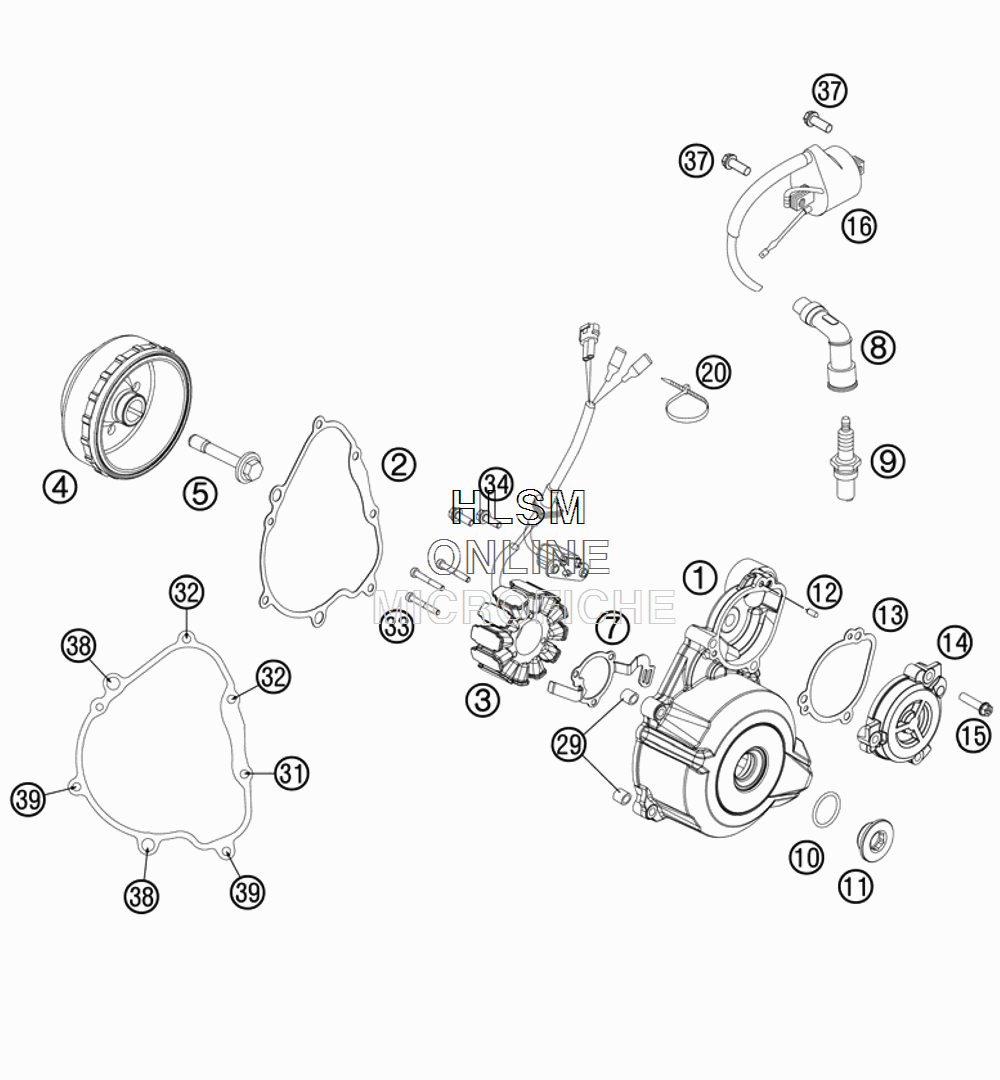

IGNITION SYSTEM для Ktm 250 XC-F W - 2013 года выпуска
-
№АртикулНазвание
-
17743000200015 IGNITION COVERIGNITION COVER
-
277130040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
377439004000 STATORSTATOR
-
477539005000 ROTORROTOR
-
577339010100 FLYWHEEL SCREWFLYWHEEL SCREW
-
777430002050 RETAINING PLATERETAINING PLATE
-
877139090000 SPARK PLUG CONNECTORSPARK PLUG CONNECTOR
-
977039093000 SPARK PLUG NGK CR9EKBSPARK PLUG NGK CR9EKB
-
1007700240251 O-RING 24X2,5 VITONO-RING 24X2,5 VITON
-
117723000206030 FACTORY IGNITION COVER PLUGFACTORY IGNITION COVER PLUG
-
120402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
1377240043000 GASKET TORQUE LIMITERGASKET TORQUE LIMITER
-
147723000201015 COVER TORQUE LIMITERCOVER TORQUE LIMITER
-
150025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
1658439006000 IGNITIONCOIL IG3826 KOKUSANIGNITIONCOIL IG3826 KOKUSAN
-
2044011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
2949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
310025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
320025060506 HH COLLAR SCREW M6X50 TX30HH COLLAR SCREW M6X50 TX30
-
330912050303 AH SCREW DIN0912-M 5X30AH SCREW DIN0912-M 5X30
-
340025050126 HH COLLAR SCREW M5X12 TX30HH COLLAR SCREW M5X12 TX30
-
370026060186 COLLAR SCREW M6X18 ISA30COLLAR SCREW M6X18 ISA30
-
380025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
390025060906 HH COLLAR SCREW M6X 90 TX30HH COLLAR SCREW M6X 90 TX30
