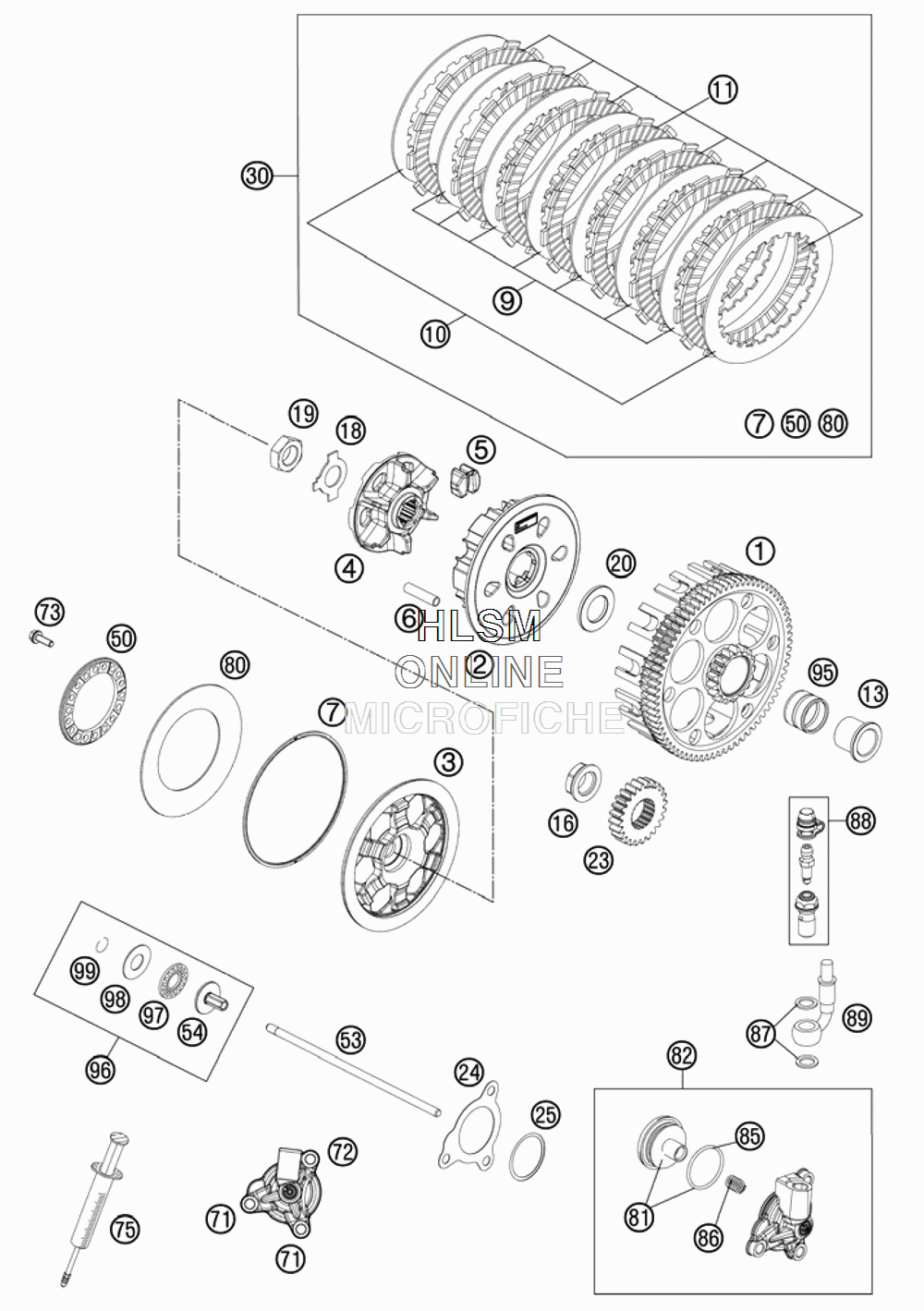

CLUTCH для Ktm 350 XC-F W - 2013 года выпуска

№

Артикул

Название
1

77232001073 OUTER CLUTCH CPL.

OUTER CLUTCH CPL.

71 640 ₽
2

78132002008 INNER CLUTCH HUB

INNER CLUTCH HUB

27 370 ₽
3

78132003000 PRESSURE PLATE

PRESSURE PLATE

8 850 ₽
4

78132002111 HUB

HUB

19 250 ₽
5

78132025100 DAMPING RUBBER

DAMPING RUBBER

970 ₽
6

78132004000 SLEEVE 7,5X33.4

SLEEVE 7,5X33.4

880 ₽
7

78132013000 WASHER 112X118X1.5

WASHER 112X118X1.5

2 490 ₽
9

59032010200 INTERMEDIATE DISC 1,4MM

INTERMEDIATE DISC 1,4MM

2 510 ₽
10

59032010100 INTERMEDIATE DISC 1MM

INTERMEDIATE DISC 1MM

2 250 ₽
11

59032011100 LINING DISC 2MM

LINING DISC 2MM

6 050 ₽
13

77232015000 INNER RING

INNER RING

7 830 ₽
16

77230029000 NUT PRIMARY WHEEL

NUT PRIMARY WHEEL

9 960 ₽
18

56532018000 LOCK WASHER

LOCK WASHER

1 460 ₽
19

0936181505 HEXAGON NUT DIN0936-M18X1,5 R.

HEXAGON NUT DIN0936-M18X1,5 R.

2 080 ₽
20

77232009000 WASHER 21,8 X 37 X 5,1

WASHER 21,8 X 37 X 5,1

2 200 ₽
23

77232023024 PRIMARY GEAR 24T.

PRIMARY GEAR 24T.

21 880 ₽
24

77232062000 GASKET F. OUTPUT CYLINDER

GASKET F. OUTPUT CYLINDER

820 ₽
25

0770300015 O-RING 30,00X1,50 NBR 70

O-RING 30,00X1,50 NBR 70

410 ₽
30

78132010110 CLUTCH KIT

CLUTCH KIT

66 250 ₽
50

78132006100 SPRING RING

SPRING RING

10 610 ₽
53

77232054000 PUSH ROD

PUSH ROD

3 800 ₽
54

78032057000 PRESSURE PIECE

PRESSURE PIECE

6 370 ₽
71

0025060166 HH COLLAR SCREW M6X16 TX30

HH COLLAR SCREW M6X16 TX30

500 ₽
72

0025060356 HH COLLAR SCREW M6X35 TX30

HH COLLAR SCREW M6X35 TX30

560 ₽
73

0025050166 HH COLLAR SCREW M5X16 TX30

HH COLLAR SCREW M5X16 TX30

290 ₽
75

50329050000 VENT INJEKTION HYDR. CLUTCH

VENT INJEKTION HYDR. CLUTCH

14 520 ₽
80

78132005000 BELLEVILLE SPRING 71X115X1,5

BELLEVILLE SPRING 71X115X1,5

8 620 ₽
81

77232066000 PISTON CPL.

PISTON CPL.

13 470 ₽
82

77232061044 OUTPUT CYLINDER CPL.

OUTPUT CYLINDER CPL.

30 580 ₽
85

54832067000 O-RING

O-RING

680 ₽
86

54832069000 PRESSURE SPRING

PRESSURE SPRING

3 240 ₽
87

42013226000 CU-SEAL RING DIN7603-10X16X1

CU-SEAL RING DIN7603-10X16X1

440 ₽
88

62513020000 BLEEDER SCREW CPL.

BLEEDER SCREW CPL.

7 390 ₽
89

54832063000 CLUTCH PIPE

CLUTCH PIPE

23 220 ₽
95

56532095000 NEEDLE BEARING G K26X 30X22ZW.KSE

NEEDLE BEARING G K26X 30X22ZW.KSE

6 430 ₽
96

78032057044 PRESSURE PIECE CPL.

PRESSURE PIECE CPL.

6 020 ₽
97

54637097200 AXIAL NEEDLE BEARING AXK 1226

AXIAL NEEDLE BEARING AXK 1226

2 750 ₽
98

54637098200 AXIAL WASHER AS1226 12X26X1

AXIAL WASHER AS1226 12X26X1

1 380 ₽
99

0993012000 CIRCLIP DIN7993--RW12

CIRCLIP DIN7993--RW12

590 ₽
