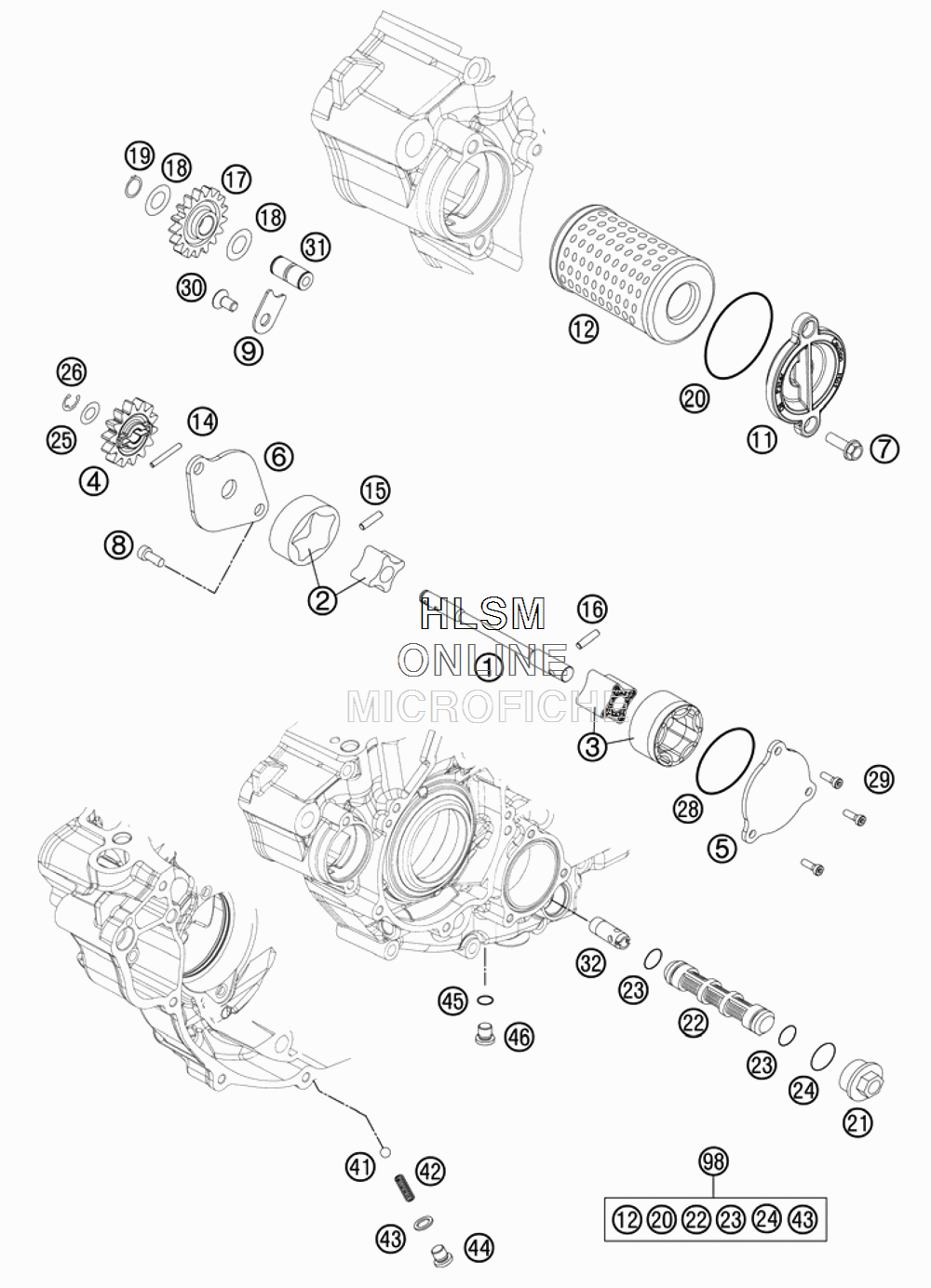

LUBRICATING SYSTEM для Ktm 350 XC-F W - 2013 года выпуска
-
№АртикулНазвание
-
177238102000 OIL PUMP SHAFTOIL PUMP SHAFT
-
259038011012 OILPUMP ROTOR 12MM G-95R/003OILPUMP ROTOR 12MM G-95R/003
-
361238111000 ROTOR-SET CPL. 22MMROTOR-SET CPL. 22MM
-
477038001100 OIL PUMP GEAR 14TOIL PUMP GEAR 14T
-
578038004000 OIL PUMP COVER SUCTION PUMPOIL PUMP COVER SUCTION PUMP
-
677238003100 OIL PUMP COVER R/SOIL PUMP COVER R/S
-
70025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
80984050123S CYLIND. SCR. DIN6912 M5X12 8.8CYLIND. SCR. DIN6912 M5X12 8.8
-
977238061050 AXIAL-CIRCLIPAXIAL-CIRCLIP
-
1177338041200 OIL FILTER COVEROIL FILTER COVER
-
1277338005100 OIL FILTEROIL FILTER
-
140402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8NEEDLEROL.DIN5402 NRA 2,5X19,8
-
150402251180 NEEDLE ROLLER DIN5402 2,5X11,8NEEDLE ROLLER DIN5402 2,5X11,8
-
160402041580 NEEDLE ROLLER NRB 4X15,8 G2NEEDLE ROLLER NRB 4X15,8 G2
-
1777038006100 OIL PUMP IDLER GEAROIL PUMP IDLER GEAR
-
180988121805 SHIM WASHER DIN0988-12X18X0,50SHIM WASHER DIN0988-12X18X0,50
-
190471120010 CIRCLIP DIN0471-12X1CIRCLIP DIN0471-12X1
-
2007703305178 O-RING 33,05X1,78O-RING 33,05X1,78
-
2159038017000 PLUG M20X1,5 WS=13PLUG M20X1,5 WS=13
-
2259038016100 OIL SCREENOIL SCREEN
-
230770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
240770020170 O-RING 17,17X1,78 GLOO-RING 17,17X1,78 GLO
-
2558038007755 STOP DISK 8,1 X 15 X 0,5STOP DISK 8,1 X 15 X 0,5
-
260799060000 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
280770440020 O-RING 44,00X2,00 VITONO-RING 44,00X2,00 VITON
-
290984050163S CYL. SCREW DIN6912 M5X16 8.8CYL. SCREW DIN6912 M5X16 8.8
-
300018050103 INT. TORX OVAL HEAD M 5X10 8.8INT. TORX OVAL HEAD M 5X10 8.8
-
3177038013100 BUSHING PINBUSHING PIN
-
3277038022000 OIL INTAKEPIPEOIL INTAKEPIPE
-
410401090003 BALL DIN5401-9BALL DIN5401-9
-
4258038023300 PRESSURE SPRING L=25MM D=1MMPRESSURE SPRING L=25MM D=1MM
-
4358038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
440908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
450770110015 O-RING 1,5X11 SILICONO-RING 1,5X11 SILICON
-
4678036081000 HOLDING G BOLT M14X1,5HOLDING G BOLT M14X1,5
-
9800050000083 OILFILTER-R-GASKET SETOILFILTER-R-GASKET SET
