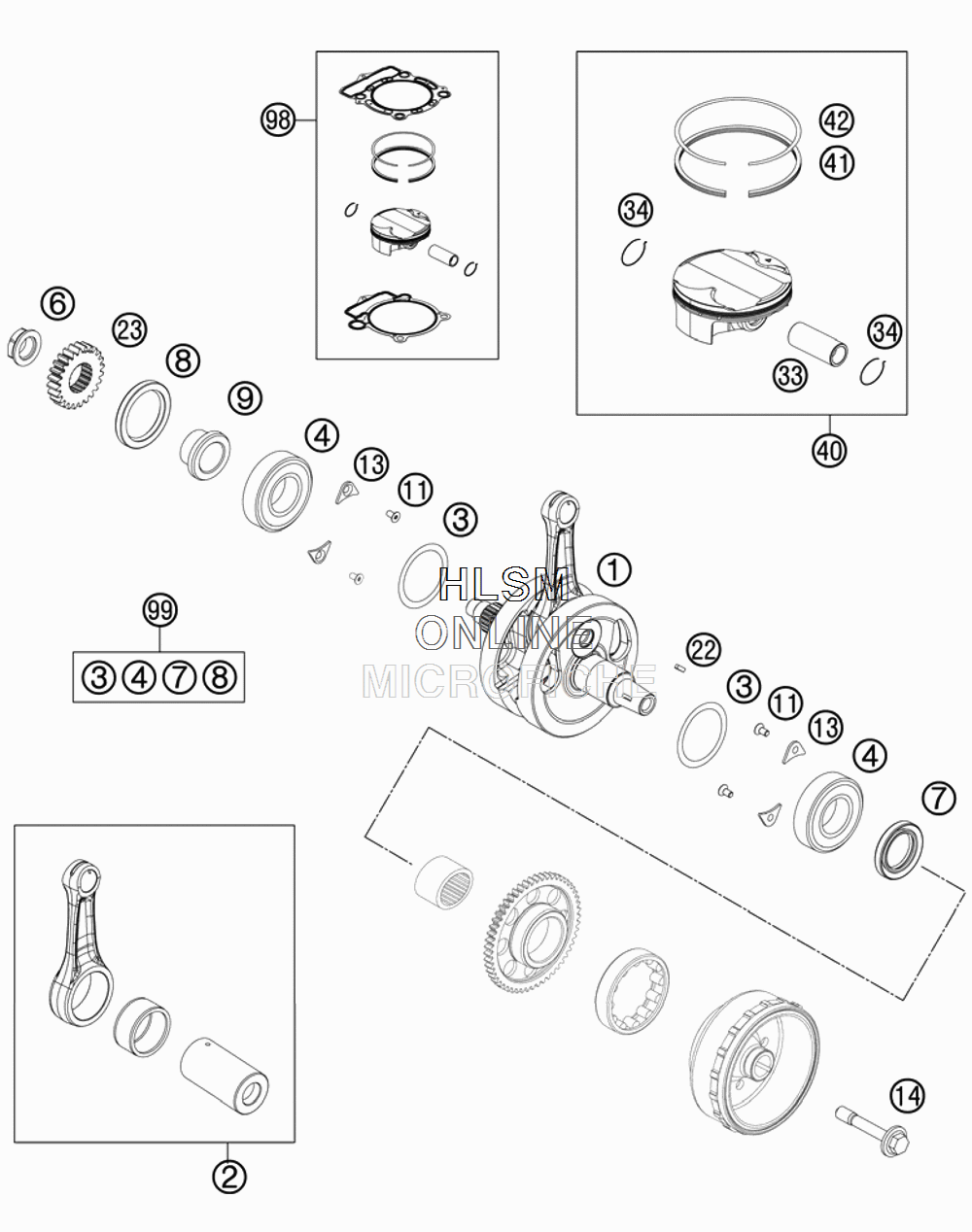

CRANKSHAFT PISTON для Ktm 350 XC-F W - 2013 года выпуска

№

Артикул

Название
1

77530018000 CRANKSHAFT CPL.

CRANKSHAFT CPL.

170 ₽
2

77230115044 CONNECTING ROD REPAIR SET

CONNECTING ROD REPAIR SET

119 180 ₽
3

56030081000 THRUST WASHER 30,5X45X0,10

THRUST WASHER 30,5X45X0,10

120 ₽
3

56030081100 THRUST WASHER 30,7X47X0,15

THRUST WASHER 30,7X47X0,15

270 ₽
3

56030081200 THRUST WASHER 30,5X45X0,30

THRUST WASHER 30,5X45X0,30

350 ₽
4

77330082200 BEARING NJ 206 ECP/HN3C4HVA624

BEARING NJ 206 ECP/HN3C4HVA624

25 350 ₽
6

77230029000 NUT PRIMARY WHEEL

NUT PRIMARY WHEEL

9 960 ₽
7

0760304772 SH.SEAL RING 30X47X7 BSL VITON

SH.SEAL RING 30X47X7 BSL VITON

5 490 ₽
8

0760405560 SHAFT SEAL RING A40X55X6 VITON

SHAFT SEAL RING A40X55X6 VITON

3 100 ₽
9

77232022000 SPACER BUSHING PRIMARY GEAR

SPACER BUSHING PRIMARY GEAR

5 960 ₽
11

0019050106 INT. TORX FLAT HEAD M5X10 10.9

INT. TORX FLAT HEAD M5X10 10.9

290 ₽
13

75030085000 RETAINING PLATE F. CS BEARING

RETAINING PLATE F. CS BEARING

1 140 ₽
14

77339010100 FLYWHEEL SCREW

FLYWHEEL SCREW

1 290 ₽
22

0888030037 WOODRUFF KEY DIN6888-3X3,7

WOODRUFF KEY DIN6888-3X3,7

290 ₽
23

77232023024 PRIMARY GEAR 24T.

PRIMARY GEAR 24T.

21 880 ₽
33

77230133000 PISTON PIN

PISTON PIN

13 840 ₽
34

77230174000 CIRCLIP

CIRCLIP

680 ₽
40

77530107100I PISTON I CPL.

PISTON I CPL.

123 650 ₽
40

77530107100II PISTON II CPL.

PISTON II CPL.

117 490 ₽
41

77230032100 SCRAPER RING

SCRAPER RING

23 390 ₽
42

77230030000 COMPRESSIONRING

COMPRESSIONRING

11 540 ₽
98

00050000200 PISTON KIT I

PISTON KIT I

123 330 ₽
98

00050000201 PISTON KIT II

PISTON KIT II

123 330 ₽
99

00050002303 CRANKSHAFT REP. KIT

CRANKSHAFT REP. KIT

40 560 ₽
