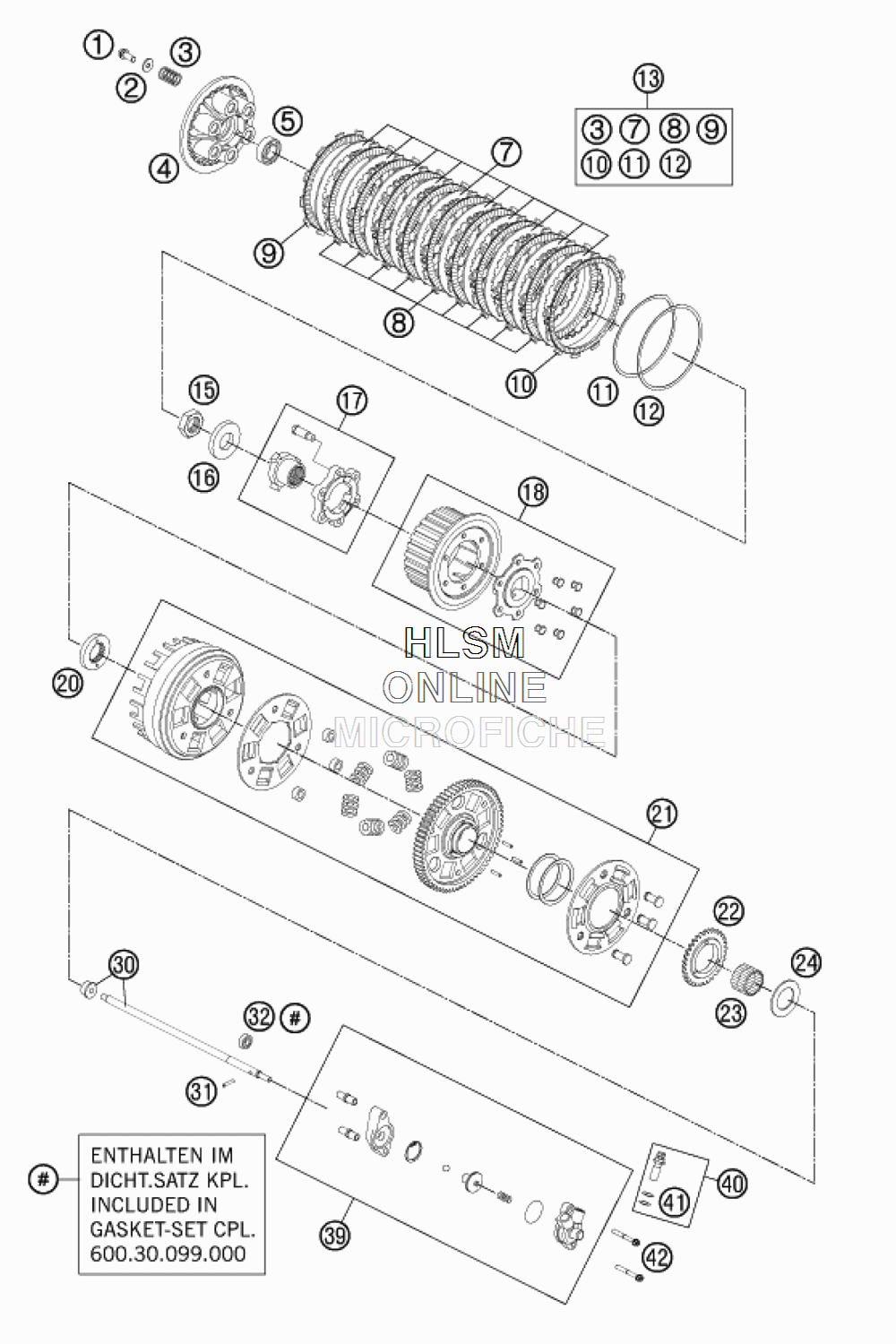

CLUTCH для Ktm 990 SUPERMOTO - 2013 года выпуска
-
№АртикулНазвание
-
10025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
20021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
360032005000 CLUTCH SPRINGCLUTCH SPRING
-
460032003000 PRESSURE CAPPRESSURE CAP
-
50625060032 BALL BEARING 6003 JR2 C4BALL BEARING 6003 JR2 C4
-
760032010000 STEEL DISC 2MMSTEEL DISC 2MM
-
860032011000 LINING DISK 2,8MMLINING DISK 2,8MM
-
960032111000 LINING DISK OUTSIDE 2,8MMLINING DISK OUTSIDE 2,8MM
-
1060032012000 LINING DISK TURN OUT 2,8MMLINING DISK TURN OUT 2,8MM
-
1160032034000 BELLEVILLE SPRINGBELLEVILLE SPRING
-
1260032035000 THRUST WASHERTHRUST WASHER
-
1360032011010 CLUTCH KIT LC8-12CLUTCH KIT LC8-12
-
150936220155 HEXAGON NUT DIN0936-M22X1,5 R.HEXAGON NUT DIN0936-M22X1,5 R.
-
160125220393 PULLEY 22X39X3MMPULLEY 22X39X3MM
-
1760032080000 CLUTCH BOOSTER UNIT CPL.CLUTCH BOOSTER UNIT CPL.
-
1860032002000 INNER CLUTCH HUB CPL.INNER CLUTCH HUB CPL.
-
2060032021000 SECTION WASHERSECTION WASHER
-
2160032001144 OUT.CLUTCH HUB CPL. 67-TOUT.CLUTCH HUB CPL. 67-T
-
2260038001132 OIL PUMP GEAR WHEEL 32-TOIL PUMP GEAR WHEEL 32-T
-
230618303526 NEEDLE BUSH HK 30X35X26NEEDLE BUSH HK 30X35X26
-
2460032020000 STOP DISK 30,2/50/2STOP DISK 30,2/50/2
-
3060032054400 PUSH ROD CPL.PUSH ROD CPL.
-
310402031780 NEEDLE ROL.DIN5402 NRB 3X17,8NEEDLE ROL.DIN5402 NRB 3X17,8
-
320760091862 SHAFT SEAL RING 9X18X06 B-NBRSHAFT SEAL RING 9X18X06 B-NBR
-
3960032061244 CYLINDER CPL.CYLINDER CPL.
-
4050332062000 HOLLOW SCREW CPL. M 10X1HOLLOW SCREW CPL. M 10X1
-
410603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
420025060506 HH COLLAR SCREW M6X50 TX30HH COLLAR SCREW M6X50 TX30
