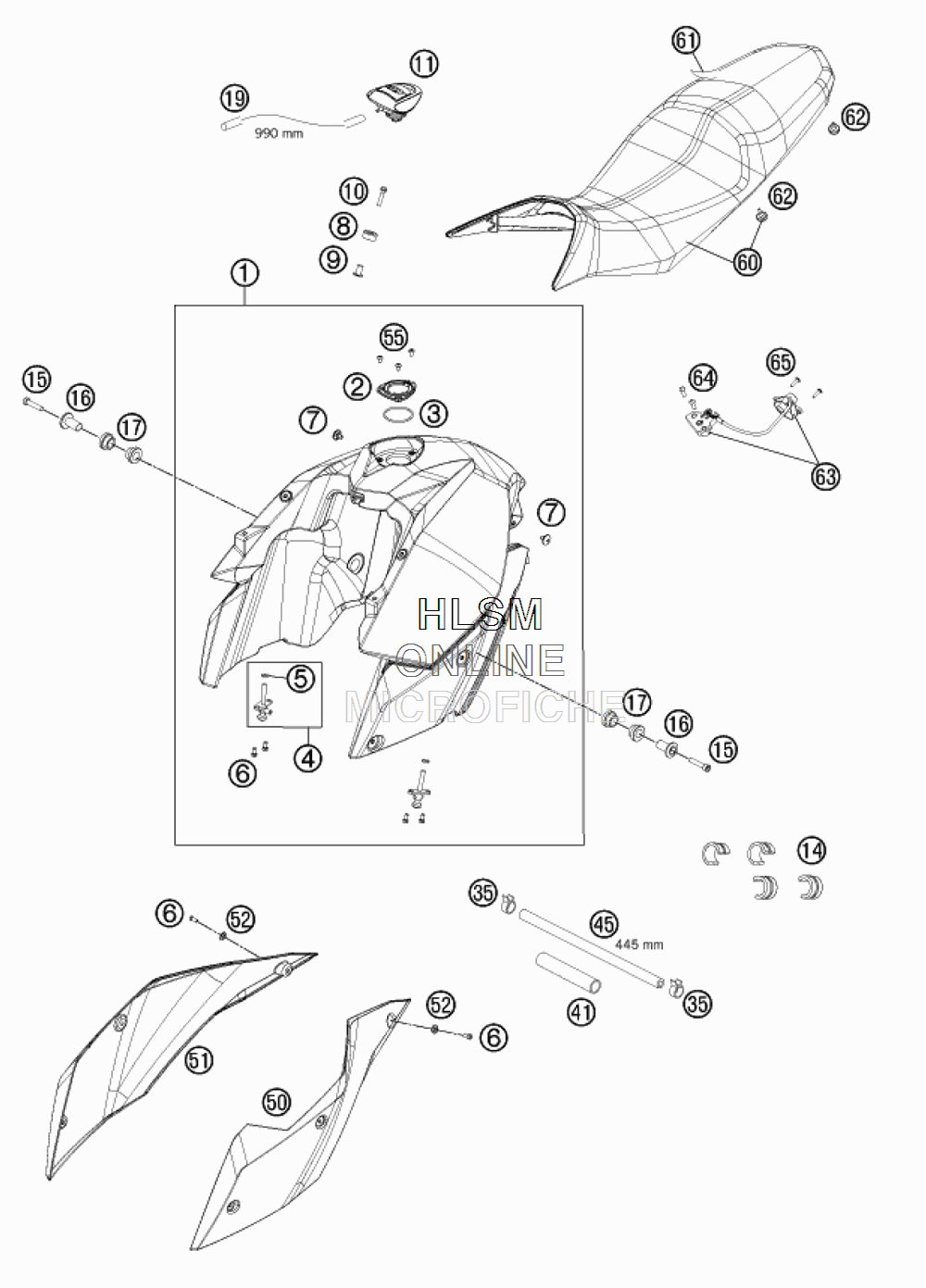

TANK SEAT COVER для Ktm 990 SUPERMOTO - 2013 года выпуска
-
№АртикулНазвание
-
16200701304430B FUEL TANK CPL. BLACKFUEL TANK CPL. BLACK
-
276507008050 CLOSURE FLANGECLOSURE FLANGE
-
30770050030 O-RING 50,00X3,00 VITONO-RING 50,00X3,00 VITON
-
458507003200 FUEL COCK CPL.FUEL COCK CPL.
-
50770020130 O-RING 1,78X10,82X14,38 2-013O-RING 1,78X10,82X14,38 2-013
-
614580060126 CYL. SCREW DIN14580 M 6X12CYL. SCREW DIN14580 M 6X12
-
758407011100 SCREW FOR SEAT M6X11,5/8SCREW FOR SEAT M6X11,5/8
-
850307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
962503009000 COLLAR BUSHING 9,5X18X19,8X1,5COLLAR BUSHING 9,5X18X19,8X1,5
-
100025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
1158407008300 TANK PLUGTANK PLUG
-
1461007014000 SPACER FUEL TANKSPACER FUEL TANK
-
150912080403 AH SCREW DIN912 M8X40AH SCREW DIN912 M8X40
-
1661007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
1761007065000 TANK RUBBER BUSHING FRONTTANK RUBBER BUSHING FRONT
-
1960007026001 HOSE NBR 5,4X9,4 PER METERHOSE NBR 5,4X9,4 PER METER
-
3562607017000 YDNAC CLAMP 12,5MMYDNAC CLAMP 12,5MM
-
4162507016050 THERMAL PROTECTION L=105MMTHERMAL PROTECTION L=105MM
-
4560007216445 HOSE 6X13 L=445 MMHOSE 6X13 L=445 MM
-
506260805000030C SPOILER L/S BLACK -BRILL.SPOILER L/S BLACK -BRILL.
-
516260805100030C SPOILER R/S BLACK-BRILL.SPOILER R/S BLACK-BRILL.
-
5260008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
5558605083010 SCREW TORX M5X10SCREW TORX M5X10
-
6062007040200 SEATSEAT
-
6162007040250 SEAT COVERSEAT COVER
-
6260006001021 DISTANCE RUBBER AIRBOXDISTANCE RUBBER AIRBOX
-
6362607050000 SEAT LOCKSEAT LOCK
-
640738060181 COU.SUNK SCR. AH ISO7380 M6X18COU.SUNK SCR. AH ISO7380 M6X18
-
650081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
