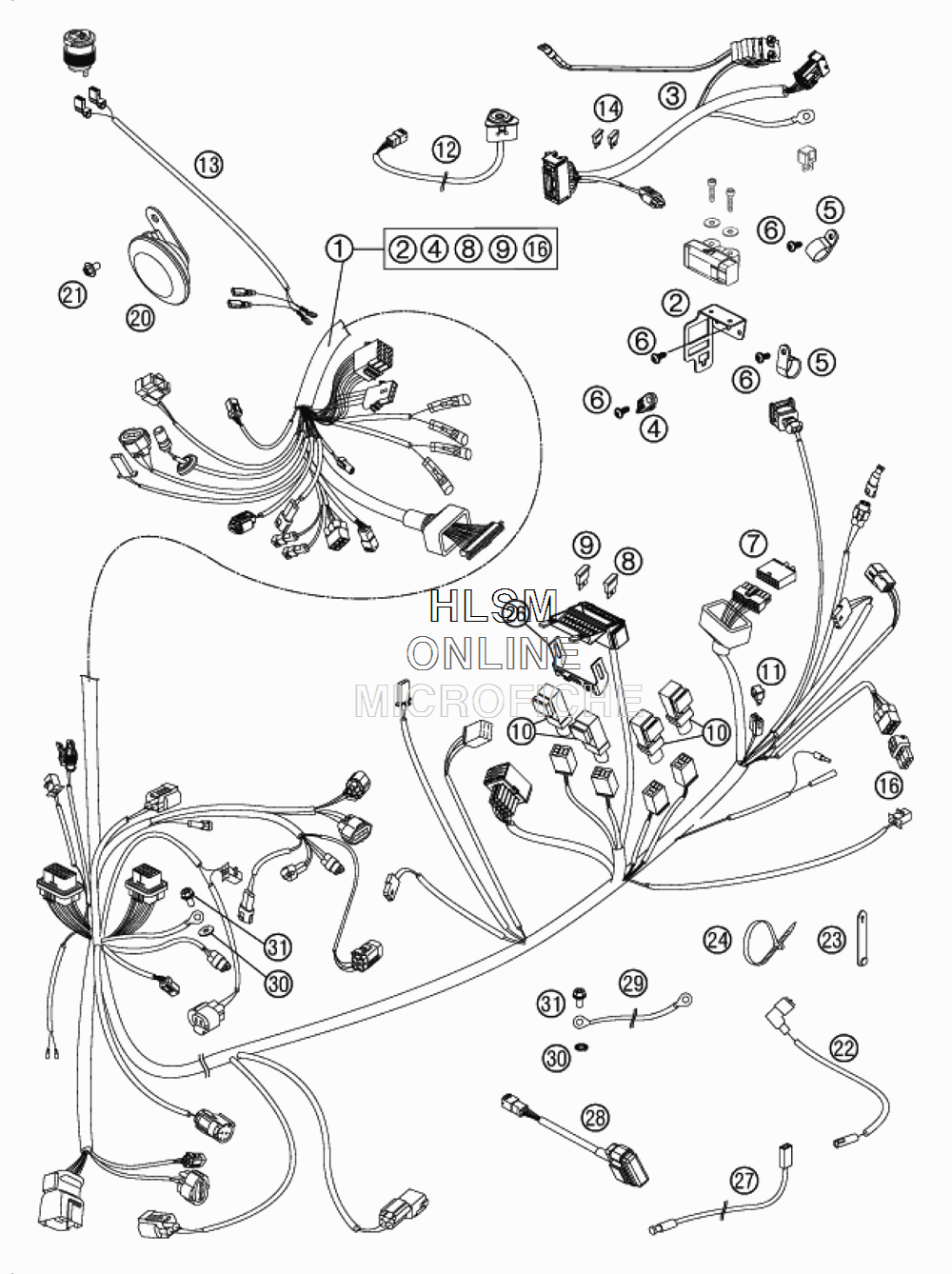

WIRING HARNESS для Ktm 990 SUPERMOTO - 2013 года выпуска
-
№АртикулНазвание
-
162111075000 MAIN WIRING HARNESSMAIN WIRING HARNESS
-
262011083000 PLUG SUPPORT PANELPLUG SUPPORT PANEL
-
362111079000 WIRING HARNESS ABSWIRING HARNESS ABS
-
462011094000 BRACKET CABELFIXINGBRACKET CABELFIXING
-
557013070400 PVC CLAMP 17,4MM HEYCO 3381PVC CLAMP 17,4MM HEYCO 3381
-
60081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
761011075020 DUMMY PLUG ALARM SYSTEMDUMMY PLUG ALARM SYSTEM
-
875011088015 FUSE 15AFUSE 15A
-
975011088010 FUSE 10AFUSE 10A
-
1061111057000 RELAY CM1A-R-12V-H80 07RELAY CM1A-R-12V-H80 07
-
1158411096100 DIODE S3H-15 97DIODE S3H-15 97
-
1260211022000 HAZARD WARNING BUTTONHAZARD WARNING BUTTON
-
1362111042060 CABLE FOR SOCKET SMTCABLE FOR SOCKET SMT
-
1458011109130 FUSE 30 AFUSE 30 A
-
16000700000BH SPARE CONNECTOR BH 6-PINSSPARE CONNECTOR BH 6-PINS
-
2062511060000 DC HORNDC HORN
-
210024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
2260011092000 OIL-PRESSURE SWITCH CABLEOIL-PRESSURE SWITCH CABLE
-
2360011093045 RUBBER CABLE TIE 45MMRUBBER CABLE TIE 45MM
-
2360011093075 RUBBER CABLE TIE 75MMRUBBER CABLE TIE 75MM
-
2444011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
2444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
2662111087060 BRACKET FUSE BOXBRACKET FUSE BOX
-
2761111018000 TEMPERATURE SENSORTEMPERATURE SENSOR
-
2861111020000 STARTER INTERLOCKSTARTER INTERLOCK
-
2960111097000 GROUND CABLE 100MMGROUND CABLE 100MM
-
3058411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
310025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
