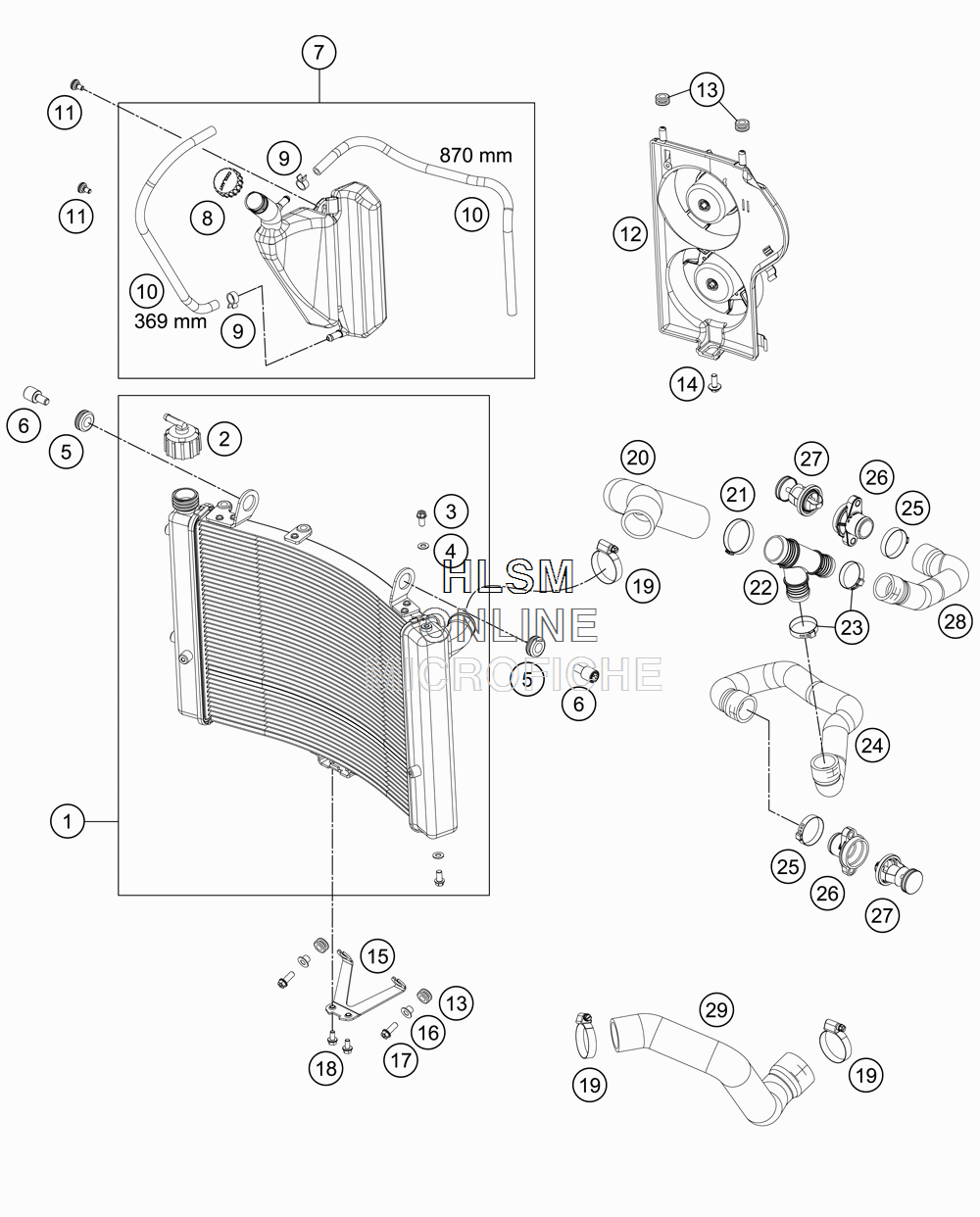

COOLING SYSTEM для Ktm 1190 ADVENTURE R - 2014 года выпуска
-
№АртикулНазвание
-
160335010000 WATER COOLERWATER COOLER
-
262535009000 RADIATOR CAP 1,4 BARRADIATOR CAP 1,4 BAR
-
30025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
460035048000 ALU-GASKET 6X10X1.5ALU-GASKET 6X10X1.5
-
541001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
669035001000 STUD BOLT M6 11X11 ISA45STUD BOLT M6 11X11 ISA45
-
760335065000 EXPANSION TANK WATEREXPANSION TANK WATER
-
860035066000 PLUG F. EXPANSION TANKPLUG F. EXPANSION TANK
-
958007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
1060035067001 HOSE 6X10 EPDM 03HOSE 6X10 EPDM 03
-
1169008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
1260335044033 FAN COVER CPL.FAN COVER CPL.
-
1331008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
140024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
1560335005000 MOUNTING PLATE COOLER BOTTOMMOUNTING PLATE COOLER BOTTOM
-
1675014010050 COLLAR BUSHING 6,1X8,1X14X8 07COLLAR BUSHING 6,1X8,1X14X8 07
-
170025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
180025050106 COLLAR SCREW M5X12 ISA30COLLAR SCREW M5X12 ISA30
-
1954305058000 HOSE CLAMP 30-45 SGTHOSE CLAMP 30-45 SGT
-
2060335026000 PREFORMED HOSEPREFORMED HOSE
-
2100050396706 VARIABLE ONE-EAR CLAMP 39,6MMVARIABLE ONE-EAR CLAMP 39,6MM
-
2260335093000 Y-JOINTY-JOINT
-
2300050331706 VARIABLE ONE-EAR CLAMP 33,1MMVARIABLE ONE-EAR CLAMP 33,1MM
-
2460335025000 PREFORMED HOSEPREFORMED HOSE
-
2500050331706 VARIABLE ONE-EAR CLAMP 33,1MMVARIABLE ONE-EAR CLAMP 33,1MM
-
2661235019100 WATER CONNECTION CPL.WATER CONNECTION CPL.
-
2761235017000 THERMOSTAT 70 DEGREETHERMOSTAT 70 DEGREE
-
2860335024000 PREFORMED HOSEPREFORMED HOSE
-
2960335027000 PREFORMED HOSEPREFORMED HOSE
