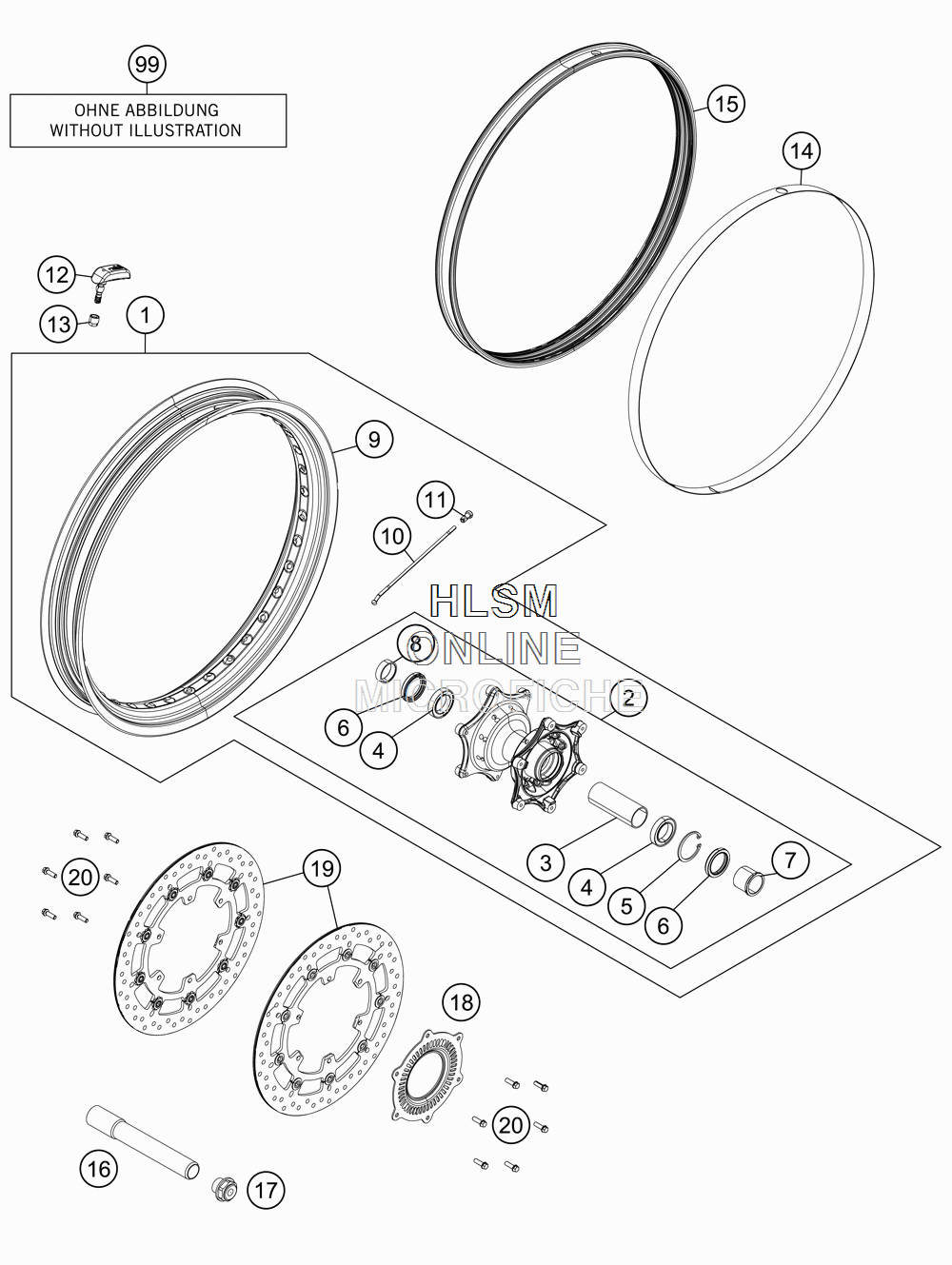

FRONT WHEEL для Ktm 1190 ADVENTURE R - 2014 года выпуска
-
№АртикулНазвание
-
16030900114430 FRONT WHEEL CPL. 2,5X21" BLACKFRONT WHEEL CPL. 2,5X21" BLACK
-
26030901004433 FRONT WHEEL HUB CPL. BLACKFRONT WHEEL HUB CPL. BLACK
-
360309011000 BUSHING SPACER TUBE FRONTBUSHING SPACER TUBE FRONT
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
760309012000 SPACER BUSH. FRONT WHEEL LEFTSPACER BUSH. FRONT WHEEL LEFT
-
860009013000 SPACER BUSH. FR. WHEEL R/SSPACER BUSH. FR. WHEEL R/S
-
96030917020030 RIM 2,5"X21" TUBLESS BLACKRIM 2,5"X21" TUBLESS BLACK
-
1060309071000 SPOKE 5/4.37/M5SPOKE 5/4.37/M5
-
1160310072100 SPOKE SIPPLE QUADRAX M5SPOKE SIPPLE QUADRAX M5
-
1260312033000 TIRE AIR PRESSURE SENSORTIRE AIR PRESSURE SENSOR
-
1360312033050 NUT AIR PRESSURE SENSORNUT AIR PRESSURE SENSOR
-
1460309073100 RIM BAND 21"RIM BAND 21"
-
1560309177000 GASKET RUBBER 2.5"X21"GASKET RUBBER 2.5"X21"
-
1660309081000 AXLE FRONTAXLE FRONT
-
1761009082000 AH SCREW M25X1,5 WS=12AH SCREW M25X1,5 WS=12
-
1860342020000 SENSOR GEAR ABSSENSOR GEAR ABS
-
196030906000030 BRAKE DISC FRONT D=320X4,5BRAKE DISC FRONT D=320X4,5
-
2059009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
9960312034044 VALVE KIT AIR PRESSURE SENSORVALVE KIT AIR PRESSURE SENSOR
