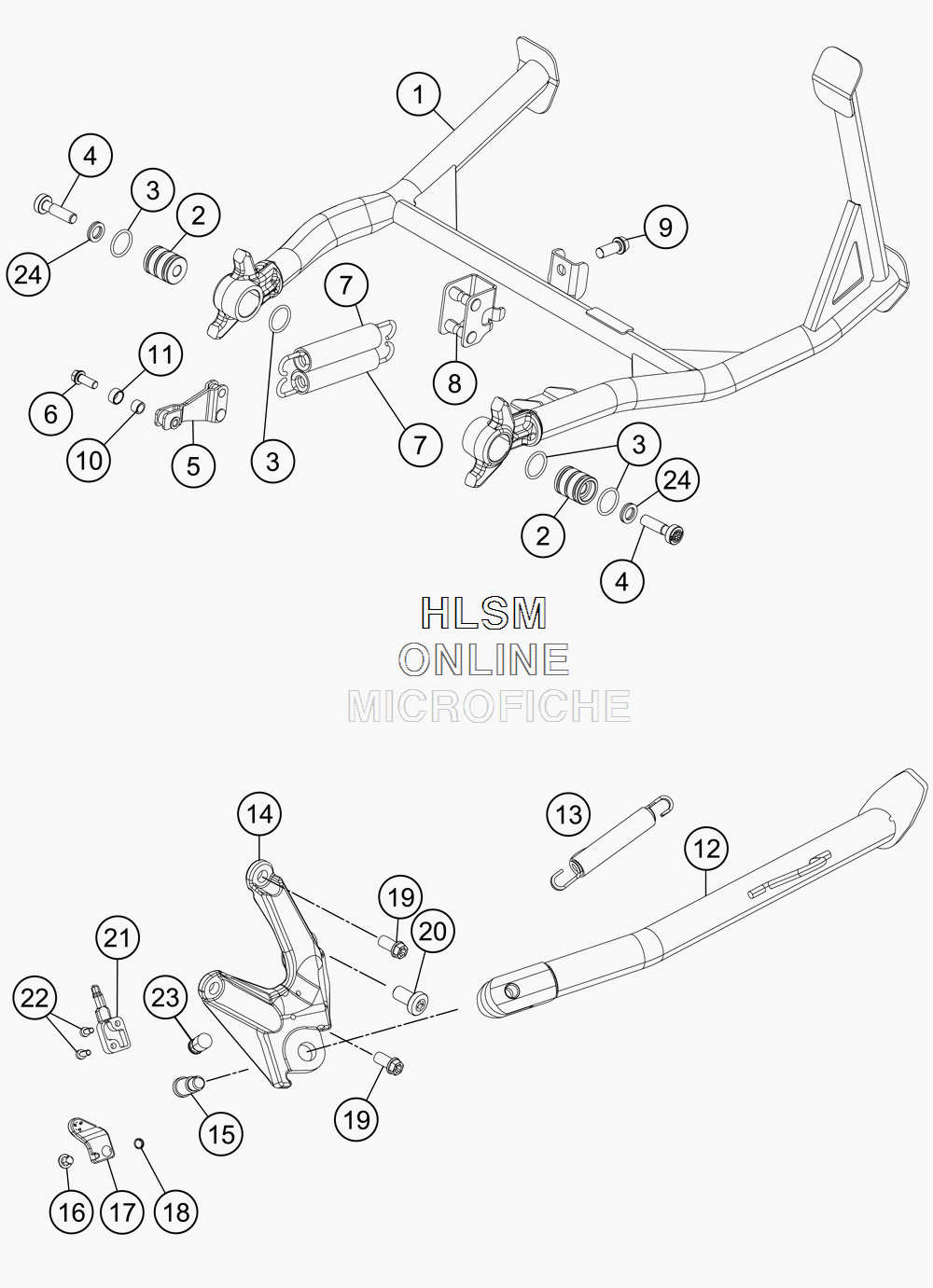

SIDE- CENTER STAND для Ktm 1190 ADVENTURE R - 2014 года выпуска
-
№АртикулНазвание
-
16030302210030 CENTER STANDCENTER STAND
-
260303022007 BUSHING SUPPORT CENTRALBUSHING SUPPORT CENTRAL
-
30770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
40035080356S SCREW M8X35 ISA45 SSSCREW M8X35 ISA45 SS
-
560303022025 SPRING SUPPORT FRONT CPL.SPRING SUPPORT FRONT CPL.
-
60025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
760303030100 SIDESTAND SPRING L=118MMSIDESTAND SPRING L=118MM
-
860303022026 SPRING SUPPORT REAR CPL.SPRING SUPPORT REAR CPL.
-
90025080206 HH COLLAR SCREW M8X20 TX40HH COLLAR SCREW M8X20 TX40
-
1060303022031 BUSHING SPRINGSUPPORT FRONTBUSHING SPRINGSUPPORT FRONT
-
1160303022032 BUSHING SPRING SUPPORT FRONTBUSHING SPRING SUPPORT FRONT
-
126030302310030 SIDE STAND CPL.SIDE STAND CPL.
-
1360303024100 SIDE STAND SPRINGSIDE STAND SPRING
-
146030302610033S SIDE STAND BRACKETSIDE STAND BRACKET
-
1562503027200 SCREW FOR SIDE STAND M10X31,2SCREW FOR SIDE STAND M10X31,2
-
160902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
1760303029050 MAGNET HOLDERMAGNET HOLDER
-
1860303029051 BUSHING MAGNET HOLDERBUSHING MAGNET HOLDER
-
190025080166 HH COLLAR SCREW M8X16 TX40HH COLLAR SCREW M8X16 TX40
-
200035100209 AH-COLLAR SCREW M10X20 ISA45AH-COLLAR SCREW M10X20 ISA45
-
2161011045000 SIDE STAND SENSORSIDE STAND SENSOR
-
220084040123 CYL.HEAD SCREW DIN84A M4X12CYL.HEAD SCREW DIN84A M4X12
-
2360303023111 RETAINING BOLTRETAINING BOLT
-
2460303022035 PAIR OF WASHERS M8PAIR OF WASHERS M8
