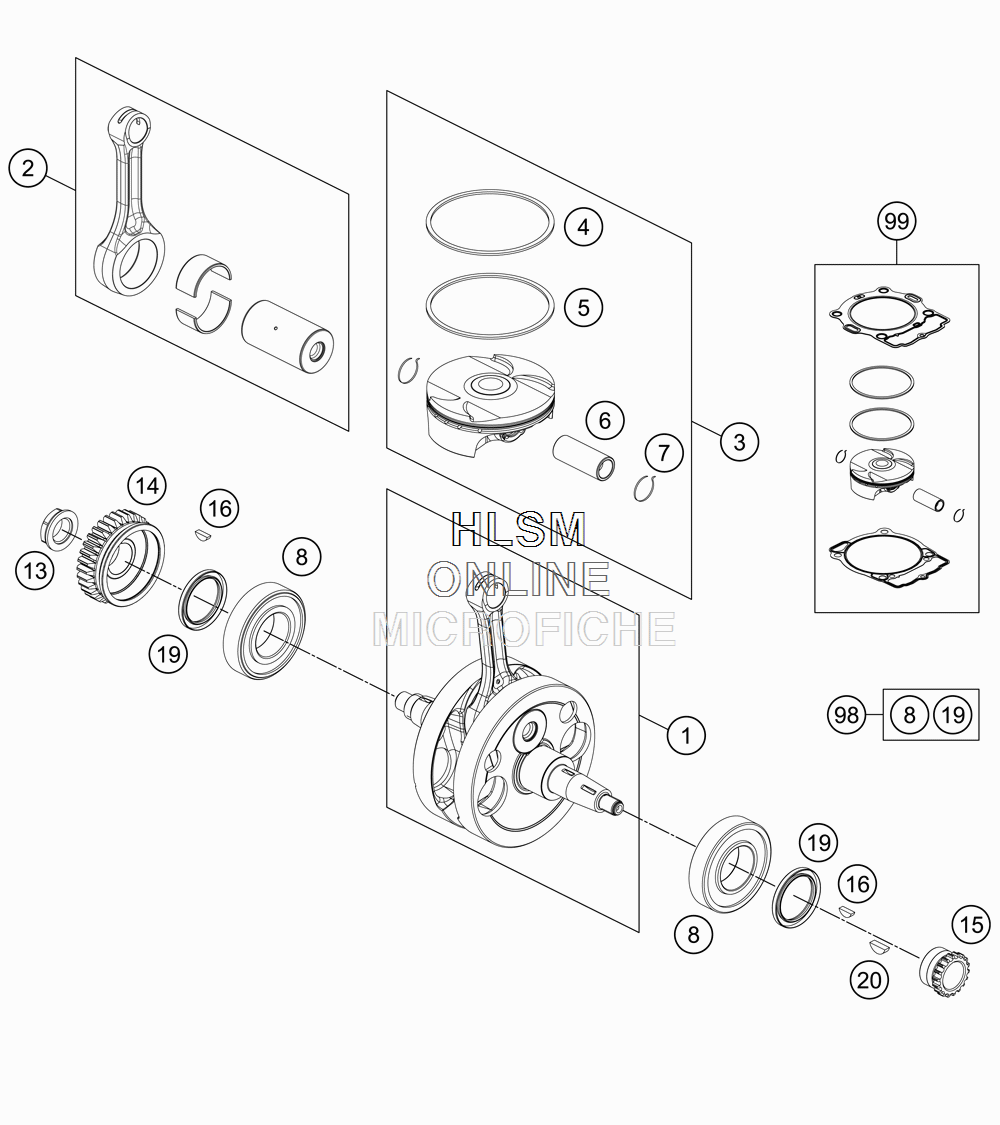

CRANKSHAFT PISTON для Ktm 500 EXC - 2014 года выпуска
-
№АртикулНазвание
-
178730218000 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
278730215044 CON ROD REP. KITCON ROD REP. KIT
-
378730007200I PISTON I D=95MMPISTON I D=95MM
-
378730007200II PISTON II D=95MMPISTON II D=95MM
-
478930030000 COMPRESSION RINGCOMPRESSION RING
-
578930032000 OIL SCRAPER RINGOIL SCRAPER RING
-
678130033000 PISTON PINPISTON PIN
-
777330074000 CIRCLIPCIRCLIP
-
80625062071 BALL BEARING 6207 TM-SX07E 39BALL BEARING 6207 TM-SX07E 39
-
1378030029200 NUT PRIMARY WHEEL M20X1,5NUT PRIMARY WHEEL M20X1,5
-
1478132000032 PRIMARY GEARPRIMARY GEAR
-
1578036014200 TIMING GEAR 18T.TIMING GEAR 18T.
-
160888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
190760354774 SHAFT SEAL RING 35X47X7 VITONSHAFT SEAL RING 35X47X7 VITON
-
200888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
9800050002308 CRANKSHAFT REP. KITCRANKSHAFT REP. KIT
-
9900050000211 PISTON KIT GR. IPISTON KIT GR. I
-
9900050000212 PISTON KIT GR. IIPISTON KIT GR. II
