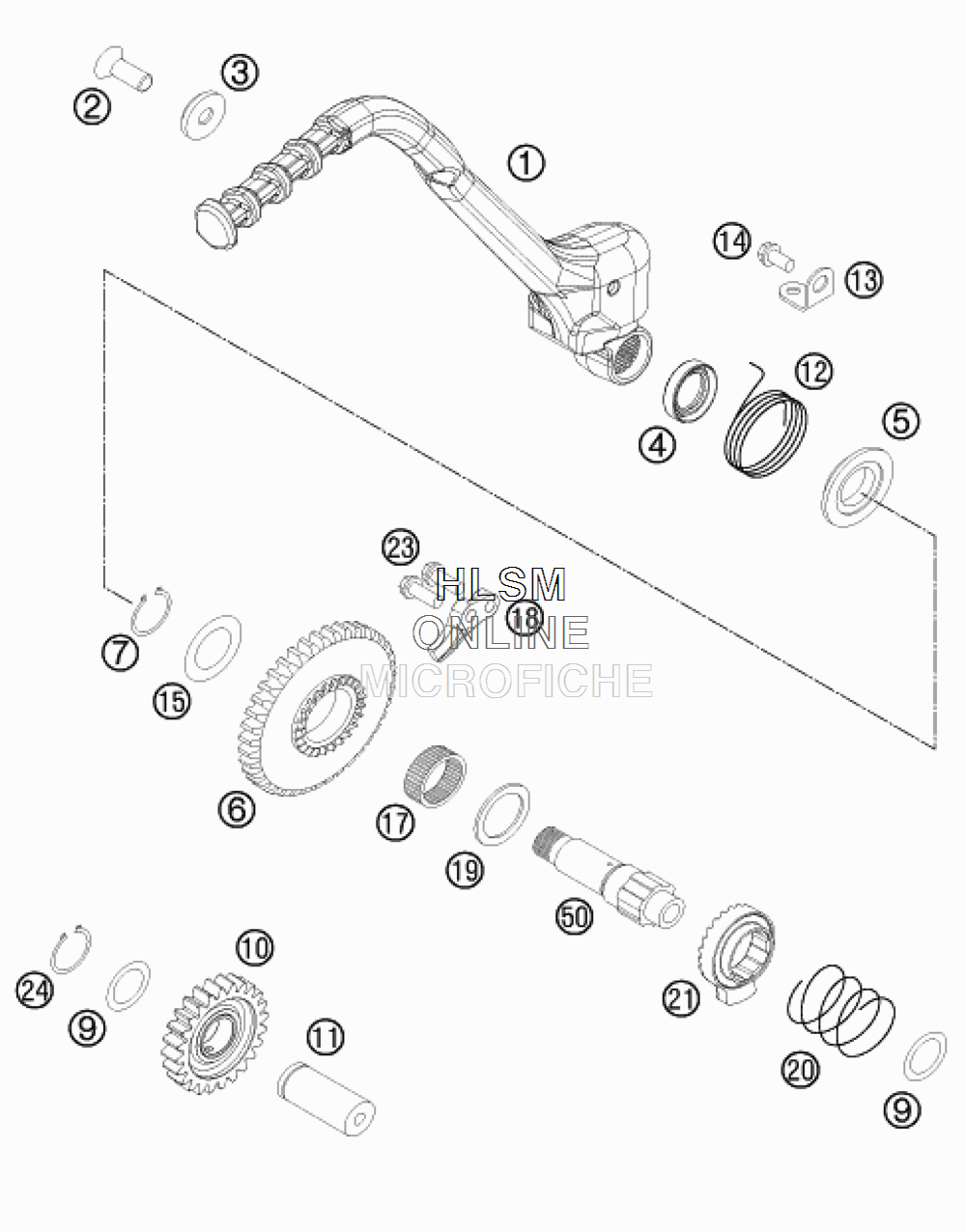

KICK STARTER для Ktm 500 EXC - 2014 года выпуска
-
№АртикулНазвание
-
177133070144 KICKSTARTER CPL.KICKSTARTER CPL.
-
20019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
354633037000 WASHER 8MM GALVANIZEDWASHER 8MM GALVANIZED
-
40760193070 SHAFT SEAL RING 19X30X7 BSHAFT SEAL RING 19X30X7 B
-
559033055000 DRIVING HUBDRIVING HUB
-
659033051039 KICKSTARTER GEAR 39-TKICKSTARTER GEAR 39-T
-
70471190120 CIRCLIP DIN0471-19X1,2CIRCLIP DIN0471-19X1,2
-
90988172405 SHIM WASHER DIN0988-17X24X0,5SHIM WASHER DIN0988-17X24X0,5
-
1078033053200 IDLER GEAR CPL.IDLER GEAR CPL.
-
1159033018000 BUSHING PINBUSHING PIN
-
1259033054000 KICKSTARTER SPRINGKICKSTARTER SPRING
-
1378033074000 SPRINGHOLDERSPRINGHOLDER
-
140912060123 AH SCREW DIN0912-M 6X12AH SCREW DIN0912-M 6X12
-
1559033080000 SHIM 20X32X1SHIM 20X32X1
-
170405222610 NEEDLE BEARING K 22X26X10 ANEEDLE BEARING K 22X26X10 A
-
1859033069000 BUMP PARTBUMP PART
-
1958033031000 STOP DISK 22,2 X 30 X 1,5STOP DISK 22,2 X 30 X 1,5
-
2058033028000 RATCHET GEAR SPRING 1,2 MMRATCHET GEAR SPRING 1,2 MM
-
2178033052000 RATCHET GEAR KICK STARTERRATCHET GEAR KICK STARTER
-
230025060206S HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
240471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
5059033050100 KICKSTARTER SHAFTKICKSTARTER SHAFT
