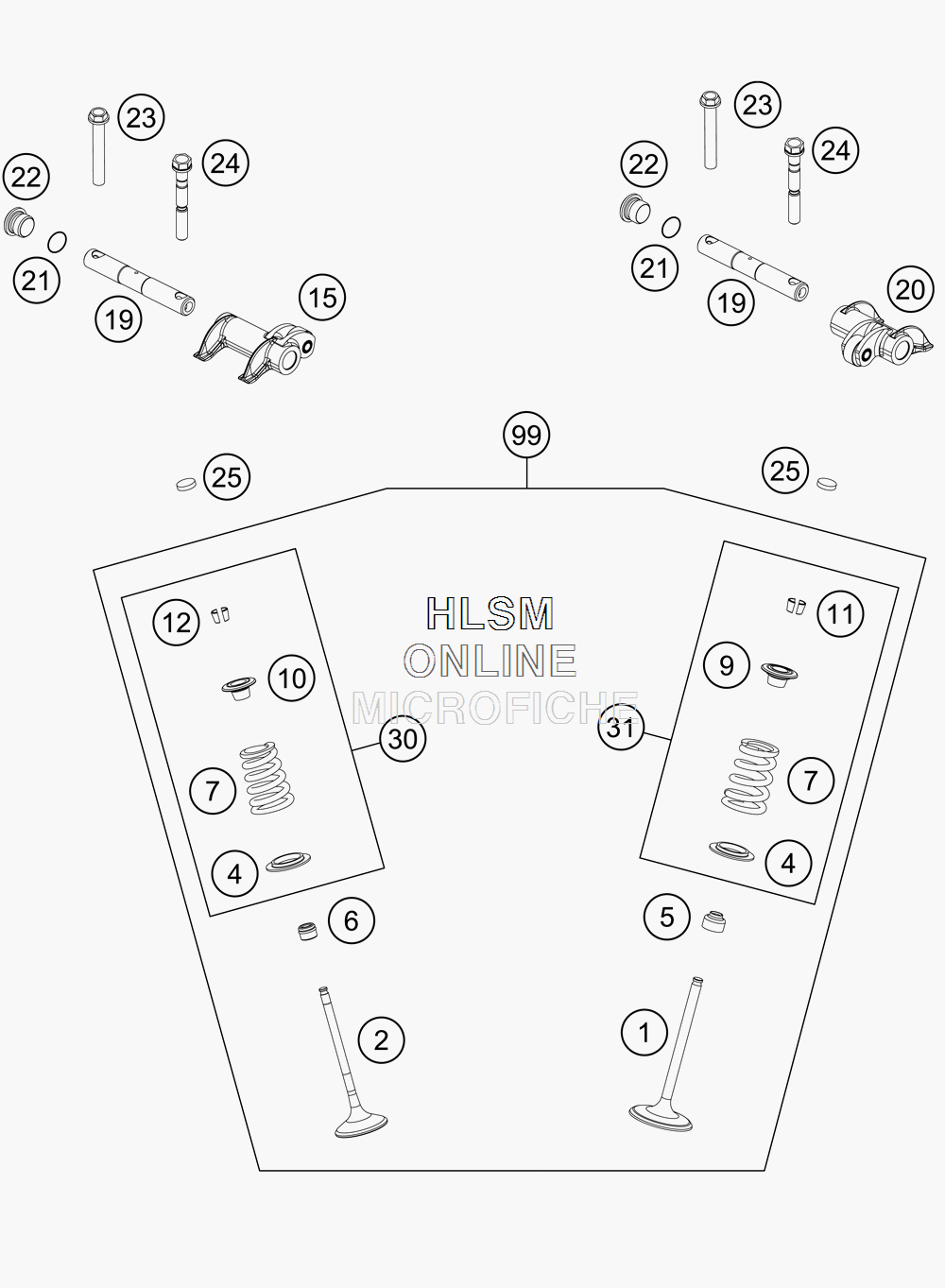

VALVE DRIVE для Ktm 500 EXC - 2014 года выпуска
-
№АртикулНазвание
-
178936030100 INTAKE VALVEINTAKE VALVE
-
278036031000 EXHAUST VALVEEXHAUST VALVE
-
478936036000 VALVE SPRING HOLDERVALVE SPRING HOLDER
-
559036027000 VALVE-STEM SEALING RACINGVALVE-STEM SEALING RACING
-
677036027000 VALVE-STEM SEALINGVALVE-STEM SEALING
-
778936028000 VALVE SPRINGVALVE SPRING
-
878036029000 VALVE SPRING EXHAUSTVALVE SPRING EXHAUST
-
978936032000 VALVE SPRING RETAINERVALVE SPRING RETAINER
-
1078136032000 VALVE SPRING SUPPORTVALVE SPRING SUPPORT
-
1177336033100 VALVE COLLETVALVE COLLET
-
1277036033000 VALVE COLLETVALVE COLLET
-
1578036061044 ROCKER ARM EXHAUST CPL.ROCKER ARM EXHAUST CPL.
-
1978036056200 ROCKER ARM SHAFTROCKER ARM SHAFT
-
2078036060044 ROCKER ARM INTAKE CPL.ROCKER ARM INTAKE CPL.
-
210770110015 O-RING 1,5X11 SILICONO-RING 1,5X11 SILICON
-
2278036081000 HOLDING BOLT M14X1,5HOLDING BOLT M14X1,5
-
2377036080000 SPECIAL SCREW M7X40 WS10SPECIAL SCREW M7X40 WS10
-
2478036080000 FIT BOLT M7X1X55FIT BOLT M7X1X55
-
2560036035200 SHIM D=10/2,00SHIM D=10/2,00
-
2560036035205 SHIM D=10/2,05SHIM D=10/2,05
-
2560036035210 SHIM D=10/2,10SHIM D=10/2,10
-
2560036035215 SHIM D=10/2,15SHIM D=10/2,15
-
2560036035220 SHIM D=10/2,20SHIM D=10/2,20
-
2560036035225 SHIM D=10/2,25SHIM D=10/2,25
-
2560036035230 SHIM D=10/2,30SHIM D=10/2,30
-
2560036035235 SHIM D=10/2,35SHIM D=10/2,35
-
2560036035240 SHIM D=10/2,40SHIM D=10/2,40
-
2560036035245 SHIM D=10/2,45SHIM D=10/2,45
-
2560036035250 SHIM D=10/2,50SHIM D=10/2,50
-
2560036035255 SHIM D=10/2,55SHIM D=10/2,55
-
2560036035260 SHIM D=10/2,60SHIM D=10/2,60
-
2560036035265 SHIM D=10/2,65SHIM D=10/2,65
-
2560036035270 SHIM D=10/2,70SHIM D=10/2,70
-
2560036035275 SHIM D=10/2,75SHIM D=10/2,75
-
2560036035280 SHIM D=10/2,80SHIM D=10/2,80
-
2560036035285 SHIM D=10/2,85SHIM D=10/2,85
-
2560036035290 SHIM D=10/2,90SHIM D=10/2,90
-
2560036035295 SHIM D=10/2,95SHIM D=10/2,95
-
2560036035300 SHIM D=10/3,00SHIM D=10/3,00
-
2560036035305 SHIM D=10/3,05SHIM D=10/3,05
-
2560036035310 SHIM D=10/3,10SHIM D=10/3,10
-
2560036035315 SHIM D=10/3,15SHIM D=10/3,15
-
2560036035320 SHIM D=10/3,20SHIM D=10/3,20
-
2560036035330 SHIM D=10/3,3SHIM D=10/3,3
-
3078136029044 VALVE SPRING KIT EXHAUSTVALVE SPRING KIT EXHAUST
-
3178136028044 VALVE SPRING KIT INTAKEVALVE SPRING KIT INTAKE
-
9978136030010 VALVE KITVALVE KIT
