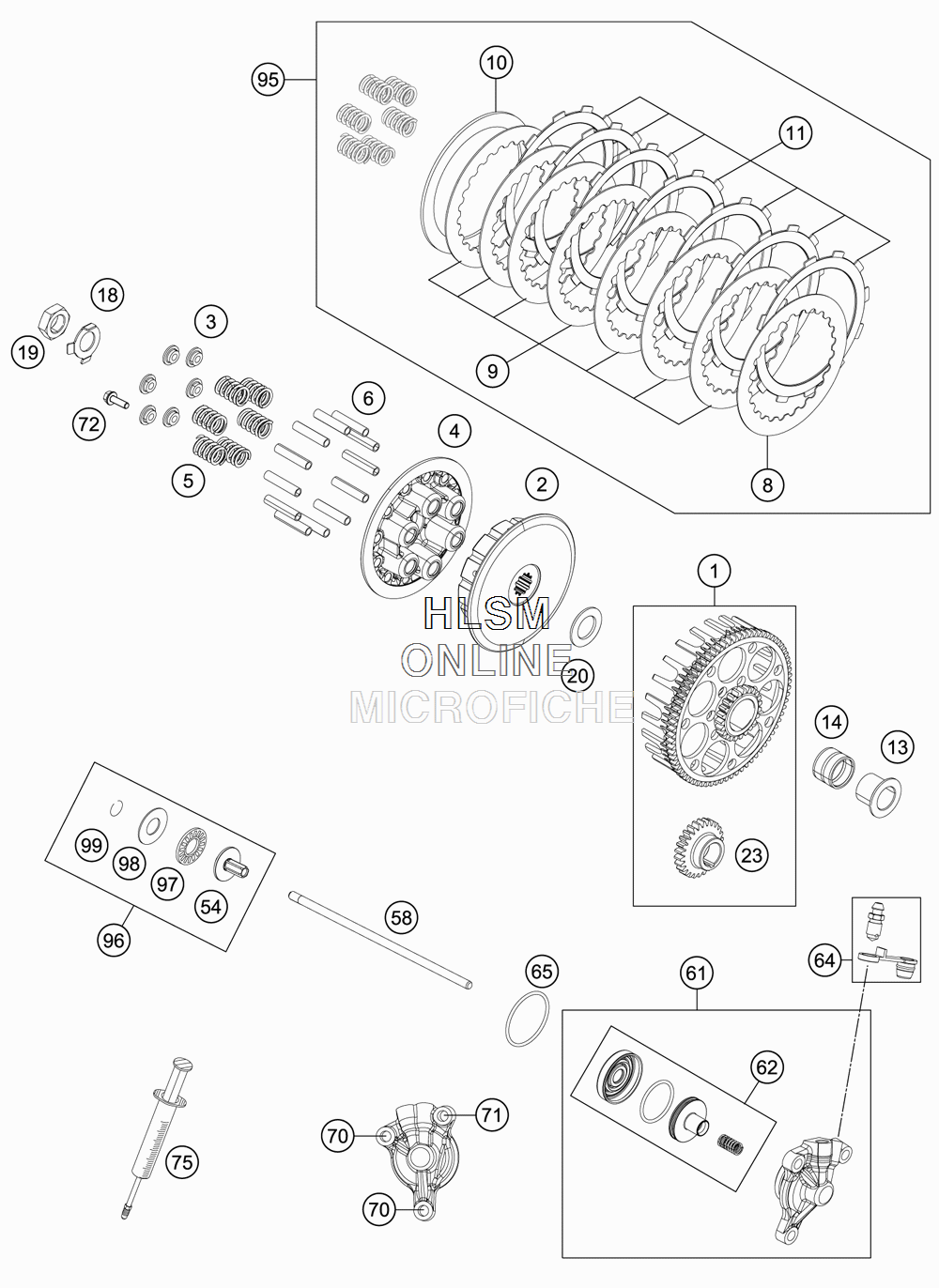

CLUTCH для Ktm 250 FREERIDE - 2015 года выпуска
-
№АртикулНазвание
-
154832024044 CLUTCH CAGE INCL. PRIM. WHEELCLUTCH CAGE INCL. PRIM. WHEEL
-
277232002000 INNER CLUTCH HUBINNER CLUTCH HUB
-
359032006050 SPRING RET AINER 6,2X12X18X5,2SPRING RET AINER 6,2X12X18X5,2
-
477232003000 PRESSURE PLATEPRESSURE PLATE
-
577032005100 CLUTCH SPRINGCLUTCH SPRING
-
677232004000 DRIVING SLEEVE D=7,95 L=38DRIVING SLEEVE D=7,95 L=38
-
859032010100 INTERMEDIA TE DISC 1MMINTERMEDIA TE DISC 1MM
-
959032010200 INTERMEDIA TE DISC 1,4MMINTERMEDIA TE DISC 1,4MM
-
1072532010000 ALU DISC 3MMALU DISC 3MM
-
1154832011100 LINING DISC 1,95 MMLINING DISC 1,95 MM
-
1354832015100 INNER RING 21.65X26X24.5INNER RING 21.65X26X24.5
-
1456532095000 NEEDLE BEARING K26X30X22ZW .KSENEEDLE BEARING K26X30X22ZW .KSE
-
1878132018000 T AB WASHERT AB WASHER
-
190936181505 HEXAGON NUT DIN0936-M18X1 ,5 RINGHEXAGON NUT DIN0936-M18X1 ,5 RING
-
2054832009000 WASHER 21.7 X 37 X 2.5WASHER 21.7 X 37 X 2.5
-
2354832000026 PRIMAR Y GEAR 26TPRIMAR Y GEAR 26T
-
5447032054000 PRESSURE PLATEPRESSURE PLATE
-
5854832054100 PUSH RODPUSH ROD
-
6147132061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
6247132066000 PISTON CPL.PISTON CPL.
-
6447132064000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
650770031018 O-RING 31,47X1,78O-RING 31,47X1,78
-
700025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
710025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
720025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
9572532010010 CLUTCH KITCLUTCH KIT
-
9678032057044 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
-
9754637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
9854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
990993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
