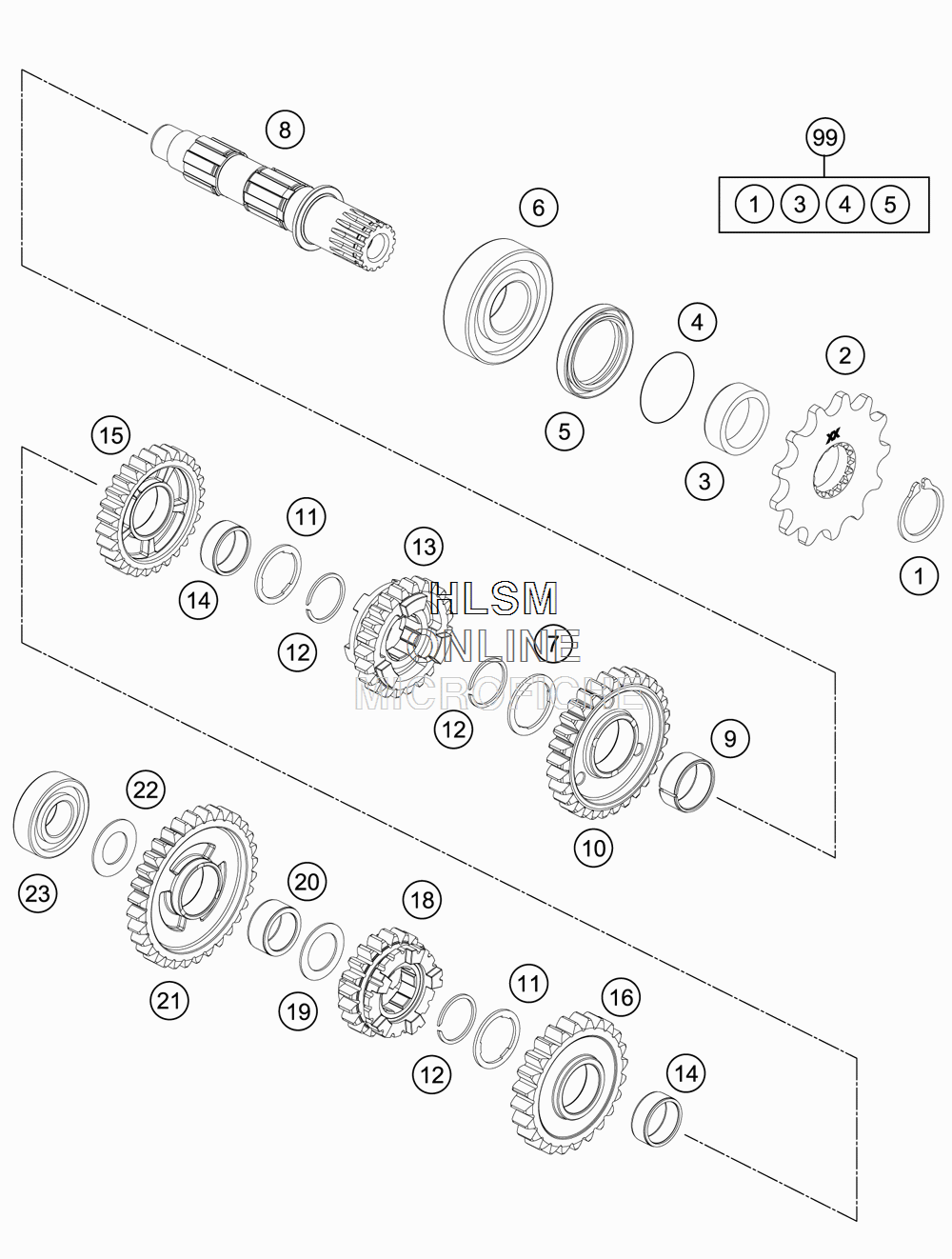

TRANSMISSION - COUNTERSHAFT для Ktm 250 FREERIDE - 2015 года выпуска

№

Артикул

Название
1

52033096000 LOCK RING DIN0471-25X1 ,64SD

LOCK RING DIN0471-25X1 ,64SD

1 110 ₽
2

50033029012 FRONT SPROCKET 12-T

FRONT SPROCKET 12-T

7 100 ₽
2

50033029013 FRONT SPROCKET 13-T

FRONT SPROCKET 13-T

8 110 ₽
2

50033029014 FRONT SPROCKET 14-T

FRONT SPROCKET 14-T

8 110 ₽
3

54833032011 SPACER SLEEVE DRIVE END

SPACER SLEEVE DRIVE END

4 700 ₽
4

0770250020 O-RING 25,00X2,00 NBR 70

O-RING 25,00X2,00 NBR 70

560 ₽
5

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
6

54833025000 BALL BEARING TM-SC05C20C4 NTN

BALL BEARING TM-SC05C20C4 NTN

17 290 ₽
7

77733044000 STOP DISC 24X32X1,5

STOP DISC 24X32X1,5

930 ₽
8

72533010000 COUNTER SHAFT CPL.

COUNTER SHAFT CPL.

29 030 ₽
9

0405242812 NEDDLE BEAR. K24X28X11,9 DIV .

NEDDLE BEAR. K24X28X11,9 DIV .

1 670 ₽
10

77733112000 IDLER GEAR 2ND G. T=30

IDLER GEAR 2ND G. T=30

19 690 ₽
11

77733043000 STOP DISC 23,4X31X1,5

STOP DISC 23,4X31X1,5

640 ₽
12

0417024000 CIRCLIP WS24

CIRCLIP WS24

320 ₽
13

77733115100 SLIDING GEAR 5.G.,Z=23

SLIDING GEAR 5.G.,Z=23

25 290 ₽
14

0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED

NEEDLE BEAR.K 22X26X10 DIVIDED

3 130 ₽
15

77733114100 IDLER GEAR 4.G. Z=28

IDLER GEAR 4.G. Z=28

17 440 ₽
16

77733113100 IDLER GEAR 3.G. Z=24

IDLER GEAR 3.G. Z=24

17 610 ₽
18

72033016000 SLIDING GEAR 6TH GEAR, 20T

SLIDING GEAR 6TH GEAR, 20T

26 580 ₽
19

54833080000 STOP DISC 20,2X30X1

STOP DISC 20,2X30X1

640 ₽
20

0405202612 NEEDLE BEARING K 20X26X12

NEEDLE BEARING K 20X26X12

2 950 ₽
21

77733011000 IDLER GEAR 1ST G. T=32

IDLER GEAR 1ST G. T=32

19 920 ₽
22

56033030000 STOP DISC 17,2X30X1

STOP DISC 17,2X30X1

970 ₽
23

0625062035 BALL BEARING 6203 JR2 C3

BALL BEARING 6203 JR2 C3

3 890 ₽
25

54833025000 BALL BEARING TM-SC05C20C4 NTN

BALL BEARING TM-SC05C20C4 NTN

17 290 ₽
99

00050000940 COUNTER SHAFT REP .KIT 2 STROKE

COUNTER SHAFT REP .KIT 2 STROKE

5 780 ₽
