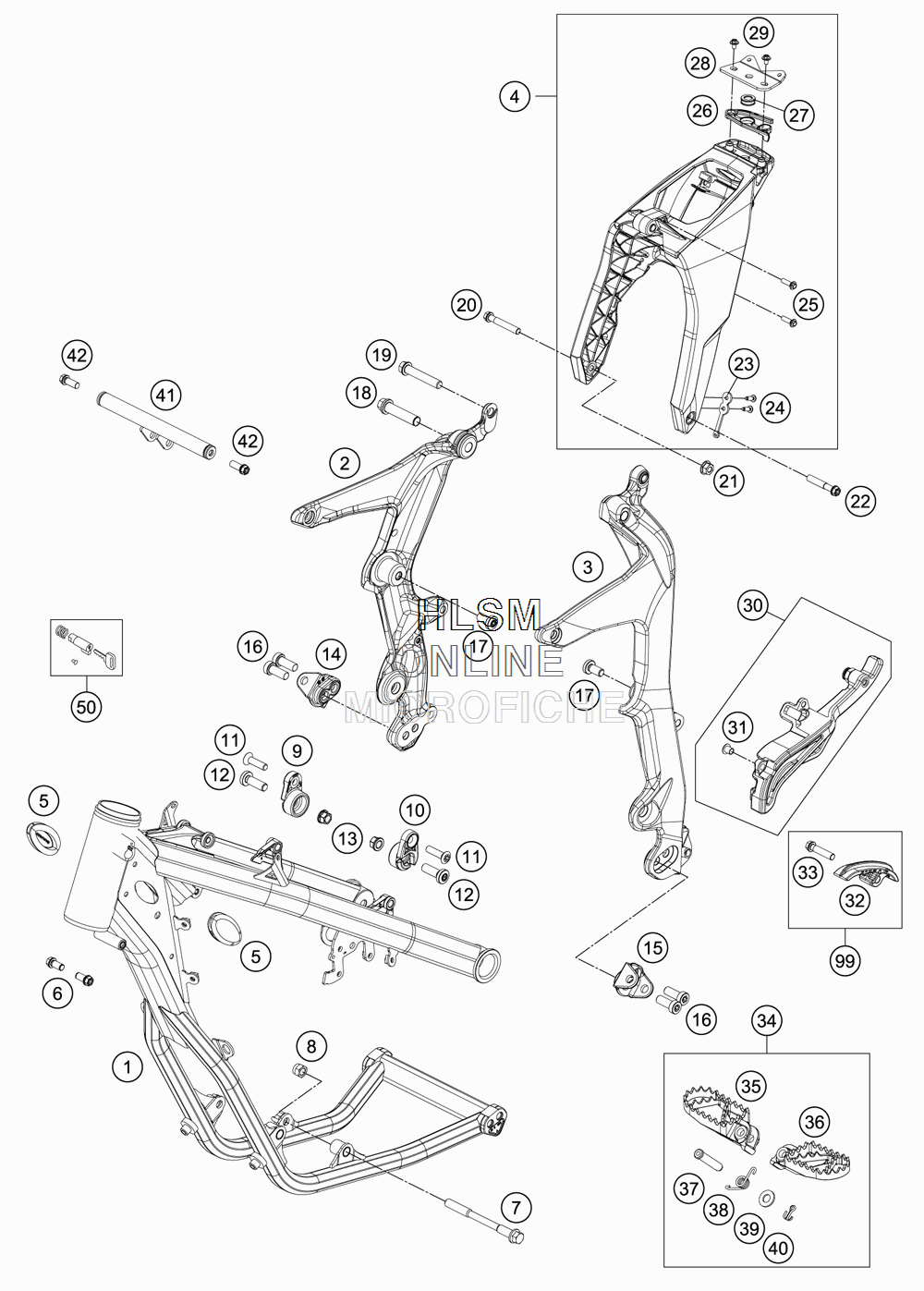

FRAME для Ktm 250 FREERIDE - 2015 года выпуска
-
№АртикулНазвание
-
17250300100004 FRAME "725N1"FRAME "725N1"
-
270003001152 CONNECT ION BRACKET R/S 14CONNECT ION BRACKET R/S 14
-
370003101051 CONNECT ION BRACKET L/S VMTCONNECT ION BRACKET L/S VMT
-
470003002033 SUBFRAME CPL.SUBFRAME CPL.
-
558404041000 CLOSING COVER SWINGARM SMCLOSING COVER SWINGARM SM
-
60025080166S HH COLLAR SCREW M8X16 TX40HH COLLAR SCREW M8X16 TX40
-
759003013000 ENGINEBRAC. SCREW M10X123 WS=13ENGINEBRAC. SCREW M10X123 WS=13
-
854310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
972007015000 FUEL TANK CARRIER R/SFUEL TANK CARRIER R/S
-
1072007014000 FUEL TANK CARRIER L/SFUEL TANK CARRIER L/S
-
110019080306S COUNTER -SUNK SCREW ISA45 M8X30COUNTER -SUNK SCREW ISA45 M8X30
-
120035100309S AH-COLLAR SCREW M10X30 ISA45AH-COLLAR SCREW M10X30 ISA45
-
1354630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
1470003039100 FOOTREST MOUNTING R/SFOOTREST MOUNTING R/S
-
1570003038100 FOOTREST MOUNTING L/SFOOTREST MOUNTING L/S
-
160032100256S AH-COLLAR SCREW M10X25 ISA45AH-COLLAR SCREW M10X25 ISA45
-
170035100209 AH-COLLAR SCREW M10X20 ISA45AH-COLLAR SCREW M10X20 ISA45
-
1870004016000 MONOSHOCK SCREW TOP M12X80MONOSHOCK SCREW TOP M12X80
-
1969004094000 HH COLLAR SCREW M10X56 WS13HH COLLAR SCREW M10X56 WS13
-
200025080506 HH COLLAR SCREW M8X50 TX40HH COLLAR SCREW M8X50 TX40
-
2106923080003 HEXAGON NUT DIN EN1661 M8 SW13HEXAGON NUT DIN EN1661 M8 SW13
-
220025080456 HH COLLAR SCREW M8X45 TX40HH COLLAR SCREW M8X45 TX40
-
2370003024050 SIDE STAND SPRING PLA TE 12SIDE STAND SPRING PLA TE 12
-
240017060205 SCREW FOR PLASTIC K60X20 SW6SCREW FOR PLASTIC K60X20 SW6
-
250016070253 PLASTIC SCREW K7X25 PT1447PLASTIC SCREW K7X25 PT1447
-
2670007039000 SEAT LOCKING MECHANISMSEAT LOCKING MECHANISM
-
2770007039060 BUSHING QUICK LOCKBUSHING QUICK LOCK
-
2870007039050 BRACKET QUICK LOCKBRACKET QUICK LOCK
-
290024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
3072503096000 SPROCKET COVER CPL.SPROCKET COVER CPL.
-
3145239060050 COLLAR BUSHING 6,3X8X13X9,5COLLAR BUSHING 6,3X8X13X9,5
-
3270003053000 CHAIN SLIDING PIECE BELOW CPL.CHAIN SLIDING PIECE BELOW CPL.
-
330025080356 HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
3478003040033 FOOTREST L/S + R/S CPL.FOOTREST L/S + R/S CPL.
-
3578003041050 FOOTREST R/SFOOTREST R/S
-
3678003040050 FOOTREST L/SFOOTREST L/S
-
3754803044000 PIN FOR FOOT PED 51.5X9.8 MMPIN FOR FOOT PED 51.5X9.8 MM
-
3854603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
390125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
400094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
4172503013000 ENGINE BRACKETENGINE BRACKET
-
420025080206S HH COLLAR SCREW M8X20 ISA40HH COLLAR SCREW M8X20 ISA40
-
5078003035000 STEERING HEAD LOCKSTEERING HEAD LOCK
-
9970003053010 CHAIN SLIDING KIT BELOWCHAIN SLIDING KIT BELOW
